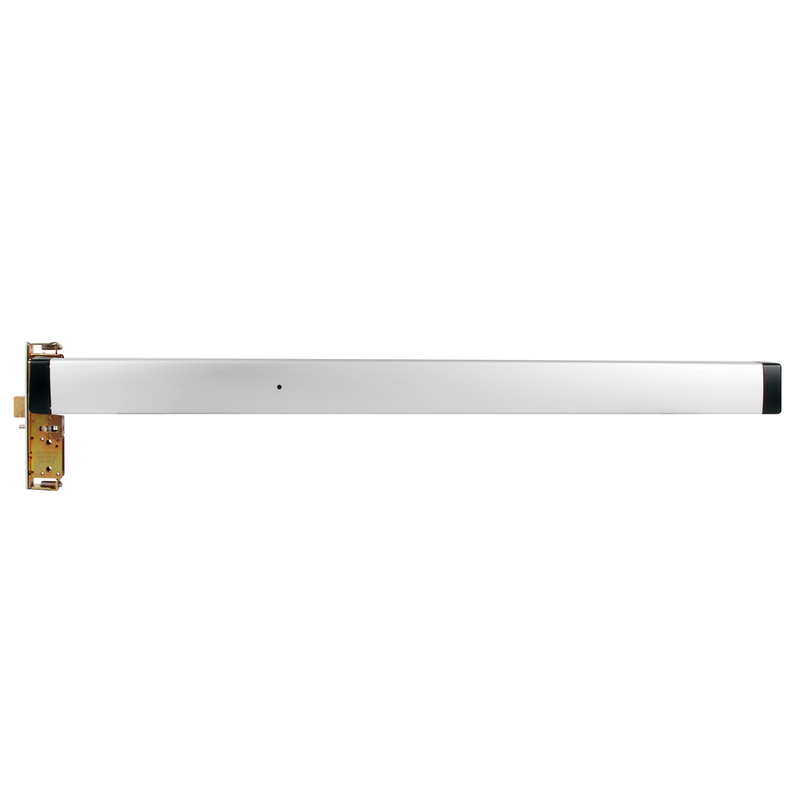

Adams Rite 8414-38148 Mortise Exit Device

Adams Rite 8414-38148 Mortise Exit Device offers a reliable and aesthetically pleasing solution for aluminum applications. Designed for narrow stile aluminum doors, this life safety exit device features a 48-inch length and a left-hand reverse (LHR) configuration, ensuring versatility across various installations. The clean and unobtrusive design not only enhances the aesthetic appeal but also facilitates easy installation. A standout feature is the patented "Starwheel" bolt mechanism, which securely interlocks the door to the frame upon closure. This innovative design ensures enhanced security, as the interlocking noseguard works in tandem with the deadlocking slide to lock the starwheel bolt in place. When the pushbar is pressed, the door unlocks seamlessly. Constructed from durable extruded aluminum, the pushbar is clad or anodized in a range of finishes, including a sleek satin aluminum clear anodized finish. The device accommodates standard door heights up to 8 feet and thicknesses of 1-3/4 inches, making it suitable for various commercial applications. Additionally, the Adams Rite 8414-38148 features standard self-tapping screws for installation and an optional cylinder for enhanced functionality. With a five-year limited warranty, this exit device promises durability and peace of mind.

Mortise Exit Device

Life Safety Narrow Stile Mortise Exit Device, For Aluminum Applications, 48 In., LHR, Satin Aluminum Clear Anodized

Mortise Exit Device, 1-1/8" BacksetNarrow Stile Aluminum Doors, LHR, 48", Aluminum

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited.
