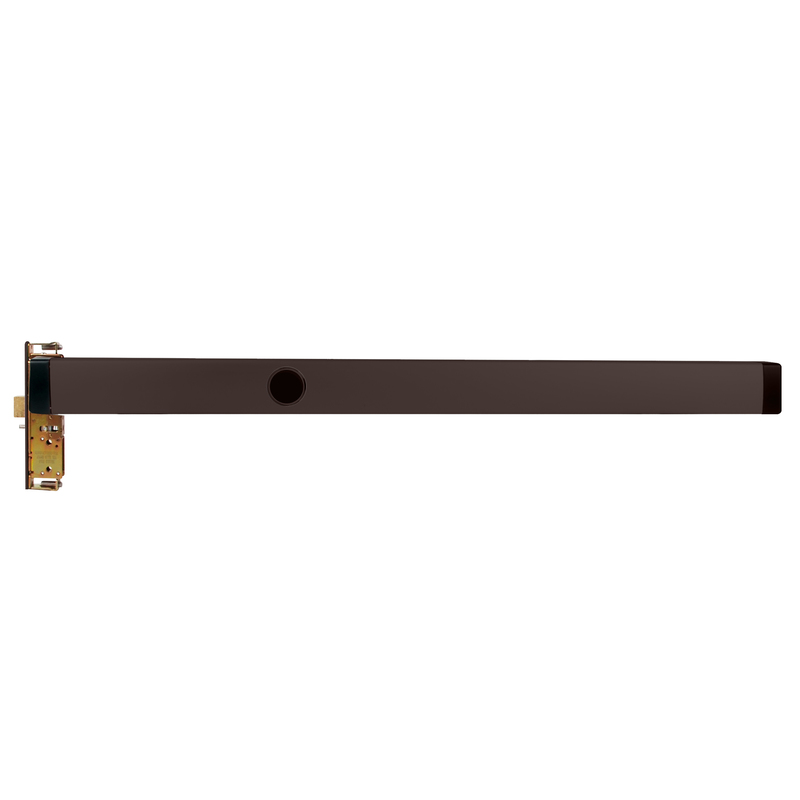

Adams Rite 8420C-48236 Mortise Exit Device

Adams Rite 8420C-48236 Mortise Exit Device combines exceptional safety and functionality in a sleek, narrow stile design, ideal for aluminum applications. This Grade 1 Life Safety exit device features a cylinder dogging mechanism, providing reliable operation for high-traffic areas. With a standard 36-inch length and a left-hand reverse (LHR) configuration, it fits seamlessly into various entry points. The patented "Starwheel" bolt enhances security by interlocking the door to the frame, ensuring robust deadlocking when closed. The pushbar, crafted from durable extruded aluminum, is available in a dark bronze anodized finish, offering both aesthetic appeal and resilience. Installation is straightforward, making it accessible for both professionals and knowledgeable homeowners. Designed for doors with a thickness of 1-3/4 inches, the device suits standard applications while accommodating doors up to 8 feet in height. Optional tall door kits are available for taller installations. The non-handed design and field-reversible lever entry trim allow for flexible use. Additionally, this exit device is compatible with standard rim cylinders, making it easy to integrate into existing security systems. With a five-year limited warranty, the Adams Rite 8420C-48236 ensures peace of mind while enhancing the safety and functionality of your building's access points.

Mortise Exit Device

Grade 1 Life Safety Narrow Stile Mortise Exit Device, Cylinder Dogging, For Aluminum Applications, 36 In., LHR, 1-1/2 In. Backset, Dark Bronze Anodized Aluminum Finish

The 8400 Series is designed for narrow stile aluminum applications that require a life-safety exit device with mortise locking solution.

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited.
