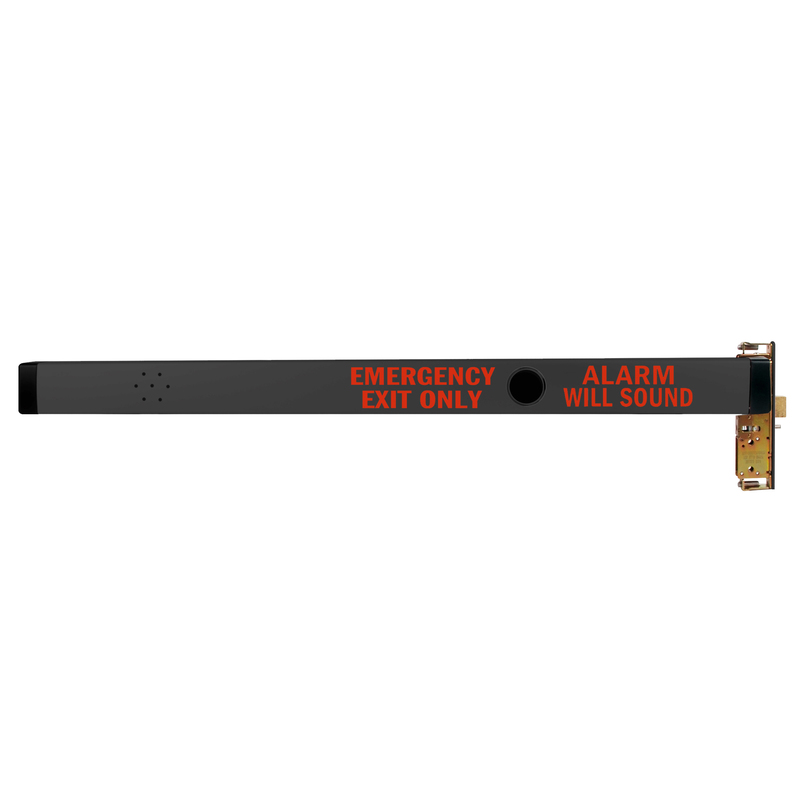

Adams Rite 8430A-37336B Mortise Exit Device

Adams Rite 8430A-37336B Mortise Exit Device offers a blend of security and convenience, designed specifically for narrow stile aluminum doors. This battery-operated exit device features a sleek black anodized aluminum finish, ensuring durability while maintaining a clean, unobtrusive appearance. With a 36-inch length and right-hand reversible handing, it easily adapts to various installation needs. The patented "Starwheel" bolt system is a standout feature, interlocking the door to the frame to enhance security. When the door closes, the deadlocking slide engages, locking the starwheel bolt into place. The device is straightforward to install, making it an ideal choice for both commercial and residential applications. Designed to accommodate standard door thicknesses of 1-3/4 inches, it fits doors up to 8 feet tall with adjustable bar heights from 30 to 44 inches. The device is also compatible with optional cylinder dogging for added versatility. For enhanced safety, it includes a built-in battery-operated alarm, ensuring peace of mind. With a five-year limited warranty and the ability to be shipped via UPS, the Adams Rite 8430A-37336B Mortise Exit Device is a reliable and practical solution for any building professional or knowledgeable homeowner looking for quality door hardware.

Mortise Exit Device

Life Safety Narrow Stile Mortise Exit Device, Battery Operated Alarm, For Aluminum Applications, 36 In., RHR, Black Anodized Aluminum

Mortise Exit Device, 1-1/8" BacksetNarrow Stile Aluminum Doors, RHR, 36", Battery Operated Alarm, Black

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited.
