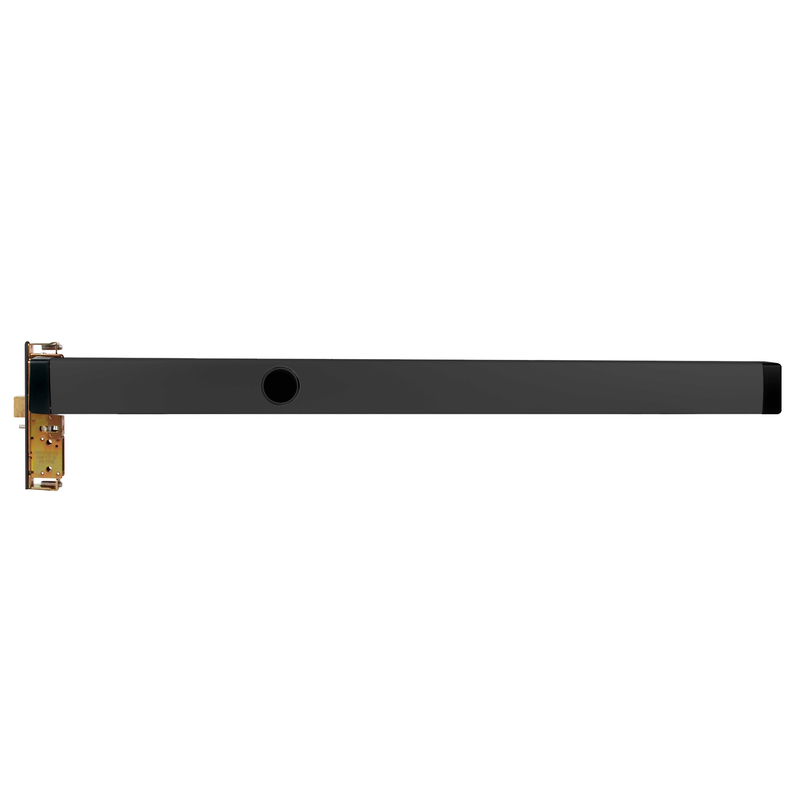

Adams Rite 8430C-28342 Mortise Exit Device

Adams Rite 8430C-28342 Mortise Exit Device is designed with life safety in mind, perfect for narrow stile aluminum applications. Featuring a cylinder dogging mechanism, this 42-inch device is crafted from black anodized aluminum, ensuring durability while maintaining a clean, unobtrusive aesthetic. The patented "Starwheel" bolt interlocks the door to the frame, enhancing security and providing a reliable locking mechanism. When the door closes, the interlocking noseguard and starwheel bolt engage with the strike, while the deadlocking slide secures the bolt in place. With a simple push on the bar, the deadlocking slide retracts, allowing smooth exit. Installation is straightforward, thanks to its non-handed design and reversible lever entry trim. The pushbar is adjustable for standard door heights ranging from 30 to 44 inches, fitting doors up to 8 feet tall, with a Tall Door Kit available for taller doors. This device accommodates door thicknesses of 1-3/4 inches to 2-1/4 inches, making it versatile for various settings. Adams Rite's 8430C-28342 Mortise Exit Device not only meets commercial needs but also offers a five-year limited warranty, ensuring peace of mind for building professionals and homeowners alike.

Mortise Exit Device

Life Safety Narrow Stile Mortise Exit Device, Cylinder Dogging, For Aluminum Applications, 42 In., LHR, Black Anodized Aluminum

Mortise Exit Device, 31/32" Backset, Narrow Stile Aluminum Doors, LHR, 42", Cylinder Dogging, Black

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited.
