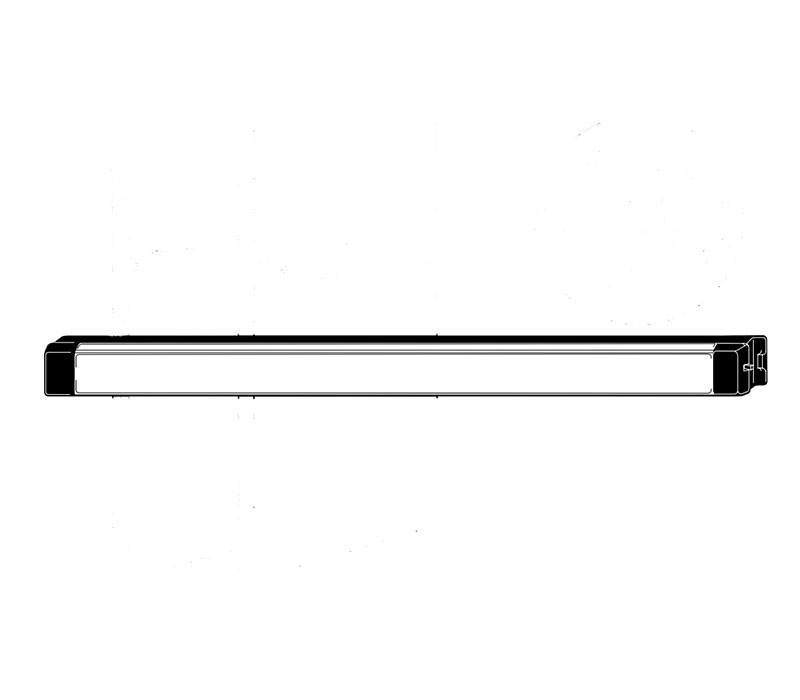

Adams Rite 8700EL-30-US32D-24 Rim Exit Device

Adams Rite 8700EL-30-US32D-24 Rim Exit Device offers a reliable solution for ensuring safety and ease of access in commercial environments. Designed for both hollow metal and wood doors, this 30-inch exit device features electric latch retraction, making it an ideal choice for high-traffic areas that require quick and secure egress. Its clean, unobtrusive design in satin stainless steel not only enhances aesthetics but also ensures durability. Key features include a patented "Starwheel" bolt that interlocks the door to the frame, providing exceptional security. When the door closes, the interlocking noseguard and starwheel bolt engage with the strike, while the deadlocking slide secures the mechanism until the pushbar is activated. The standard pushbar adjusts from 30 to 44 inches, accommodating various door heights up to 8 feet, making it versatile for numerous applications. This non-handed device is easy to install and can be customized with optional cylinder dogging for enhanced functionality. It suits doors with a thickness of 1-3/4 inches to 2-1/4 inches and requires a minimum stile width of 3-3/4 inches. The Adams Rite 8700EL-30 is backed by a five-year limited warranty, ensuring confidence in your investment for safety and accessibility.

Rim Exit Device

Life Safety Rim Exit Device, Electric Latch Retraction, Wide Stile Pushpad, For Hollow Metal and Wood Applications, 30 In., Satin Stainless Steel

Rim Exit Device, Hollow Metal or Wood Doors, 30", Electric Latch Retraction, 24V, Satin Stainless Steel

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited.
