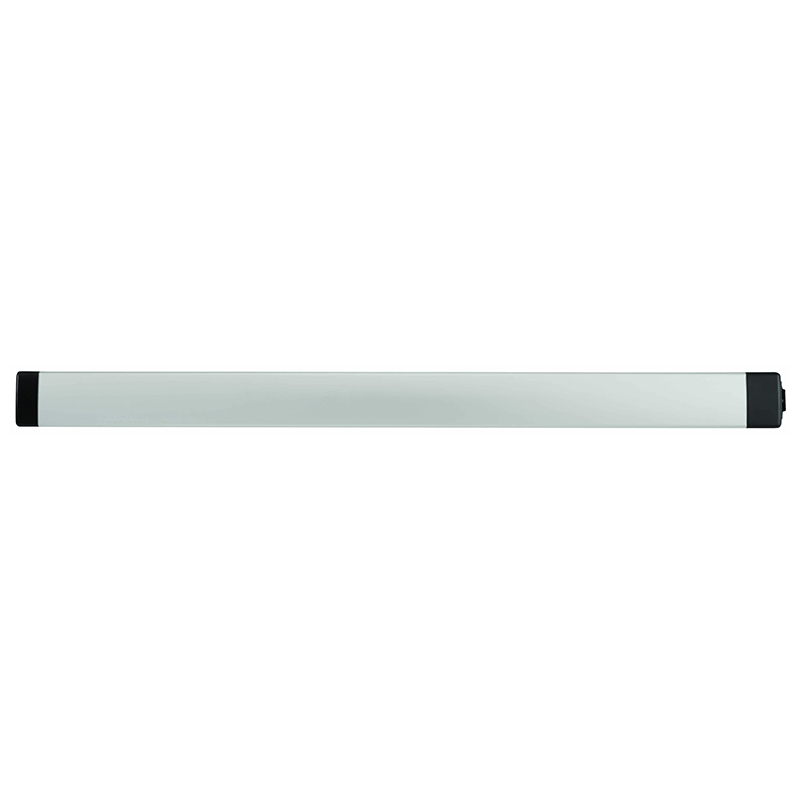

Adams Rite 8800MLR-42-US32D Rim Exit Device

Adams Rite 8800MLR-42-US32D Rim Exit Device offers a robust and reliable solution for your exit hardware needs. Designed with a Grade 1 rating, this narrow stile rim exit device features motor latch retraction and electric dogging, making it an ideal choice for aluminum applications. With a sleek satin stainless steel finish, the 42" device integrates seamlessly into modern architectural designs. One of the standout features of this exit device is the patented "Starwheel" bolt, which interlocks the door to the frame, enhancing security when closed. The device is non-handed, allowing for flexible installation, while the adjustable pushbar accommodates openings ranging from 30" to 48" and is suitable for doors up to 8 ft in height. Should you require additional height, the Tall Door Kit is available separately. Constructed from durable extruded aluminum, the pushbar is designed to withstand heavy use. The device supports standard rim cylinders, and optional cylinder dogging is available, providing versatility in locking options. Additionally, installation is straightforward, making it accessible for both professionals and knowledgeable homeowners. With a five-year limited warranty, the Adams Rite 8800MLR-42-US32D is a reliable choice for enhancing safety and accessibility in commercial spaces.

Rim Exit Device

Grade 1 Narrow Stile Rim Exit Device, Motor Latch Retraction, Electric Dogging, For Aluminum Applications, 42", Satin Stainless Steel Finish

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited.
