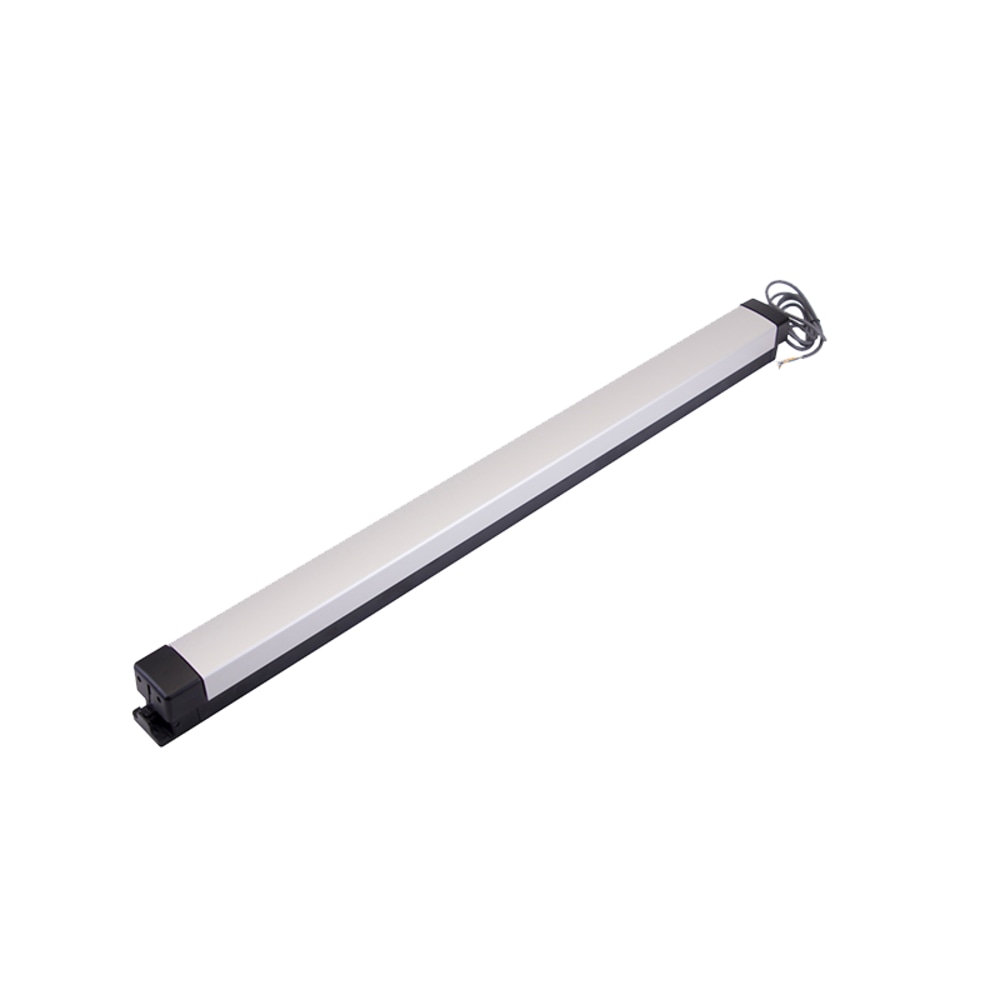

Adams Rite 8801EL-30-12 Rim Exit Device offers a seamless solution for narrow stile aluminum doors, featuring electric latch retraction for enhanced security and convenience. Designed specifically for aluminum applications, this 30-inch exit device is finished in a satin aluminum clear anodized coating, ensuring both aesthetic appeal and durability. One of its standout features is the patented "Starwheel" bolt, which interlocks the door to the frame for superior protection. The innovative design includes an interlocking noseguard that secures the starwheel bolt when the door closes, providing reliable deadlocking. When the pushbar is activated, the deadlocking slide retracts, allowing smooth access. Installation is straightforward, thanks to its non-handed configuration and field-reversible lever entry trim. The pushbar length can be adjusted to fit various door sizes, accommodating openings from 30 to 48 inches. It also fits standard door heights up to 8 feet, with options for taller doors available through separate kits. Constructed from extruded aluminum, this exit device is built to withstand the rigors of commercial use. With a five-year limited warranty and compatibility with standard rim cylinders, the Adams Rite 8801EL-30-12 is an excellent choice for commercial applications requiring secure and efficient exit solutions.

Rim Exit Device

Narrow Stile Rim Exit Device, Electric Latch Retraction, For Aluminum Applications, 30 In., Satin Aluminum Clear Anodized

Rim Exit Device, Narrow Stile Aluminum Doors, 30", Electric Latch Retraction, 12V, Aluminum

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
• Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
• Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
• Warranty: Five year limited.
