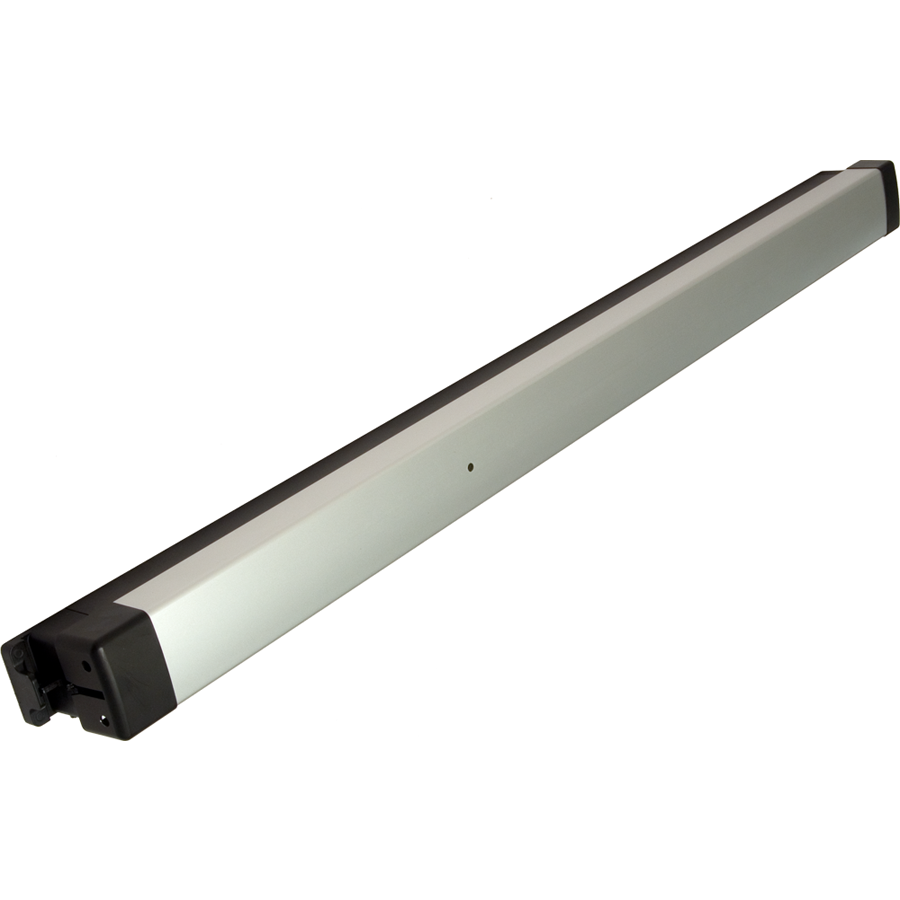

Adams Rite 8801EL-36-12V Narrow Rim Electric Exit Device, Solenoid Latch, Fits Aluminum Doors, 36in

Adams Rite Manufacturing 8801EL-36-12V Narrow Rim Exit Device is a robust solution tailored for narrow stile aluminum, hollow metal, and wood doors. This electric exit device features solenoid latch retraction, enhancing accessibility while maintaining security. Designed for single doors or pairs with a mullion, it ensures a seamless transition for foot traffic in commercial and institutional settings. Constructed from durable extruded aluminum, the push bar is available in a clear anodized finish (628/US28), ensuring longevity and a polished appearance. Its non-handed design allows for versatile installation, accommodating door thicknesses of 1-3/4" to 2-1/4". With a standard length of 36 inches, the push bar can be field cut for custom fitment, providing flexibility for various door sizes. The 8801EL also includes a standard dogging option for easy operation and can be equipped with electric dogging for added convenience. The device supports a range of standard rim cylinders and features both standard and narrow strikes for precise alignment within 4" jambs. For enhanced security and improved traffic flow, consider pairing with the 3890 Aluminum Mullion (available separately). The Adams Rite 8801EL-36-12V is the ideal choice for professionals seeking reliable exit solutions without compromising on style or functionality.

Narrow Rim Exit Device, Electric (Solenoid) Latch Retraction (EL), Star Wheel Latch, Fits Narrow and Wide Stile Aluminum Doors, 36in, 628/US28 Aluminum Clear Anodized

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless

Resources

• Cut Sheet
