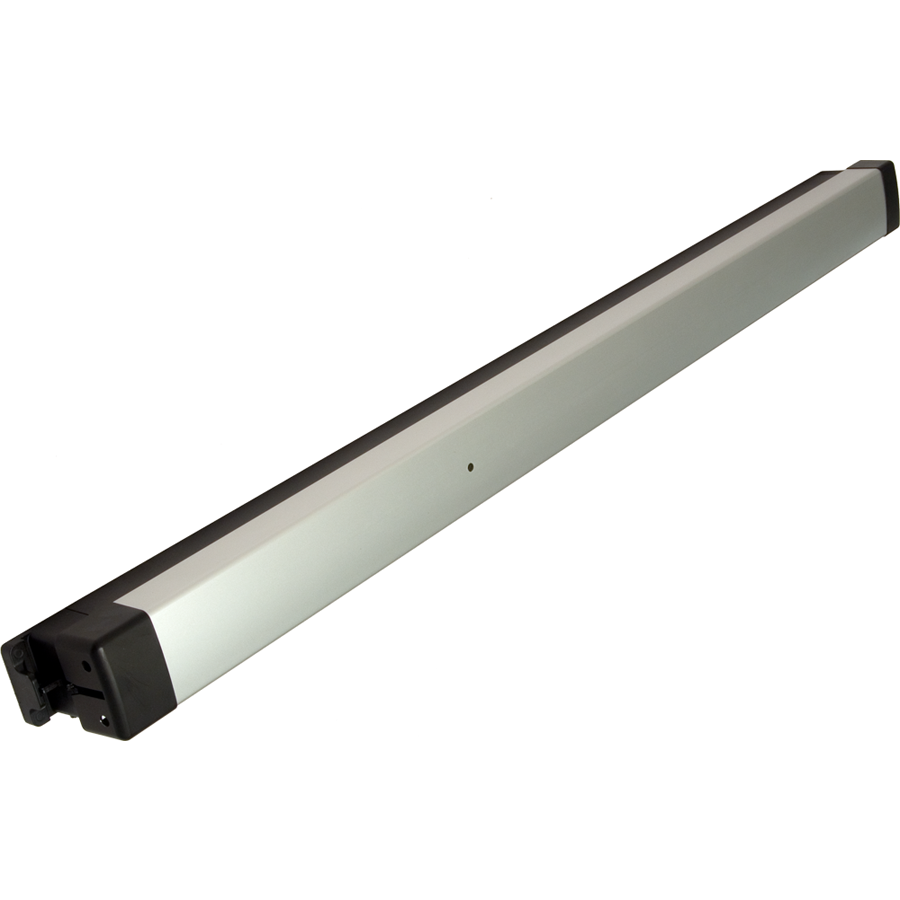

Adams Rite 8801EL-42-24V Narrow Rim Electric Exit Device, Solenoid Latch, Fits Aluminum Doors, 42in

Adams Rite Manufacturing 8801EL-42-24V Narrow Rim Exit Device is engineered for exceptional performance in narrow stile aluminum doors, offering a seamless solution for both commercial and residential applications. This electric exit device features solenoid latch retraction, ensuring quick and easy egress while maintaining high security. Designed to fit standard door widths of 42 inches, the 8801EL accommodates a variety of door thicknesses, from 1-3/4 inches to 2-1/4 inches. Its robust construction includes an extruded aluminum push bar, clad or anodized in a choice of finishes, including clear anodized for a sleek look. The device is non-handed, making it versatile for any installation. The star wheel latch provides an interlocking mechanism that enhances security, while standard hex key dogging allows for manual control of the latch. Electric dogging options are also available for added convenience. Installation is straightforward with standard machine screws and included strikes for centering doors in a 4-inch jamb. Compatible with standard rim and mortise cylinders, the 8801EL can be customized for various entry trim functions. For paired doors, consider the optional removable mullion, which enhances traffic flow and security. Choose the Adams Rite 8801EL-42-24V for a reliable, efficient exit solution tailored to your needs.

Narrow Rim Exit Device, Electric (Solenoid) Latch Retraction (EL), Star Wheel Latch, Fits Narrow and Wide Stile Aluminum Doors, 42in, 628/US28 Aluminum Clear Anodized

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless
