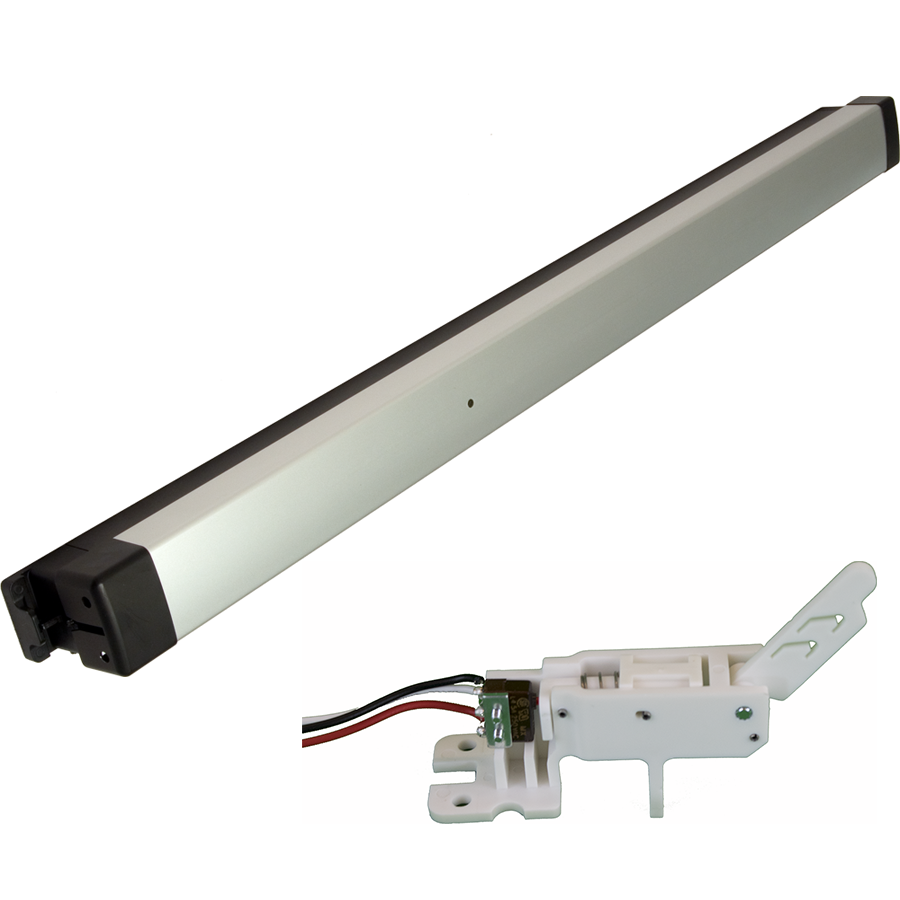

Adams Rite 8801EL-M-36-12V Narrow Rim Electric Exit Device, Solenoid Latch, Fits Aluminum Doors, 36in

Adams Rite Manufacturing 8801EL-M-36-12V KIT is a robust narrow rim exit device designed for high-security applications. Ideal for narrow stile aluminum, hollow metal, and wood doors, this exit device incorporates an electric latch retraction (EL) feature, enhancing access control in emergency situations. With a 36-inch length, it suits various door widths, ensuring versatility and ease of installation. Constructed from extruded aluminum with a clear anodized finish (628/US28), the push bar is both durable and aesthetically pleasing. Its non-handed design allows for flexible installation on single or paired doors, with a minimum stile width of 2 inches. The device accommodates door thicknesses from 1-3/4 inches up to 2-1/4 inches, making it suitable for a wide range of door types. The 8801EL-M features standard hex key dogging or optional cylinder dogging, providing additional security measures when necessary. It also includes a single monitor switch (M) for door and lock status monitoring. For enhanced functionality, the device can be paired with a removable mullion for paired doors, maintaining optimal traffic flow without compromising security. With its combination of electric features and sturdy construction, the Adams Rite Manufacturing 8801EL-M-36-12V KIT is an excellent choice for professionals seeking reliability and efficiency in exit solutions.

KIT - Narrow Rim Exit Device, Electric (Solenoid) Latch Retraction (EL), Single Monitor Switch (M), Fits Narrow and Wide Stile Aluminum Doors, 36in, 628/US28 Aluminum Clear Anodized

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless

Resources

• Cut Sheet
