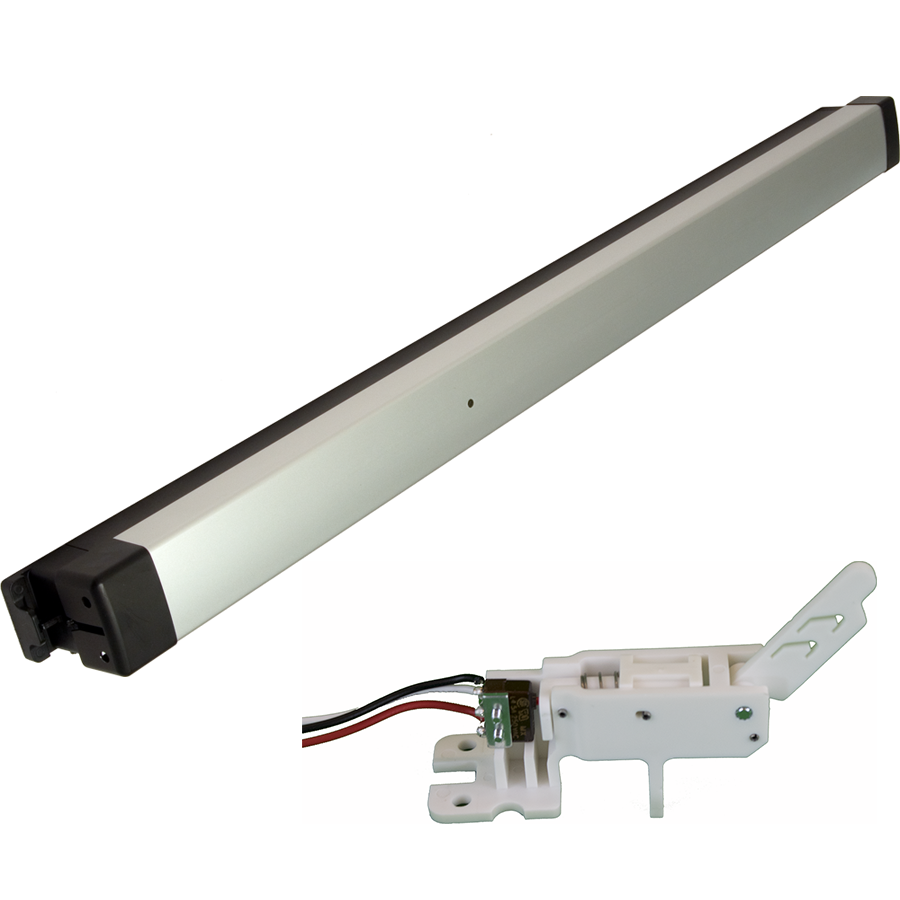

Adams Rite 8801EL-M-36-24V Narrow Rim Electric Exit Device, Solenoid Latch, Fits Aluminum Doors, 36in

Adams Rite Manufacturing 8801EL-M-36-24V KIT is a cutting-edge narrow rim exit device designed for exceptional security and ease of use in aluminum, hollow metal, and wood applications. This electric device features solenoid latch retraction (EL) and a single monitor switch (M), making it ideal for both single doors and pairs with a mullion. With a push bar made from extruded aluminum, it offers durability and a sleek profile, clad in a clear anodized finish that complements various architectural styles. This non-handed device accommodates door thicknesses from 1-3/4" to 2-1/4" and is designed for openings of 36 inches, fitting a minimum stile width of 2 inches. The standard dogging can be operated with a hex key or an optional cylinder, while electric dogging enhances convenience. The device also supports standard 1-5/32" diameter rim cylinders, allowing flexible lock configurations. Included are both standard and narrow strikes for centering doors in a 4" jamb, ensuring smooth operation. The removable mullion allows for effective traffic flow and increased security when using rim exit devices on paired doors. With its robust construction and versatile features, the Adams Rite Manufacturing 8801EL-M-36-24V KIT is an excellent choice for professionals seeking reliability and performance in exit hardware.

KIT - Narrow Rim Exit Device, Electric (Solenoid) Latch Retraction (EL), Single Monitor Switch (M), Fits Narrow and Wide Stile Aluminum Doors, 36in, 628/US28 Aluminum Clear Anodized

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless

Resources

• Cut Sheet
