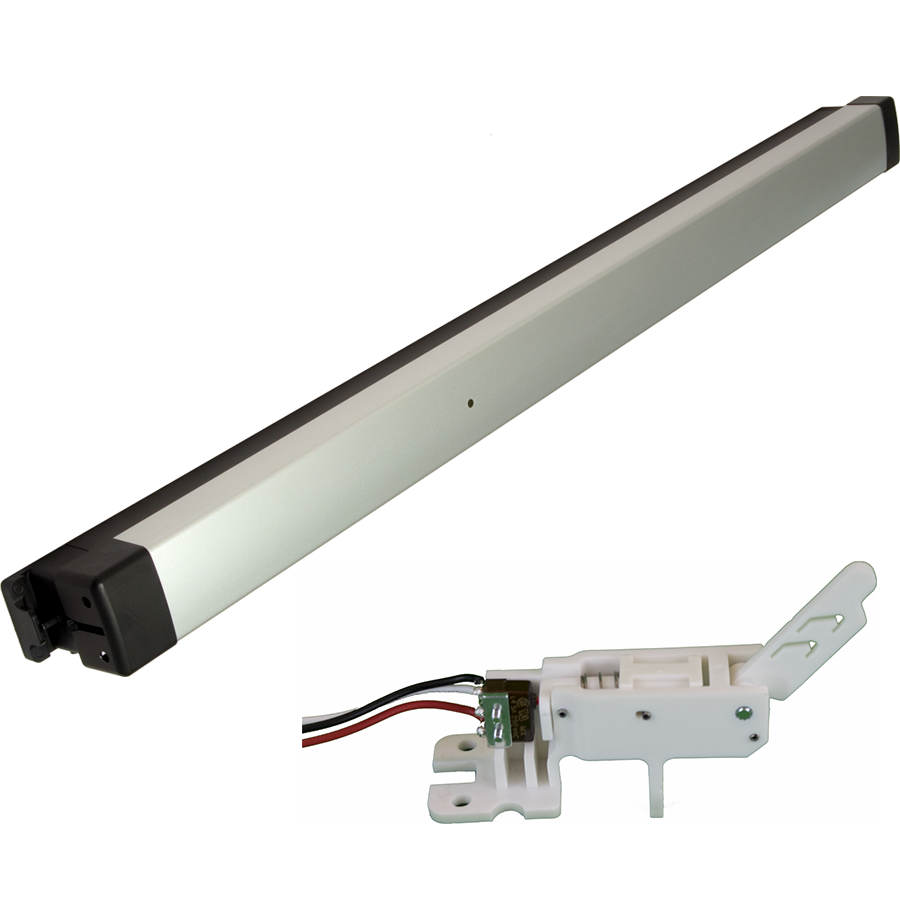

Adams Rite 8801EL-M-42-24V Narrow Rim Electric Exit Device, Solenoid Latch, Fits Aluminum Doors, 42in

Adams Rite Manufacturing 8801EL-M-42-24V KIT is a robust narrow rim exit device designed to meet the demands of modern security while maintaining ease of access. This electric latch retraction (EL) device features a single monitor switch (M) and is ideal for both narrow and wide stile aluminum doors. With a length of 42 inches and finished in a clear anodized aluminum (628/US28), this exit device combines functionality and aesthetic appeal. Constructed from extruded aluminum, the push bar is available in various finishes, ensuring a seamless integration into your building’s design. The device is non-handed, allowing for versatile installation on single doors or pairs with a mullion. It accommodates door thicknesses of 1-3/4" to 2-1/4" and requires a minimum stile width of 2". The 8801EL-M also offers standard hex key dogging, with options for electric dogging, enhancing security while enabling quick exit. It is compatible with standard rim and mortise cylinders, providing flexibility in locking options. Additionally, the included standard and narrow strikes facilitate proper door alignment. Engineered for durability and reliability, the Adams Rite 8801EL-M is an essential component for any commercial or institutional setting, ensuring safety and compliance with exit requirements.

KIT - Narrow Rim Exit Device, Electric (Solenoid) Latch Retraction (EL), Single Monitor Switch (M), Fits Narrow and Wide Stile Aluminum Doors, 42in, 628/US28 Aluminum Clear Anodized

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless
