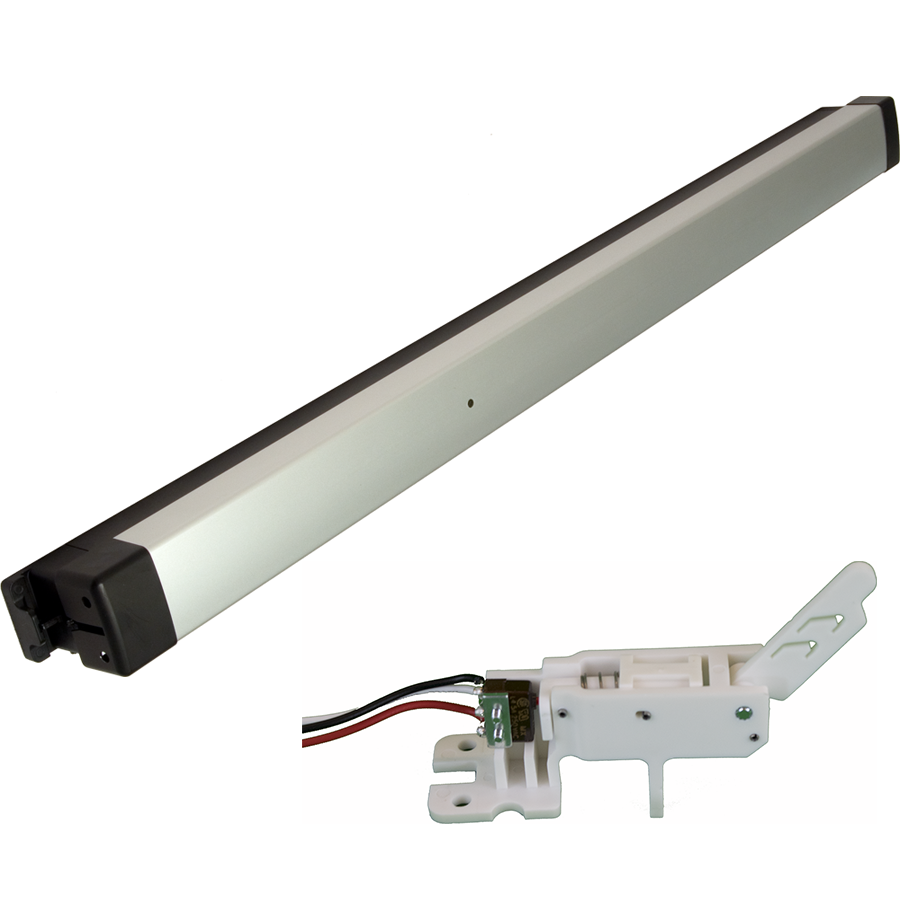

Adams Rite 8801EL-M-48-24V Narrow Rim Electric Exit Device, Solenoid Latch, Fits Aluminum Doors, 48in

Adams Rite Manufacturing 8801EL-M-48-24V KIT is a sophisticated Narrow Rim Exit Device designed for maximum security and convenience in commercial environments. This electric latch retraction device is engineered to seamlessly fit both narrow and wide stile aluminum doors, making it an ideal choice for various applications. With a robust push bar made of extruded aluminum, it boasts a sleek clear anodized finish (628/US28) that complements modern aesthetics. One of the standout features of the 8801EL-M is its non-handed design, allowing for easy installation regardless of the door orientation. The 48-inch push bar is standard, yet it can be field cut to accommodate smaller openings, ensuring versatility. The device is suitable for doors with a thickness of 1-3/4" up to 2-1/4" and requires a minimum stile width of 2 inches. For enhanced security and functionality, it includes a single monitor switch and offers optional electric dogging. The standard hex key dogging provides straightforward usage, while the removable mullion option facilitates better traffic flow on paired doors. The 8801EL-M is compatible with standard rim cylinders, enhancing its adaptability for various locking needs. Overall, the Adams Rite Manufacturing 8801EL-M-48-24V KIT combines practical design with reliable performance, making it an exceptional choice for any exit strategy.

KIT - Narrow Rim Exit Device, Electric (Solenoid) Latch Retraction (EL), Single Monitor Switch (M), Fits Narrow and Wide Stile Aluminum Doors, 48in, 628/US28 Aluminum Clear Anodized

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless
