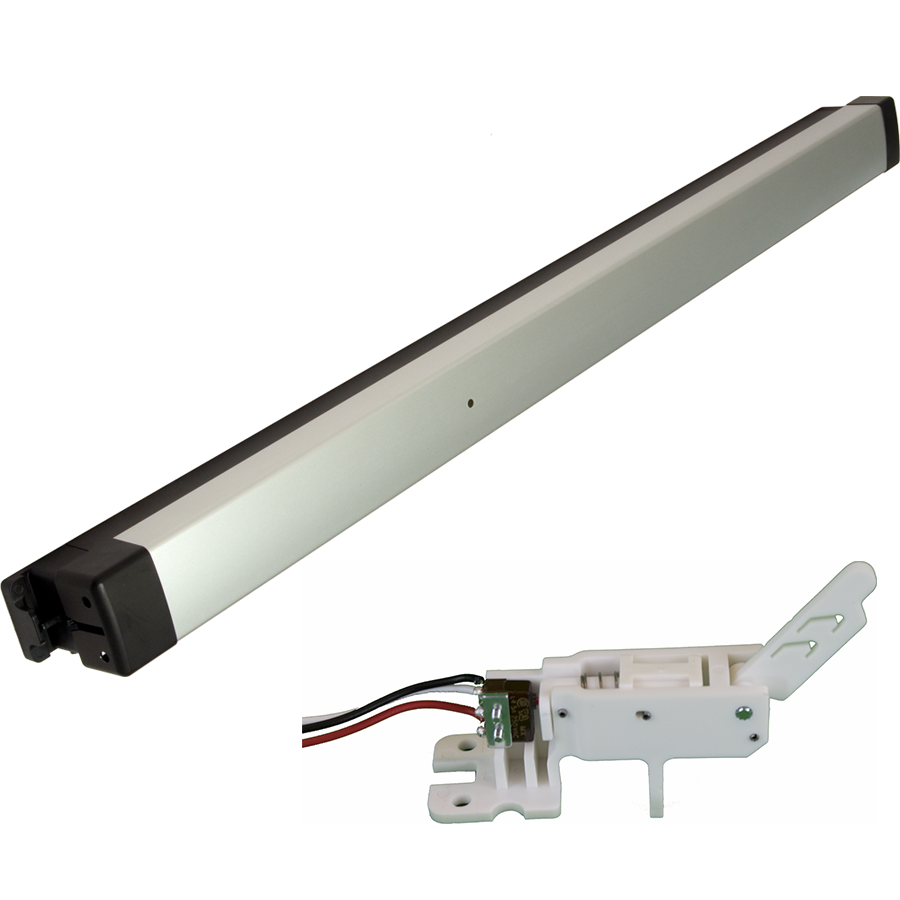

Adams Rite 8801MLR-M1-36-24V Narrow Rim Motorized Exit Device, Single Monitor Switch, Fits Aluminum Doors 36in

Adams Rite Manufacturing 8801MLR-M1-36-24V KIT is a sophisticated narrow rim exit device designed for modern security needs. This motorized latch retraction (MLR) exit device seamlessly fits both narrow and wide stile aluminum doors, making it an excellent choice for various applications, including single and paired doors with a mullion. Constructed from high-quality extruded aluminum, the push bar is available in a clear anodized finish that combines durability with aesthetic appeal. With a standard push bar length of 36 inches, it accommodates door thicknesses of up to 2-1/4 inches, ensuring compatibility with a wide range of installations. The device is non-handed, providing flexibility in usage. The 8801MLR includes standard dogging with a hex key, and options for electric dogging, enhancing its functionality. It features a projection of 2-5/8 inches when fully extended and is compatible with standard 1-5/32 inch diameter rim cylinders, allowing for customizable locking options. Providing higher security than traditional paired doors with vertical rod exit devices, this unit also includes both standard and narrow strikes for improved door centering. With a grade 1 rating, you can trust the Adams Rite 8801MLR to deliver reliable performance in demanding environments.

KIT - Narrow Rim Exit Device, Motorized Latch Retraction (MLR) Exit Device, Single Monitor Switch (M), Fits Narrow and Wide Stile Aluminum Doors, 36in, 628/US28 Aluminum Clear Anodized

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless
