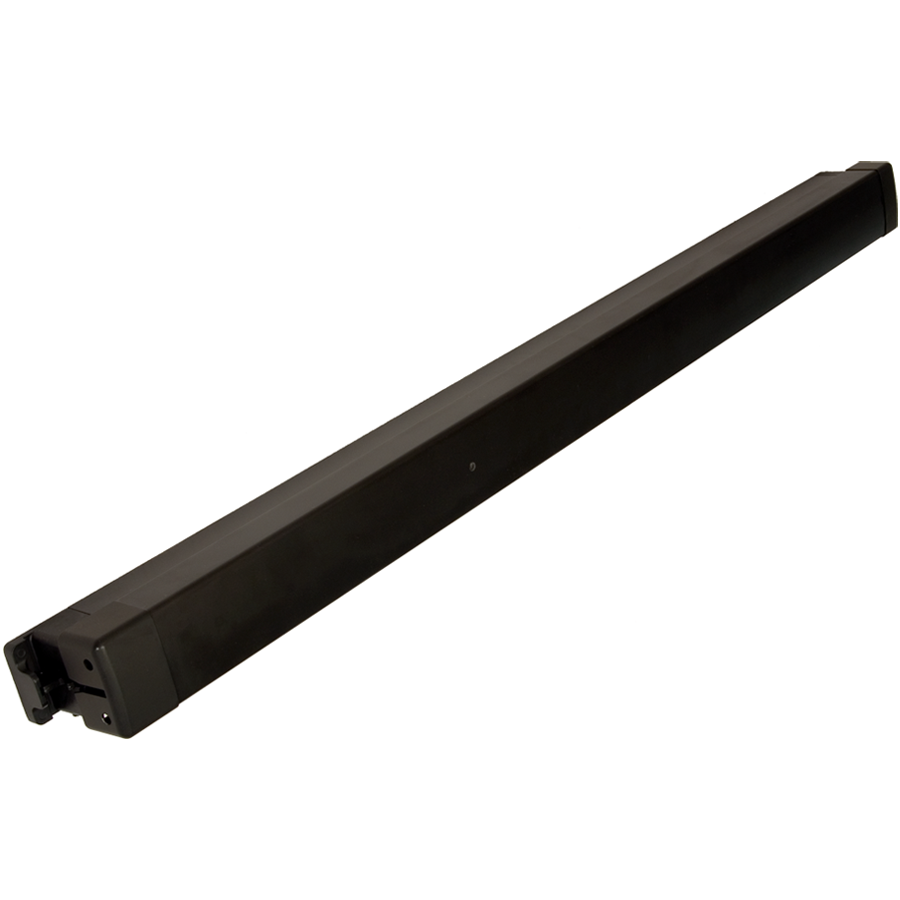

Adams Rite 8802EL-48-24V Narrow Rim Electric Exit Device, Solenoid Latch, 48in, Dark Bronze

Adams Rite Manufacturing 8802EL-48-24V Narrow Rim Exit Device combines security and convenience for narrow stile aluminum, hollow metal, and wood doors. This electric exit device features solenoid latch retraction, making it ideal for high-traffic areas where quick egress is essential. With a length of 48 inches, it is designed to fit both narrow and wide stile doors, accommodating a minimum stile width of 2 inches. Constructed from durable extruded aluminum, the push bar is clad or anodized in a variety of finishes, including a striking anodized dark bronze. The 8800 Series is non-handed, allowing for universal installation on single or paired doors, complete with a removable mullion option for enhanced security and traffic flow. The device supports standard door thicknesses from 1-3/4 inches up to 2-1/4 inches. Key features include standard hex key dogging, optional electric dogging, and compatibility with various rim and mortise cylinders. The standard strike and narrow versions ensure proper alignment in 4-inch jambs. With its electric latch retraction powered by 24V DC, the Adams Rite 8802EL-48-24V is an excellent choice for professionals seeking reliability and functionality in exit solutions.

Narrow Rim Exit Device, Electric (Solenoid) Latch Retraction (EL), Fits Narrow and Wide Stile Aluminum Doors, 48in, 695/SP313 Anodized Dark Bronze

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless
