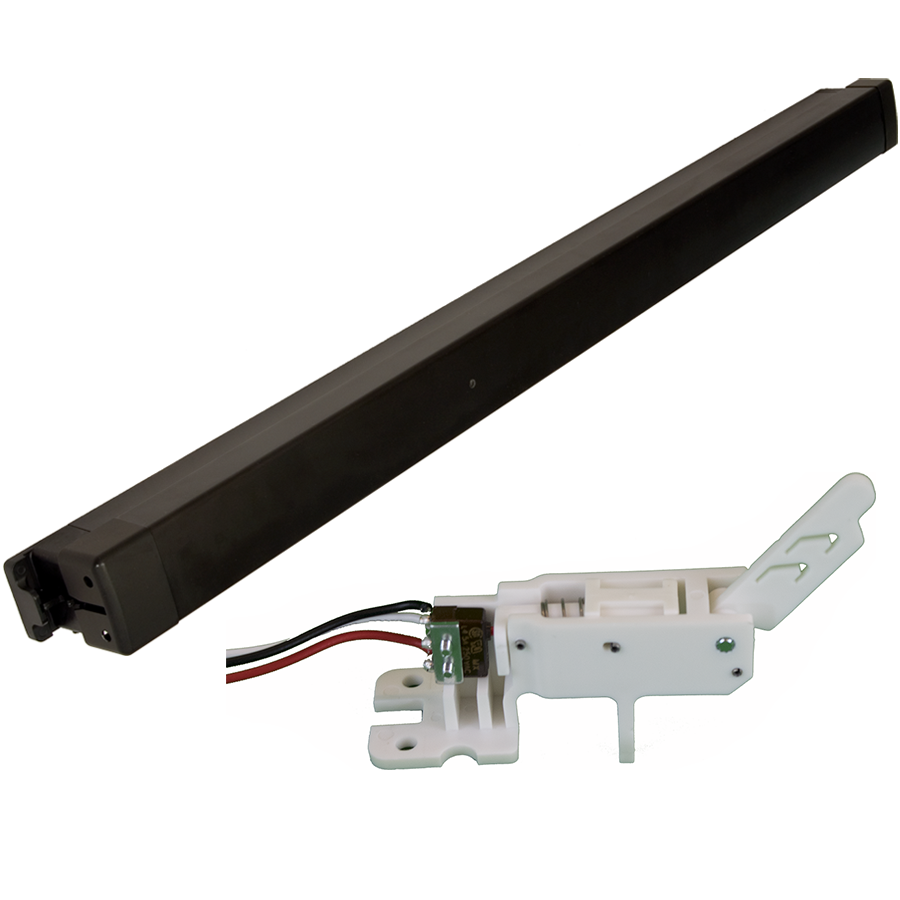

Adams Rite 8802EL-M-36-12V Narrow Rim Electric Exit Device, Single Switch, Fits Aluminum Doors, 36in

Adams Rite Manufacturing 8802EL-M-36-12V KIT is a sophisticated narrow rim exit device designed for use with both narrow and wide stile aluminum doors. This electric (solenoid) latch retraction device offers an efficient means of securing your entry points while ensuring ease of access. Measuring 36 inches, it fits standard door thicknesses ranging from 1-3/4" to 2-1/4" and is non-handed for versatile installation. Built from durable extruded aluminum, the push bar can be clad or anodized in various finishes, including the striking 695/SP313 anodized dark bronze. The device features a standard dogging mechanism, with options for electric dogging, allowing for flexible usage in emergency exit scenarios. It accommodates a range of rim and mortise cylinders to fit various entry trim functions. The design also includes standard and narrow strikes for proper door centering within a 4" jamb, enhancing security and functionality. Additionally, the removable mullion option facilitates the installation of rim exit devices on paired doors, optimizing traffic flow without sacrificing security. The 8802EL-M-36-12V is an ideal choice for building professionals and homeowners seeking reliable access control solutions.

KIT - Narrow Rim Exit Device, Electric (Solenoid) Latch Retraction (EL), Single Switch (M), Fits Narrow and Wide Stile Aluminum Doors, 36in, 695/SP313 Anodized Dark Bronze

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless
