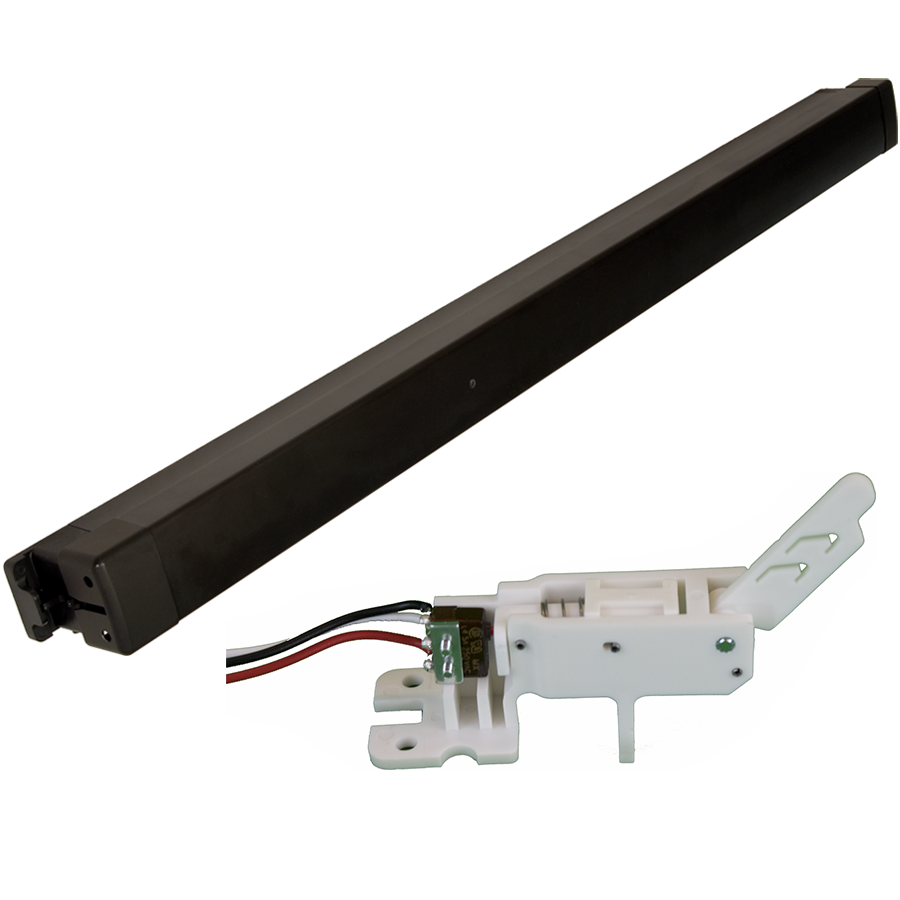

Adams Rite 8802EL-M-36-24V Narrow Rim Electric Exit Device, Solenoid Latch, Fits Aluminum Doors, 36in

Adams Rite Manufacturing 8802EL-M-36-24V KIT is a highly functional Narrow Rim Exit Device designed for both electric latch retraction and seamless integration into narrow and wide stile aluminum doors. Measuring 36 inches, this device is perfect for applications requiring an exit solution with a Starwheel interlocking latching mechanism, making it ideal for single or paired door setups. Constructed from durable extruded aluminum, the push bar is available in a variety of finishes, including the sleek 695/SP313 Anodized Dark Bronze. The non-handed design ensures easy installation on doors with a minimum stile width of 2 inches, accommodating standard door thicknesses from 1-3/4 inches to 2-1/4 inches. This exit device features standard dogging with a hex key or optional electric dogging, offering flexibility for various security needs. It also includes standard and narrow strikes for precise door centering within a 4-inch jamb. The removable mullion allows for enhanced traffic flow and security on paired doors without the need to narrow them. Designed for 24V DC applications, the 8802EL-M operates efficiently and effectively, making it a reliable choice for panic devices and exit alarms in commercial settings. Experience peace of mind with this robust, versatile exit solution from Adams Rite Manufacturing.

KIT - Narrow Rim Exit Device, Electric (Solenoid) Latch Retraction (EL), Single Switch (M), Fits Narrow and Wide Stile Aluminum Doors, 36in, 695/SP313 Anodized Dark Bronze

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless

Resources

• Cut Sheet
