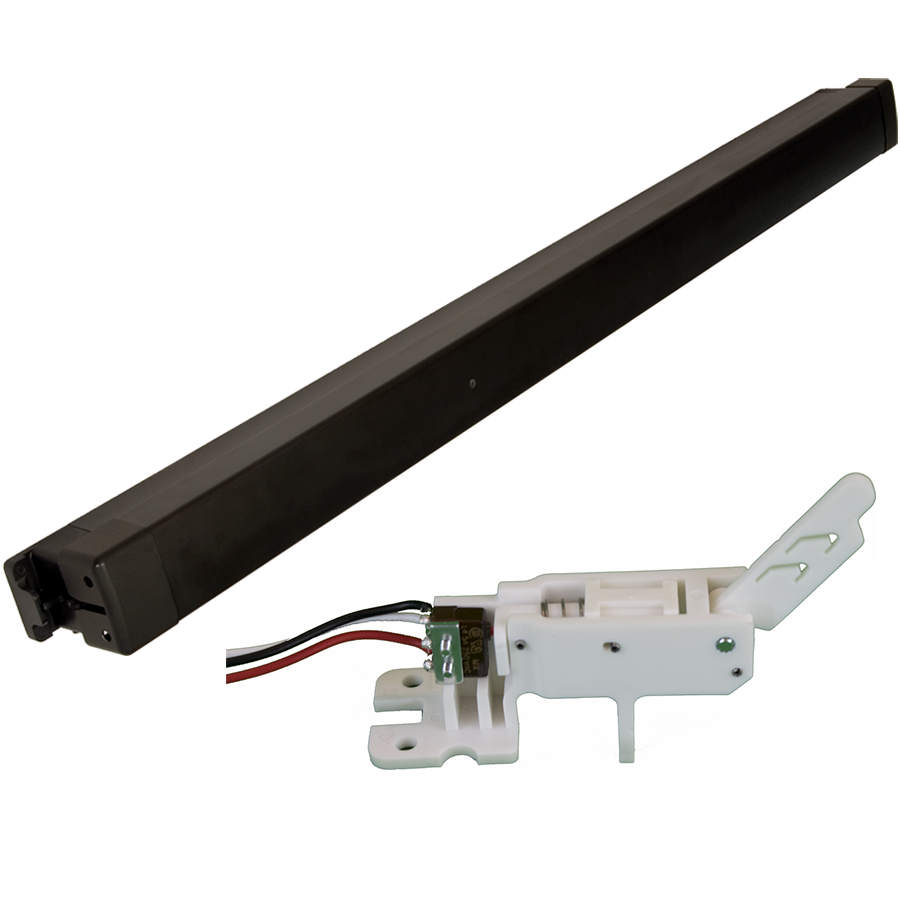

Adams Rite 8802EL-M-48-24V Narrow Rim Electric Exit Device, Solenoid Latch, Fits Aluminum Doors, 48in

Adams Rite Manufacturing 8802EL-M-48-24V KIT is a premium narrow rim exit device that combines security and convenience. Designed specifically for narrow stile aluminum doors, the 8800 Series features an electric (solenoid) latch retraction for effortless operation. With its 48-inch push bar constructed from durable extruded aluminum, this exit device is clad in a stunning anodized dark bronze finish (695/SP313) that not only enhances aesthetics but also provides long-lasting corrosion resistance. This non-handed device is compatible with single doors and pairs of doors with a mullion, making it a versatile choice for various architectural applications. The standard mounting accommodates door thicknesses ranging from 1-3/4 inches to 2-1/4 inches, ensuring a secure fit. Featuring an innovative starwheel interlocking latching mechanism, it offers enhanced security while allowing for smooth exit in emergencies. The 8802EL-M-48-24V KIT includes hex key dogging for standard operation, with options for electric dogging and switch monitoring for added functionality. This exit device is compatible with a range of standard rim and mortise cylinders, providing flexibility in security configurations. With its robust design and efficient features, the Adams Rite 8802EL-M-48-24V KIT is the ideal solution for building professionals looking to enhance safety and accessibility.

KIT - Narrow Rim Exit Device, Electric (Solenoid) Latch Retraction (EL), Single Switch (M), Fits Narrow and Wide Stile Aluminum Doors, 48in, 695/SP313 Anodized Dark Bronze

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless
