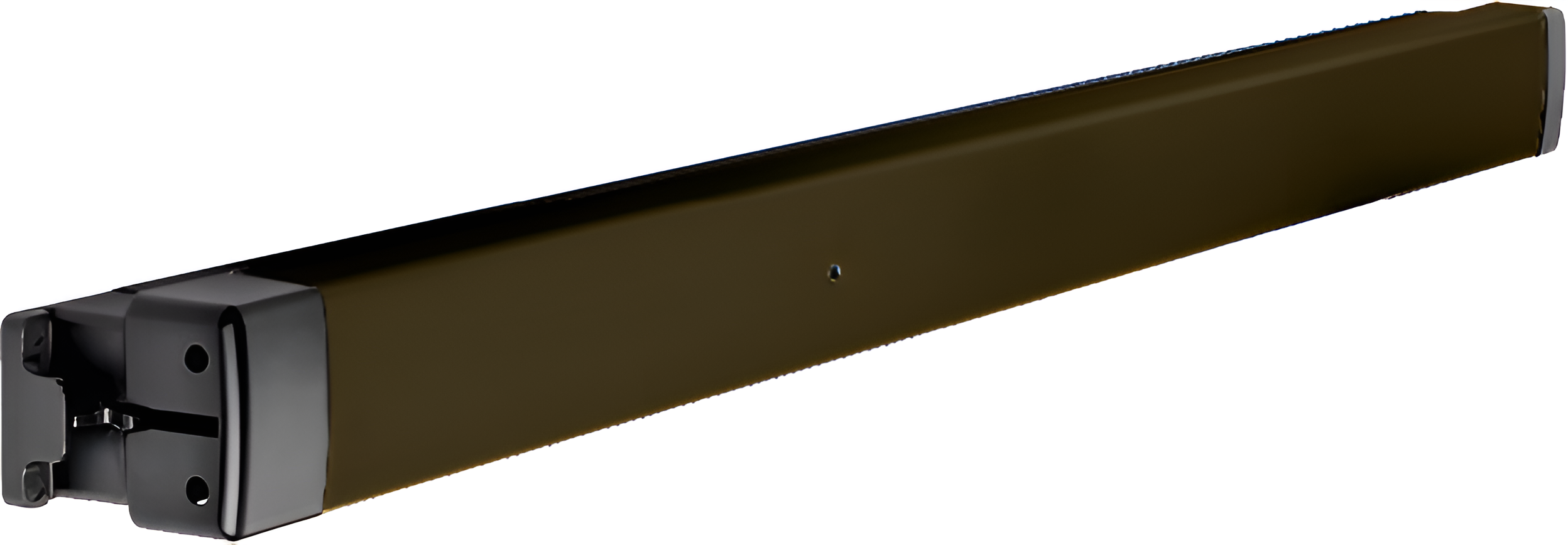

Adams Rite 8802MLR-M1-48-24V Narrow Rim Exit Device, Motorized Latch Retraction, 48in, Dark Bronze

Adams Rite Manufacturing 8802MLR-M1-48-24V KIT is a state-of-the-art narrow rim exit device designed to enhance security and accessibility for narrow stile aluminum doors. This motorized latch retraction (MLR) model ensures smooth and reliable operation, making it ideal for both single doors and pairs with a mullion. The push bar, crafted from durable extruded aluminum, is available in a striking anodized dark bronze finish that complements various architectural styles. This exit device features a non-handed design, accommodating a range of door widths from 30 inches to 48 inches, and suits door thicknesses of 1-3/4 inches up to 2-1/4 inches. With a projection of 2-5/8 inches when fully engaged, it provides a secure closure while allowing for easy access when needed. The 8802MLR also includes standard hex key dogging, with options for electric dogging available for added convenience. The kit comes complete with both standard and narrow strikes, facilitating a perfect fit in 4-inch jambs. With a Grade 1 rating, this exit device meets rigorous safety standards, ensuring peace of mind in high-traffic areas. Ideal for commercial applications, the Adams Rite 8802MLR offers an effective solution to your security needs while ensuring compliance with safety regulations.

KIT - Narrow Rim Exit Device, Motorized Latch Retraction (MLR), Single Monitor Switch (M), Fits Narrow and Wide Stile Aluminum Doors, 48in, 695/SP313 Anodized Dark Bronze

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
• Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 - Bright Brass
• US4 - Satin Brass
• US32 - Bright Stainless
• US32D - Satin Stainless
