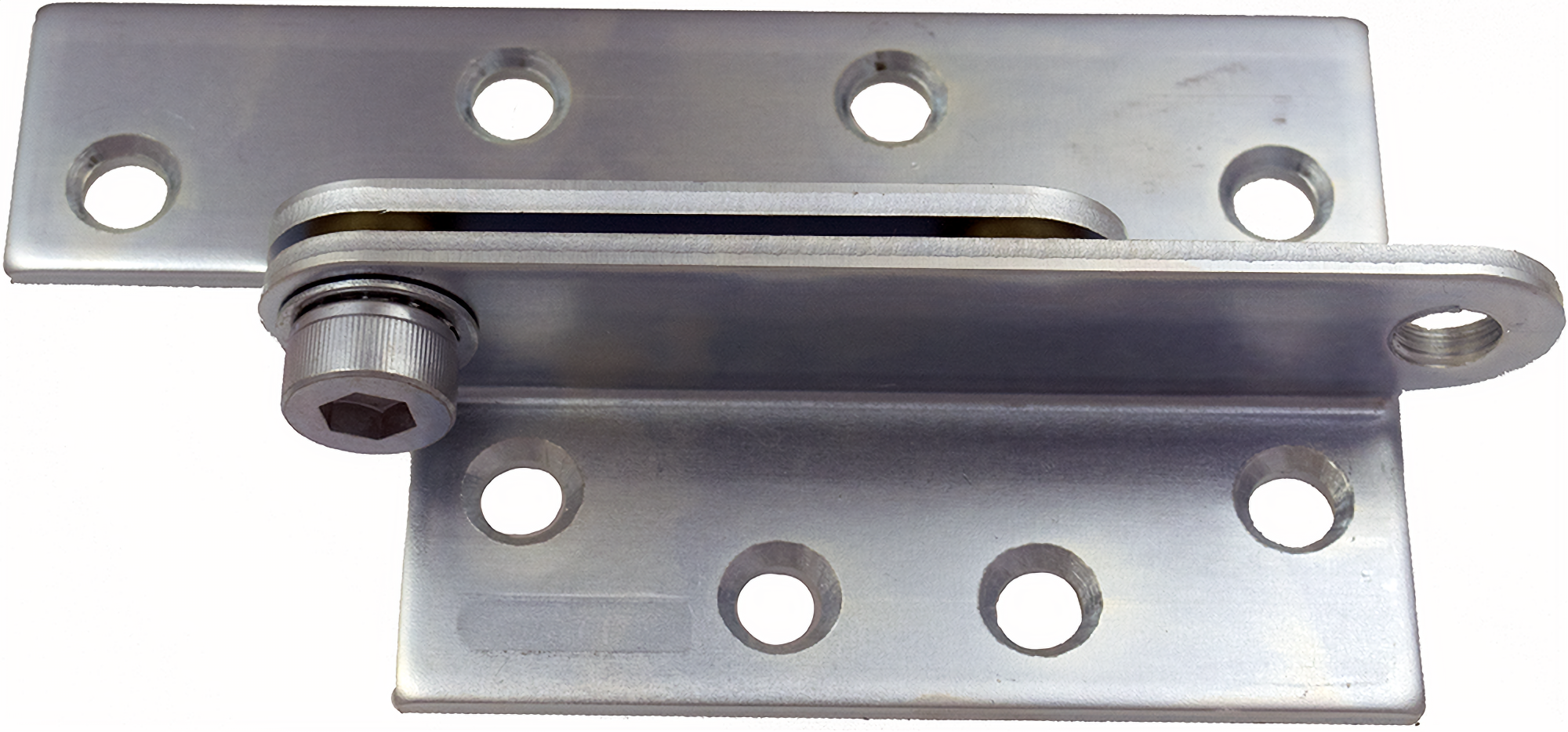

Adams Rite B1923 US2G 4-1/2in Hinge Reinforcing Pivot, Reversible, 603/US2G Zinc Plated

Adams Rite Manufacturing B1923 US2G 4-1/2in Hinge Reinforcing Pivot is designed to provide an effective solution for sagging doors. This full-surface reinforcing pivot redistributes the load from the hinges, ensuring a longer lifespan for your door openings. Crafted from heavy-duty 3/16" cold-rolled steel and finished with durable zinc plating, the B1923 pivot combines strength and resilience, capable of supporting weights up to 300 lbs. The B1923 features a 3/4" offset, perfectly aligning with the pivot point of a 4-1/2" wide butt hinge, making it an ideal choice for flush doors. Its non-handed design and symmetrically located hole pattern facilitate easy installation, ensuring versatility for various applications. Each pivot undergoes rigorous cycle testing, boasting a remarkable endurance of 1,500,000 repetitions, which speaks to its reliability in demanding environments. Included with the standard package are all necessary fasteners, and an optional tamper-proof screw is available for enhanced security. The Adams Rite B1923 is not just a reinforcement; it’s a smart investment in maintaining the functionality and safety of your doors. Whether you’re a building professional or a knowledgeable homeowner, this pivot is an essential component for any robust door system.

4-1/2in Hinge Reinforcing Pivot, Reversible, 603/US2G Zinc Plated

The B1921 and B1923 Reinforcing Pivots provide an economical way to transfer load from hinges of sagging doors. This full-surface reinforcing pivot adds years of life to openings where the hinges or hinge reinforcements have failed. Reinforcing pivots take the load off the top hinge and transfer it to screws that are in shear so they will not pull off. The economical way to solve door sag problems.

Specifications:

• Type: Full surface reinforcing pivots for flush doors.
• Finish: Zinc plating over steel.
• Material: Heavy-duty 3/16" cold-rolled steel.
• Cycle Testing: 1,500,000 repetitions
• Capacity: Supports weights up to 300 lbs.
• Hole Pattern: Symmetrically located. Non-handed.
• Hinge Size: The B1921 pivot is designed with 1/2" offset to match the pivot point of a 4" wide butt hinge. The B1923 pivot is designed with a 3/4" offset to match the pivot point of a 4-1/2" wide butt hinge.
• Standard Package: Comes complete with all necessary fasteners. Optional tamper-proof screw available.

Features

• Cycle Testing: 1,500,000 repetitions
• Finish: Zinc plating over steel.
• Hole Pattern: Symmetrically located. Non-handed.
• Hinge Size: The B1921 pivot is designed with 1/2" offset to match the pivot point of a 4" wide butt hinge. The B1923 pivot is designed with a 3/4" offset to match the pivot point of a 4-1/2" wide butt hinge.
• Capacity: Supports weights up to 300 lbs.
• Type: Full surface reinforcing pivots for flush doors.
• Standard Package: Comes complete with all necessary fasteners. Optional tamper-proof screw available.
• Material: Heavy-duty 3/16" cold-rolled steel.

Resources

• Cut Sheet
