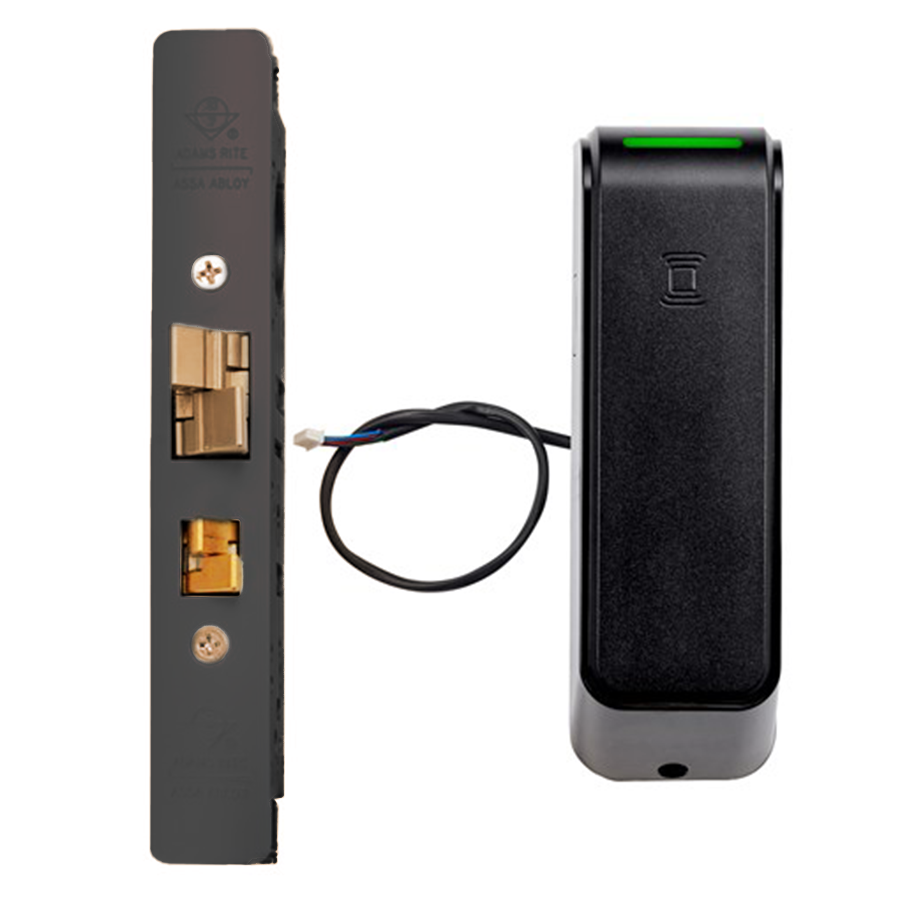

Adams Rite DL100-3201H-IPS-313 Aperio Wireless Electrified Deadlatch 1 1/8" with HID Reader, Dark Bronze

Adams Rite Manufacturing DL100-3201H-IPS-313 Wireless Aperio Electrified Deadlatch offers a sophisticated blend of electronic security and access control designed for standard aluminum stile entrance doors. This versatile deadlatch operates seamlessly from the inside via a handle or paddle device while providing entry through the integrated multiCLASS SE HID reader or mortise cylinder. Powered by two AA lithium batteries, the DL100 features a fail-secure operation and comes equipped with a Form C latch status monitor. Its advanced 2.4 GHz Aperio wireless technology ensures integration with most existing access control systems, while real-time monitoring for tampering, battery health, and door position status enhances security. Constructed from durable steel with a corrosion-resistant finish, this deadlatch is designed for a minimum door thickness of 1-3/4". It includes a stainless steel latchbolt and comes with both flat and radius faceplates, ensuring compatibility with various door designs. The unit is also tamper-resistant and features low-energy EcoLatch motorized actuator technology for energy efficiency. Certified for indoor use with UL 294 and IP65 ratings, the DL100-3201H-IPS-313 is a reliable choice for enhancing security in both residential and commercial applications. Available in a sleek dark bronze anodized finish, it combines functionality with an elegant look.

Wireless Aperio Electrified Deadlatch 1 1/8 with IPS multiCLASS SE HID Reader, 695/SP313 Anodized Dark Bronze

The DL100 Wireless Deadlatch seamlessly combines electrified locking hardware with access control system while working within standard aluminum stile entrance door preparations. Always operable from the inside via handle or paddle device. Entry via the integrated card reader or mortise cylinder. The standard fail secure DL100 Wireless motorized Deadlatch with form "C" latch status monitor and reader is powered by 2 AA lithium batteries. Units are equipped with a quick connect plug-in type connector. Interchangeable without stile modification for MS® Deadlocks or Adams Rite 4500 and 4900 Deadlatches. 1-3/4" [44.5 mm] minimum door thickness required. Offers Real time DPS, tamper, REX and battery health monitoring and control with Support for HID multiCLASS SE and NFC/BLE mobile access card technologies.

Features:

• All Models:
• 2.4 GHz Aperio wireless technology
• Integrates with most existing access control systems and credentials
• Audit trail limited by access control system
• Battery operated
• Deadlatch Features:
• Non-handed
• Fail secure operation (standard)
• Factory configured Form C Latch status monitoring
• Integrated locked state and tamper monitoring
• Universal compatibility with any existing MS® door prep
• Fully finished faceplate and strike plate
• Tamper resistant
• Features low energy EcoLatch® motorized actuator technology
• Lock Backset: 31/32" (24.6 mm), 1-1/8" (28.6 mm), and 1-1/2" (38.1 mm).
• Case: Steel with corrosion-resistant plating. Measures 15/16" x 5-13/16" x depth (23.8 mm x 147.6 mm x depth). Depth varies by backset.
• Latchbolt: Stainless steel. Measures 5/8" x 1" x 5/8" (15.9 mm x 25.4 mm x 15.9 mm) throw.
• Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent "loiding" or case-knife entry. Faceplate Measures 1" x 6-7/8" (25.4 mm x 174.6 mm). Both flat and radius Faceplates are supplied. Flat Faceplates can also be adjusted in the field for right or left beveled edge doors.
• Strike: Pick from optional Strikes. 4304 surface mounted strike for easy retrofits. Specify 4901-01 mortised-flush version when covering existing MS® deadlock preparation or for new applications. 4901-02 strike is available with radius profiles for pairs of doors and with extended lips of center-hung or thick door applications.
• Options: DL100-DRK Door Repair/Retrofit Plate

Specifications:

• Certifications:
• UL 294 Listed – Indoor Rated
• UL 294 Salt Spray Test Compliant
• Tested to IP65 (Reader Only)
• FCC Part 15 & Industry Canada Compliant
• CE RED – Radio Equipment Directive – 2014/53/EU
• Compatible Aperio Hubs: AH20, AH30, AH40
• Environmental:
• Operating Temperature (lock & reader): 14° to 140° F (-10° to 60° C)
• Operating Humidity (lock & reader): 0 to 93% relative humidity on-condensing
• Electrical:
• (2) "AA" lithium batteries (included)
• AA LR6 (1.5 V) lithium ion batteries required. Use of other types of batteries, such as alkaline, will significantly decrease battery life.
• microUSB port for emergency power

Finishes:

• 313 - Dark Bronze Anodized
• 335 - Black Anodized
• 628 - Clear Anodized
