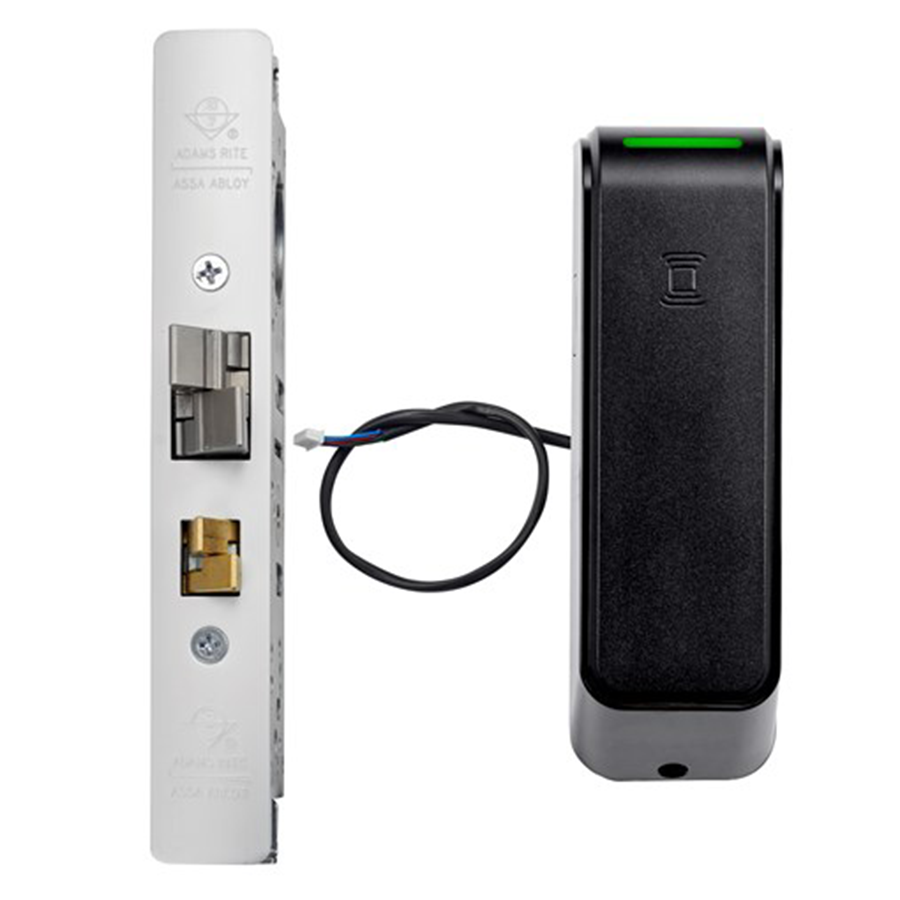

Adams Rite DL100-3201H-IPS-628 Aperio Wireless Electrified Deadlatch 1 1/8" with HID Reader, Aluminum Anodized

Adams Rite Manufacturing DL100-3201H-IPS-628 Wireless Aperio Electrified Deadlatch is engineered to provide seamless integration of electrified locking hardware with modern access control systems. Designed for standard aluminum stile entrance door preparations, this deadlatch offers reliable operation from the inside via a handle or paddle device, while entry can be gained through an integrated card reader or mortise cylinder. This fail-secure motorized deadlatch features real-time monitoring, including tamper alerts and battery health checks, all powered by two AA lithium batteries. The DL100 is compatible with existing MS® door preparations and retrofits effortlessly without stile modification. It boasts a 1-3/4" minimum door thickness and is equipped with a low-energy EcoLatch® motorized actuator for efficient operation. With its 2.4 GHz Aperio wireless technology, the DL100 integrates with various access control systems and supports HID multiCLASS SE and NFC/BLE mobile access card technologies. The unit is constructed with a corrosion-resistant steel case and features a stainless steel latchbolt, ensuring durability and tamper resistance. Available in a clear anodized finish, this deadlatch is UL 294 Listed and compliant with FCC and CE regulations, making it an ideal choice for both commercial and residential applications.

Wireless Aperio Electrified Deadlatch 1 1/8 with IPS multiCLASS SE HID Reader, 628/US28 Aluminum Clear Anodized

The DL100 Wireless Deadlatch seamlessly combines electrified locking hardware with access control system while working within standard aluminum stile entrance door preparations. Always operable from the inside via handle or paddle device. Entry via the integrated card reader or mortise cylinder. The standard fail secure DL100 Wireless motorized Deadlatch with form "C" latch status monitor and reader is powered by 2 AA lithium batteries. Units are equipped with a quick connect plug-in type connector. Interchangeable without stile modification for MS® Deadlocks or Adams Rite 4500 and 4900 Deadlatches. 1-3/4" [44.5 mm] minimum door thickness required. Offers Real time DPS, tamper, REX and battery health monitoring and control with Support for HID multiCLASS SE and NFC/BLE mobile access card technologies.

Features:

• All Models:
• 2.4 GHz Aperio wireless technology
• Integrates with most existing access control systems and credentials
• Audit trail limited by access control system
• Battery operated
• Deadlatch Features:
• Non-handed
• Fail secure operation (standard)
• Factory configured Form C Latch status monitoring
• Integrated locked state and tamper monitoring
• Universal compatibility with any existing MS® door prep
• Fully finished faceplate and strike plate
• Tamper resistant
• Features low energy EcoLatch® motorized actuator technology
• Lock Backset: 31/32" (24.6 mm), 1-1/8" (28.6 mm), and 1-1/2" (38.1 mm).
• Case: Steel with corrosion-resistant plating. Measures 15/16" x 5-13/16" x depth (23.8 mm x 147.6 mm x depth). Depth varies by backset.
• Latchbolt: Stainless steel. Measures 5/8" x 1" x 5/8" (15.9 mm x 25.4 mm x 15.9 mm) throw.
• Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent "loiding" or case-knife entry. Faceplate Measures 1" x 6-7/8" (25.4 mm x 174.6 mm). Both flat and radius Faceplates are supplied. Flat Faceplates can also be adjusted in the field for right or left beveled edge doors.
• Strike: Pick from optional Strikes. 4304 surface mounted strike for easy retrofits. Specify 4901-01 mortised-flush version when covering existing MS® deadlock preparation or for new applications. 4901-02 strike is available with radius profiles for pairs of doors and with extended lips of center-hung or thick door applications.
• Options: DL100-DRK Door Repair/Retrofit Plate

Specifications:

• Certifications:
• UL 294 Listed – Indoor Rated
• UL 294 Salt Spray Test Compliant
• Tested to IP65 (Reader Only)
• FCC Part 15 & Industry Canada Compliant
• CE RED – Radio Equipment Directive – 2014/53/EU
• Compatible Aperio Hubs: AH20, AH30, AH40
• Environmental:
• Operating Temperature (lock & reader): 14° to 140° F (-10° to 60° C)
• Operating Humidity (lock & reader): 0 to 93% relative humidity on-condensing
• Electrical:
• (2) "AA" lithium batteries (included)
• AA LR6 (1.5 V) lithium ion batteries required. Use of other types of batteries, such as alkaline, will significantly decrease battery life.
• microUSB port for emergency power

Finishes:

• 313 - Dark Bronze Anodized
• 335 - Black Anodized
• 628 - Clear Anodized
