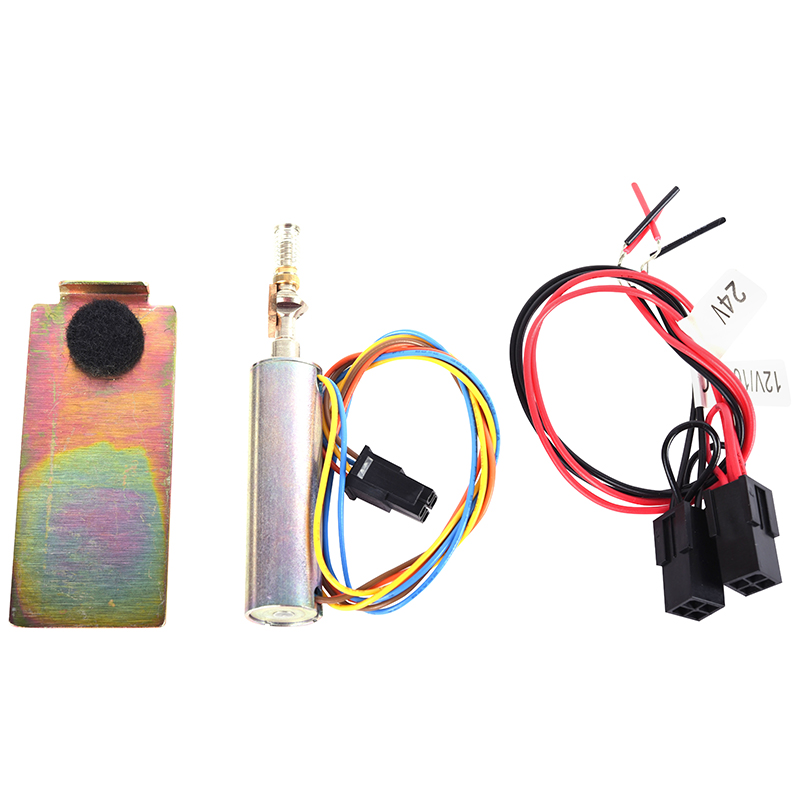

Adams Rite EK-2190 2190 Electric Kit

Adams Rite EK-2190 2190 Electrification Kit delivers robust access control and security solutions for aluminum stile doors. Designed with versatility in mind, this electrification kit operates on both 12/24VAC and DC, ensuring compatibility with various electrical systems. The interconnected deadbolt and deadlatch feature a solid brass latchbolt with a 5/8" throw and a stainless steel deadbolt boasting a 1" throw, providing enhanced security against unauthorized entry. An auxiliary deadlatch pin further reinforces security by preventing "loiding" or case-knife entry. Installation is straightforward, utilizing a cylinder backset of either 1-1/8" or 1-1/2". The kit includes a faceplate measuring 1" x 6-7/8", adaptable to flat, radius, or beveled door edges. For added convenience, the standard strike is the 2101-01, suitable for flush closing doors, with options for radius and extended lip strikes for special jamb conditions. This kit can be operated by any standard mortise cylinder with an MS® cam, ensuring easy integration with existing locking systems. Customization options are available, including trim style, lever design, and finish, allowing you to tailor the solution to your specific needs. The Adams Rite EK-2190 is the ideal choice for commercial installations seeking reliable and secure locking mechanisms.

2190 Electrification Kit

Electrification Kit, 12/24VAC/DC, 2190 Dual Force

Interconnected Deadbolt/Deadlatch provides access control and security for aluminum stile doors.

• Cylinder Backset: 1-1/8” or 1-1/2” only.
• Latchbolt/Deadbolt: Latchbolt: 5/8” throw, solid brass. Easily reversible using only a screwdriver. Deadbolt: 1” throw, stainless steel.
• Auxiliary Deadlatch Pin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
• Faceplates: Measures 1” x 6-7/8”. Include FaceStyle faceplate system that adapts to flat, radius, or beveled door edge. Radius with weatherseal faceplate available separately.
• Strikes: Standard strike furnished is the 2101-01 for flat jamb where door closes flush or nearly flush. The 2101 covers MS® Deadlock strike preparation with modification, and the 4901 Deadlatch strike directly. Also available in radius version for opposite stile pairs of doors and with extended lip strikes for special jamb conditions.
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
• Options: Specify trim option, lever style, finish, and strike.  Also adapts to paddle operator 4591. See 2290 for wood or steel door version for stile and rail type door construction. Note that the low profile trim (trim option 3) is recommended for in-swing door applications. Please refer to 3080 (TRIM) for full offering of designer handle sets.
