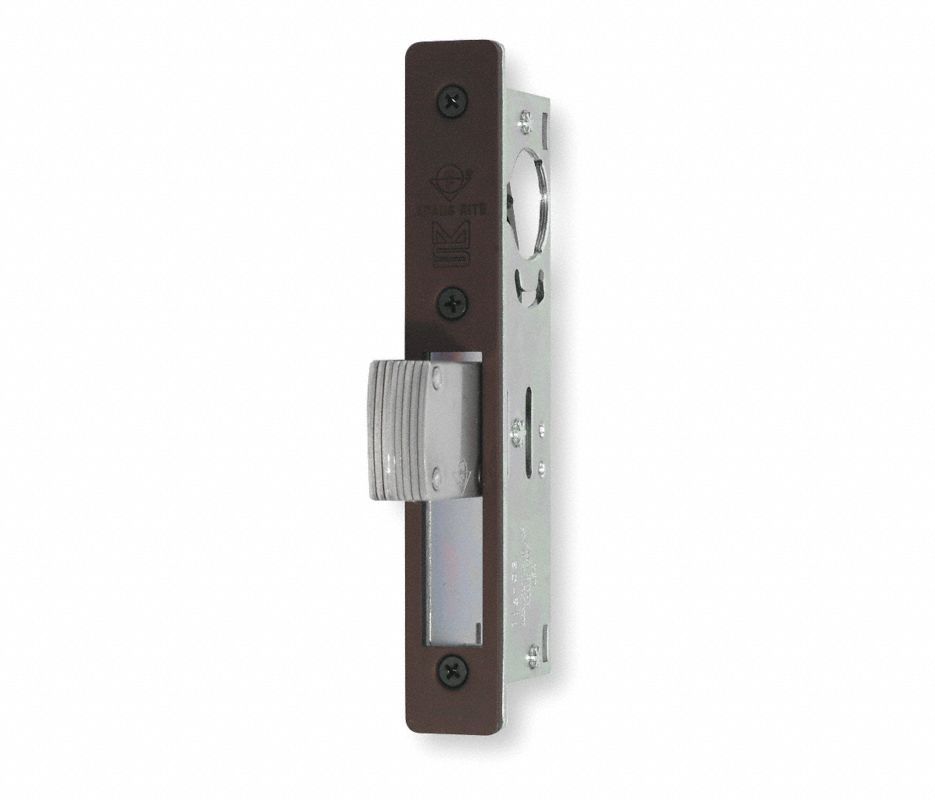

Adams Rite MS1850SN-410-313 Aluminum Door Deadlocks

Your Price: $105.06

Retail Price:$144.000

Your Savings:$38.94(27%)

MS Deadlock, Flat Faceplate, ANSI Size, 1-1/2" Backset, Straight Bolt, Dark Bronze

Part Number : ADR_MS1850SN410313

Availability: 12 In Stock

Quantity

Description

Adams Rite MS1850SN-410-313 Aluminum Door Deadlocks

Adams Rite MS1850SN410313 ANSI Size MS Deadlock Flat Faceplate 1-1/2" Straight Bolt Dark Bronze Anodized Finish

Cylinder Backset: 31/32", 1-1/8", or 1-1/2" only
Case: Steel with corrosion-resistant plating, measures 1" x 6" x depth. Depth varies by backset.
Bolt: 5/8" x 1-3/8" x 2-7/8" with 1-3/8" throw. Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type "super" hacksaws.
Faceplate: Measures 1" x 6-7/8"
Strike: See catalog page for dimensions of strike slot which can be cut in metal jamb. Trim plate, box strike, and armored strike are available separately.
Cylinder Cam: MS1850S Deadlocks are operable by any standard 1-5/32" diameter mortise cylinder with MS cam.
Straight Bolt Deadlock
For Use in Single Leaf Narrow Stile Doors
Laminated Steel Bolt
6-7/8" Faceplate
Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service

Features

Faceplate: Measures 1" x 6-7/8"
Strike: See catalog page for dimensions of strike slot which can be cut in metal jamb. Trim plate, box strike, and armored strike are available separately.
Cylinder Cam: MS1850S Deadlocks are operable by any standard 1-5/32" diameter mortise cylinder with MS cam.
Bolt: 5/8" x 1-3/8" x 2-7/8" with 1-3/8" throw. Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type "super" hacksaws.
Cylinder Backset: 31/32", 1-1/8", or 1-1/2" only
Case: Steel with corrosion-resistant plating, measures 1" x 6" x depth. Depth varies by backset.

Attributes

Alternate Codes: 100775, 1850NSI410313, 1850SN-410313, 1850SN410313, ADR1850NSI410313, ADR1850SN-410313, MS1850SN-410-313, MS1850SN410313

Backset: 1-1/2"

Bolt Projection: 1-13/32"

Bolt Style: Straight Bolt

Bolt Type: Straight Throw Bolt

Category: Glass Aluminum Hardware, Locking Hardware, Lock Sets

Commercial Residential: Commercial

Door Application: Glass Aluminum Hardware

Door Material: Metal or Wood

Faceplate: Flat

Faceplate Shape: Flat Faceplate

Faceplate Size: 8" x 1-1/4"

Faceplate Style: ANSI, Flat, Less Strike

Finish: Dark Bronze Anodized

Finish Code: DBZ

Finish Color: Dark Bronze

Finish Description: Dark Bronze Anodized Aluminum

Finish Family: Dark Bronze

Function: Storefront Hook Bolt, Storefront Throw Bolt

Handing: Non-Handed

Installation: Commercial

Latch Backset Dim: 1-1/2"

Pack Height: 9"

Pack Length: 3.4"

Pack Qty: 1

Pack Volume: 61.2 in³

Pack Width: 2"

Screws: Mounting

Series: MS Series

Ship Weight: 1.9 lbs.

Std Latch Type: Straight Bolt

Subtype: Mortise

Type: Mechanical Commercial Locksets

Unit of Measure: Each
