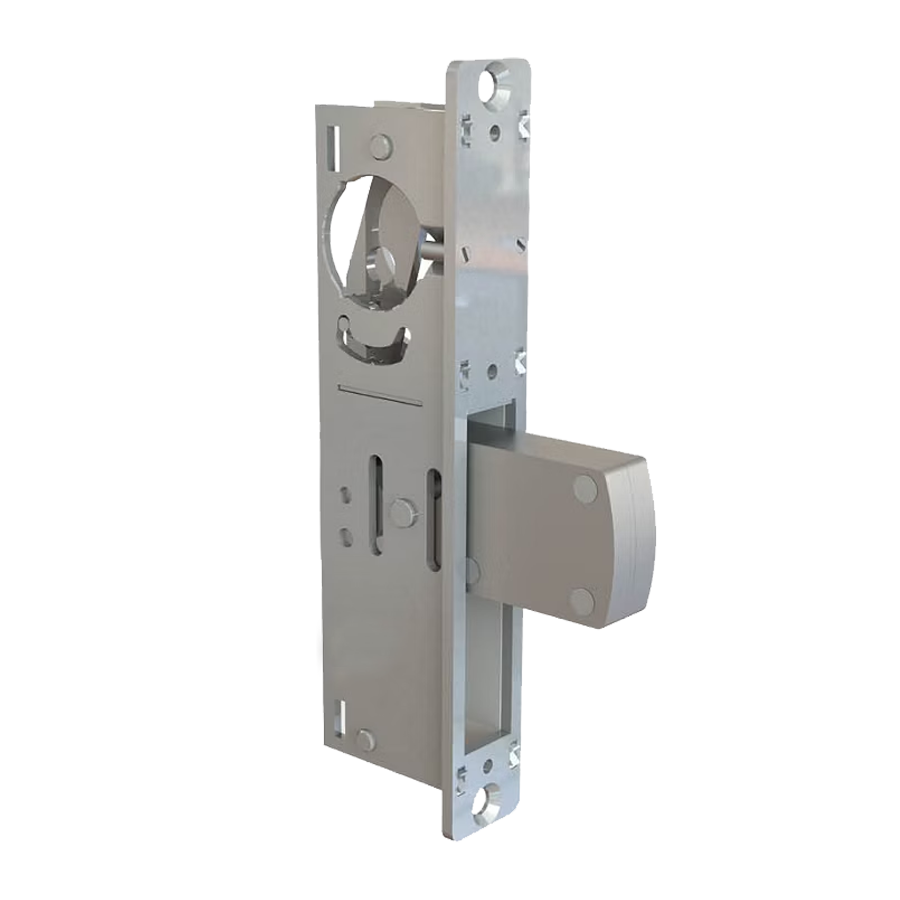

Adams Rite MS1950P-310-628 1-1/8in Deadbolt, Flat Faceplate, No Strike Plate, 628/US28 Aluminum Anodized

Adams Rite Manufacturing MS1950P-310-628 1-1/8in Backset Deadbolt offers exceptional security for narrow stile aluminum doors, combining durability with advanced locking technology. This deadbolt features a robust stainless steel construction with a laminated eight-ply bolt, engineered to withstand hacksaw attacks thanks to its alumina-ceramic core. Designed for easy operation, the MS1950P allows for a 360˚ turn of the key or thumbturn to retract the counterbalanced bolt, effortlessly transitioning the door into a passage mode. Its 1" x 6" faceplate and 1-1/8" backset ensure a snug fit, while the option to accommodate header and threshold bolts provides versatility for multi-point locking in double door configurations. The MS1950P is compatible with a variety of trim plates and strikes, allowing for customized installation. Additionally, the lock can be paired with a mortise cylinder or thumbturn for flexible access control. Available in a sleek clear anodized finish, this deadlock not only enhances security but also complements the aesthetics of any entryway. For professionals seeking a reliable locking solution, the Adams Rite MS1950P-310-628 delivers peace of mind with its premium design and superior functionality. Ensure your property is equipped with top-tier security hardware that meets the demands of modern safety standards.

1-1/8in Backset Deadbolt, Flat Faceplate, Without Strike Plate, 628/US28 Aluminum Clear Anodized

The stainless steel MS1950P Series MS deadlock utilizes a laminated stainless steel bolt, now with enhanced security features, to provide maximum security for a single leaf narrow stile aluminum door. The stainless steel MS1950P-X5X series MS deadlock utilizes a laminated stainless steel hook bolt, now with enhanced security features, to provide maximum security for a sliding narrow stile aluminum door. Both are activated by a pivot mechanism.

Features:

• Cylinder Backset: 31/32" [24.6 mm], 1-1/8" [28.6 mm], or 1-1/2" [38.1 mm] only
• Case: Measures 1" x 6" x depth [25.4 mm x 152.4 mm x depth], depth varies by backset. Fully stainless steel case and internal components. Internal stainless steel plate for enhanced security.
• Bolt: Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type "super" hacksaws.
• MS1950P Bolt: Standard straight bolt measures 5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8" [34.9 mm] throw
• MS1950P-X5X Bolt: 5/8" x 1-3/8" [15.9 mm x 349.9 mm] with 13/16" [20.3 mm] throw. Hook shape repels pry bar attempts to "spread" the door from its jamb or lift it off its track.
• Faceplate: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
• Strike: Trim plate, box strike, and armored strike are available separately.
• Options: "Schoolhouse" version, also available, is modified so that operation from inside is "unlock only". This lock is handed and must be specified LH or RH. Specify Series SCH1950, (-X5X). Same faceplate and backset options as Series MS1950P, (-X5X)

Function:

• A 3" laminated stainless steel bolt and complete stainless steel construction makes the heavy duty MS1950P MS® Deadlock a higher security, premium locking solution for swinging doors. The MS1950P is compatible with header and threshold bolts to accommodate multi-point locking in a double door application. The stainless steel hook bolt of the MS1950P-X5X Series MS® Deadlock answers the security need of sliding doors. The hook shaped bolt resists the parting motion of sliding door and jamb.

Operation:

• For ingress, a 360˚ turn of the key or thumbturn on the exterior cylinder retracts the counterbalanced bolt. While the bolt is retracted the door acts as a passage function, until the deadlock is re-locked from either side of the opening. Typically, if the door remains unlocked during business hours, the interior side is equipped with a mortise cylinder and indicator to allow for flexible traffic control by management. An interior thumbturn to lock the bolt and a 4550 lever can also be installed on the interior side to ensure free egress & ADA compliance. Key can be removed only when bolt is in a locked or unlocked state. Lock body accepts a mortise cylinder, thumbturn, 4089 indicator, or 4550 deadlock lever from either side.

How to Order:

• Faceplate:
• 0P: Flat
• 1P: Radius
• 1WP: Radius with weatherstrip
• 2P: Bevel
• 3P: Without faceplate, without strike plate
• Backset:
• 2: 31/32"
• 3: 1-1/8"
• 4: 1-1/2"
• Bolt Shape:
• 1: Straight bolt
• 5: Hook bolt
• Handing:
• 0: Non-Handed
• 5: LH or RHR
• 6: RH or LHR

Finishes:

• 313 - Dark Bronze Anodized
• 335 - Black Anodized
• 628 - Clear Anodized

Resources

• MS Deadlock Cut Sheet
• MS1837 Two-Point Deadlock Installation Instructions
• MS1847 Installation Instructions
• MS1850 MS Single Point Lock - Environmental Product Declaration (EPD) Literature
• MS1850SN (ANSI) Installation Instructions
• MS1861 Series Deadlock Installation Instructions
• MS1880, MS1881 Two-Point Flushbolt Installation Instructions
• MS1890 Deadlock/Deadlatch Installation Instructions
• MS1950, MS1850A, MS1850S Deadlocks Installation Instructions
