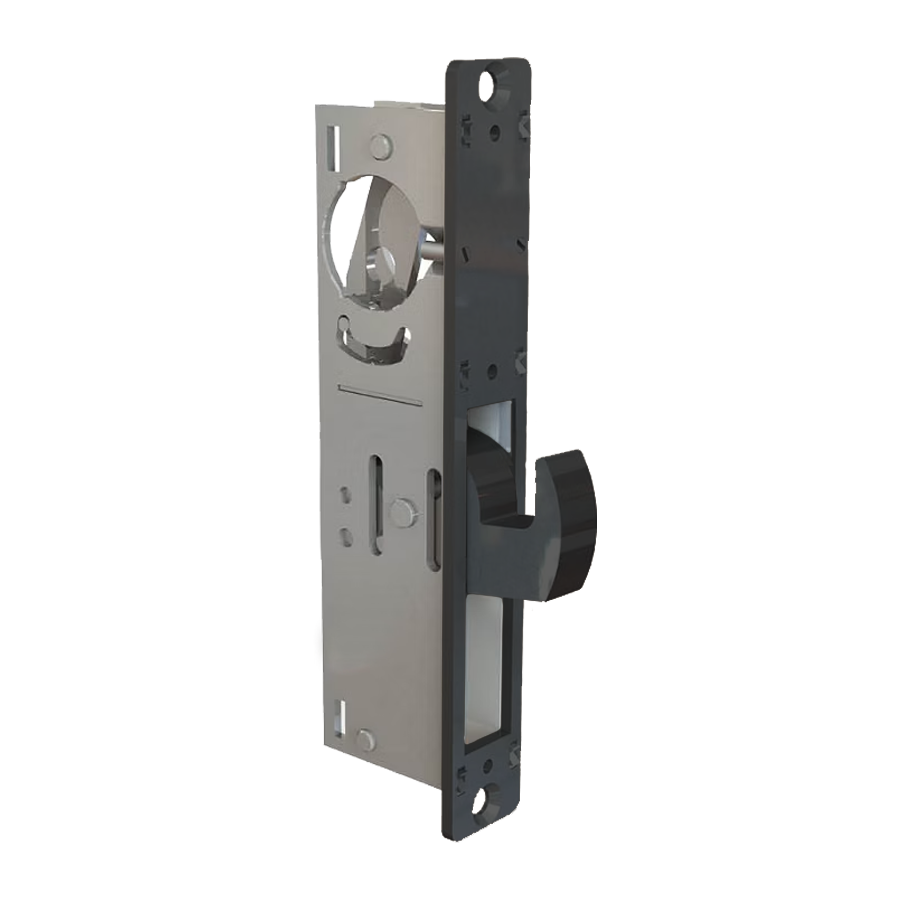

Adams Rite MS1951P-350-335 Hookbolt, 1-1/8in Backset, Radius Faceplate, Black Anodized, No Strike Plate

Adams Rite Manufacturing MS1951P-350-335 1-1/8in Backset Hookbolt, Radius Faceplate, Without Strike Plate, 711/335 Black Anodized offers a robust locking solution specifically designed for single leaf narrow stile aluminum doors. Constructed with a laminated stainless steel hook bolt, this model enhances security with features that effectively resist hacksaw attacks and unauthorized entry attempts. The durable design includes a fully stainless steel case, measuring 1" x 6" with variations in depth based on the backset. The eight-ply laminated hook bolt is engineered to repel pry bar attacks, ensuring that your sliding door remains securely fastened. The bolt's unique shape prevents parting motion between the door and jamb, making it a highly reliable choice for added security. This deadlock operates smoothly with a simple 360˚ turn of the key or thumbturn, allowing effortless retraction of the bolt for passage. The lock is compatible with additional components such as header and threshold bolts for multi-point locking configurations. Available in a sleek black anodized finish, the MS1951P-350-335 is not only functional but also aesthetically pleasing, making it a perfect fit for modern architectural designs. Choose this high-security solution for peace of mind and enhanced protection for your premises.

1-1/8in Backset Hookbolt, Radius Faceplate, Without Strike Plate, 711/335 Black Anodized

The stainless steel MS1950P Series MS deadlock utilizes a laminated stainless steel bolt, now with enhanced security features, to provide maximum security for a single leaf narrow stile aluminum door. The stainless steel MS1950P-X5X series MS deadlock utilizes a laminated stainless steel hook bolt, now with enhanced security features, to provide maximum security for a sliding narrow stile aluminum door. Both are activated by a pivot mechanism.

Features:

• Cylinder Backset: 31/32" [24.6 mm], 1-1/8" [28.6 mm], or 1-1/2" [38.1 mm] only
• Case: Measures 1" x 6" x depth [25.4 mm x 152.4 mm x depth], depth varies by backset. Fully stainless steel case and internal components. Internal stainless steel plate for enhanced security.
• Bolt: Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type "super" hacksaws.
• MS1950P Bolt: Standard straight bolt measures 5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8" [34.9 mm] throw
• MS1950P-X5X Bolt: 5/8" x 1-3/8" [15.9 mm x 349.9 mm] with 13/16" [20.3 mm] throw. Hook shape repels pry bar attempts to "spread" the door from its jamb or lift it off its track.
• Faceplate: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
• Strike: Trim plate, box strike, and armored strike are available separately.
• Options: "Schoolhouse" version, also available, is modified so that operation from inside is "unlock only". This lock is handed and must be specified LH or RH. Specify Series SCH1950, (-X5X). Same faceplate and backset options as Series MS1950P, (-X5X)

Function:

• A 3" laminated stainless steel bolt and complete stainless steel construction makes the heavy duty MS1950P MS® Deadlock a higher security, premium locking solution for swinging doors. The MS1950P is compatible with header and threshold bolts to accommodate multi-point locking in a double door application. The stainless steel hook bolt of the MS1950P-X5X Series MS® Deadlock answers the security need of sliding doors. The hook shaped bolt resists the parting motion of sliding door and jamb.

Operation:

• For ingress, a 360˚ turn of the key or thumbturn on the exterior cylinder retracts the counterbalanced bolt. While the bolt is retracted the door acts as a passage function, until the deadlock is re-locked from either side of the opening. Typically, if the door remains unlocked during business hours, the interior side is equipped with a mortise cylinder and indicator to allow for flexible traffic control by management. An interior thumbturn to lock the bolt and a 4550 lever can also be installed on the interior side to ensure free egress & ADA compliance. Key can be removed only when bolt is in a locked or unlocked state. Lock body accepts a mortise cylinder, thumbturn, 4089 indicator, or 4550 deadlock lever from either side.

How to Order:

• Faceplate:
• 0P: Flat
• 1P: Radius
• 1WP: Radius with weatherstrip
• 2P: Bevel
• 3P: Without faceplate, without strike plate
• Backset:
• 2: 31/32"
• 3: 1-1/8"
• 4: 1-1/2"
• Bolt Shape:
• 1: Straight bolt
• 5: Hook bolt
• Handing:
• 0: Non-Handed
• 5: LH or RHR
• 6: RH or LHR

Finishes:

• 313 - Dark Bronze Anodized
• 335 - Black Anodized
• 628 - Clear Anodized
