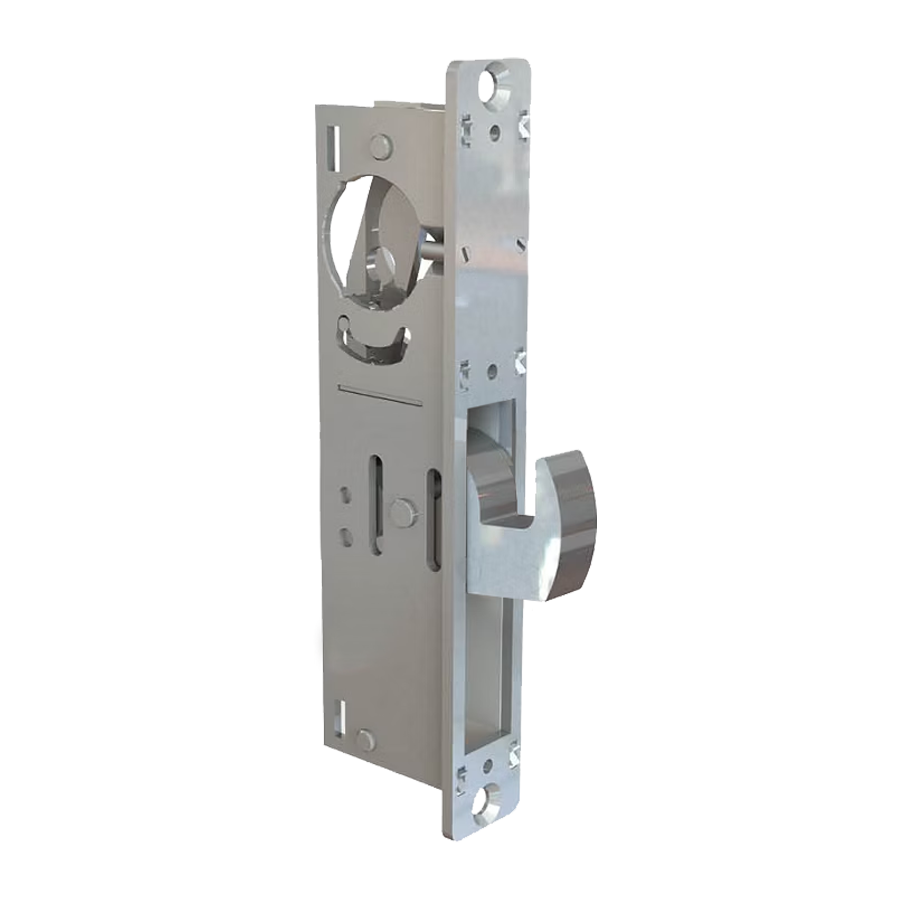

Adams Rite MS1951P-450-628 1-1/2in Backset Hookbolt, Radius Faceplate, Clear Anodized, No Strike Plate

Adams Rite Manufacturing MS1951P-450-628 1-1/2in Backset Hookbolt, Radius Faceplate, Without Strike Plate, 628/US28 Aluminum Clear Anodized offers a robust locking solution tailored for narrow stile aluminum doors. Crafted with an eight-ply laminated stainless steel hook bolt, this deadlock is designed to enhance security significantly. The center ply features an alumina-ceramic core, effectively resisting hacksaw attacks and ensuring the integrity of your entryway. With a fully stainless steel case measuring 1" x 6" and a depth that varies by backset, the MS1951P offers durability and reliability. The bolt's dimensions of 5/8" x 1-3/8" with a generous 1-3/8" throw allow for a secure fit, while the radius faceplate complements its sleek design. This model operates via a pivot mechanism, making access seamless without compromising security. For added functionality, the lock can accommodate header and threshold bolts, enabling multi-point locking for double doors. Its design also allows for easy re-locking from either side, providing flexibility for high-traffic areas. The lock body is compatible with various cylinders and thumbturns, catering to diverse operational needs. Finished in clear anodized aluminum, the MS1951P not only stands up to wear but also enhances the aesthetic of any entryway.

1-1/2in Backset Hookbolt, Radius Faceplate, Without Strike Plate, 628/US28 Aluminum Clear Anodized

The stainless steel MS1950P Series MS deadlock utilizes a laminated stainless steel bolt, now with enhanced security features, to provide maximum security for a single leaf narrow stile aluminum door. The stainless steel MS1950P-X5X series MS deadlock utilizes a laminated stainless steel hook bolt, now with enhanced security features, to provide maximum security for a sliding narrow stile aluminum door. Both are activated by a pivot mechanism.

Features:

• Cylinder Backset: 31/32" [24.6 mm], 1-1/8" [28.6 mm], or 1-1/2" [38.1 mm] only
• Case: Measures 1" x 6" x depth [25.4 mm x 152.4 mm x depth], depth varies by backset. Fully stainless steel case and internal components. Internal stainless steel plate for enhanced security.
• Bolt: Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type "super" hacksaws.
• MS1950P Bolt: Standard straight bolt measures 5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8" [34.9 mm] throw
• MS1950P-X5X Bolt: 5/8" x 1-3/8" [15.9 mm x 349.9 mm] with 13/16" [20.3 mm] throw. Hook shape repels pry bar attempts to "spread" the door from its jamb or lift it off its track.
• Faceplate: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
• Strike: Trim plate, box strike, and armored strike are available separately.
• Options: "Schoolhouse" version, also available, is modified so that operation from inside is "unlock only". This lock is handed and must be specified LH or RH. Specify Series SCH1950, (-X5X). Same faceplate and backset options as Series MS1950P, (-X5X)

Function:

• A 3" laminated stainless steel bolt and complete stainless steel construction makes the heavy duty MS1950P MS® Deadlock a higher security, premium locking solution for swinging doors. The MS1950P is compatible with header and threshold bolts to accommodate multi-point locking in a double door application. The stainless steel hook bolt of the MS1950P-X5X Series MS® Deadlock answers the security need of sliding doors. The hook shaped bolt resists the parting motion of sliding door and jamb.

Operation:

• For ingress, a 360˚ turn of the key or thumbturn on the exterior cylinder retracts the counterbalanced bolt. While the bolt is retracted the door acts as a passage function, until the deadlock is re-locked from either side of the opening. Typically, if the door remains unlocked during business hours, the interior side is equipped with a mortise cylinder and indicator to allow for flexible traffic control by management. An interior thumbturn to lock the bolt and a 4550 lever can also be installed on the interior side to ensure free egress & ADA compliance. Key can be removed only when bolt is in a locked or unlocked state. Lock body accepts a mortise cylinder, thumbturn, 4089 indicator, or 4550 deadlock lever from either side.

How to Order:

• Faceplate:
• 0P: Flat
• 1P: Radius
• 1WP: Radius with weatherstrip
• 2P: Bevel
• 3P: Without faceplate, without strike plate
• Backset:
• 2: 31/32"
• 3: 1-1/8"
• 4: 1-1/2"
• Bolt Shape:
• 1: Straight bolt
• 5: Hook bolt
• Handing:
• 0: Non-Handed
• 5: LH or RHR
• 6: RH or LHR

Finishes:

• 313 - Dark Bronze Anodized
• 335 - Black Anodized
• 628 - Clear Anodized
