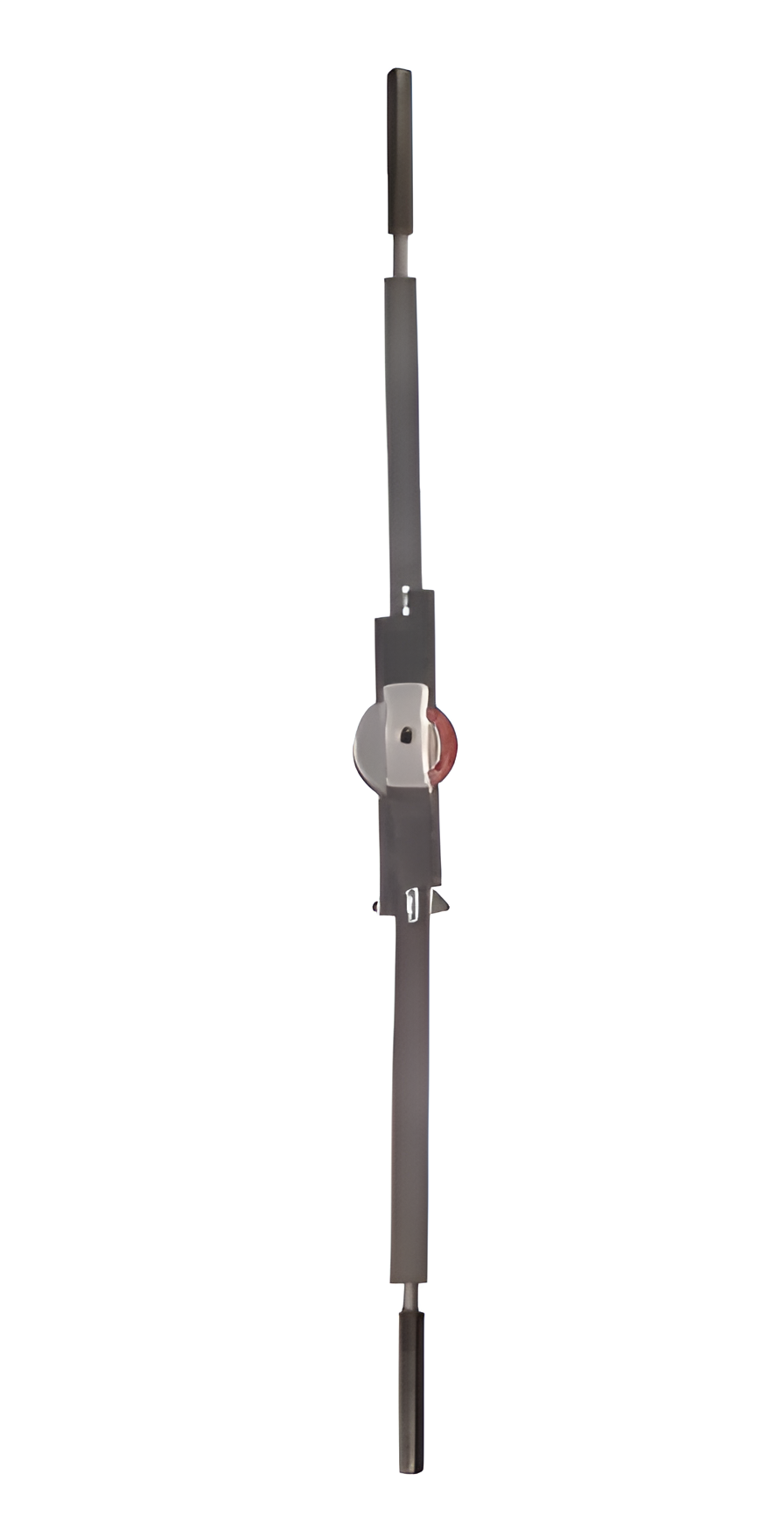

Adams Rite MS2180-10-130 Auto-Release Two-Point Flushbolt, Hourglass Turn, 10ft Door, Aluminum Anodized

Adams Rite Manufacturing MS2180-10-130 Auto-Release Two-Point Flushbolt offers a robust solution for securing paired narrow stile aluminum doors. This system works seamlessly with any MS® pivoting deadlock, ensuring maximum security without compromising ease of use. With an hourglass-shaped turn lever, it features a firm grip and a clear "LOCKED" indicator, providing visual assurance of security. Designed for doors up to 10 feet, the MS2180 includes stainless steel bolts with a 23/32" throw, ensuring reliable locking in both header and threshold applications. The smart lock mechanism enhances security by preventing the entry of the pivoted bolt until the vertical bolts are locked, and vice versa. For added functionality, an optional MK-2180 Monitoring Kit can be integrated, offering tamper-proof indications of the door's position and locked status. Installation is straightforward, with included bolt guides and screws, while the turn height is adjustable from 34" to 48" to match the cylinder height of the active door's deadlock. The MS2180 is available in three finishes, including Clear Anodized, to complement your architectural style. This flushbolt is a sophisticated choice for those who value security, functionality, and aesthetics in their locking hardware.

Auto-Release Two-Point Flushbolt, Hourglass Shaped Turn, Up to 10ft Door, 628/130 Aluminum Clear Anodized

The MS2180 Auto-Release Two-Point Flushbolts work in conjunction with any MS® pivoting deadlock to provide maximum security for paired narrow stile aluminum doors.

Features:

• Header | Threshold Bolt: Hexagonal 3/8" [9.5 mm] flat to flat. Stainless steel. Guides furnished. Bolt throw is 23/32" [18.3 mm]. Strike required in metal headers and thresholds is 1/2" [12.7 mm] diameter hole. For wood installation, two 4005 Strikes are required, available separately.
• Smart Lock: Mechanism includes device to prevent entry of pivoted bolt until vertical bolts are locked and conversely, to prevent unlocking of vertical bolts when pivoted bolt is locked.
• Monitoring: Monitoring Kit available as add-on switch kit that signals when the top and bottom bolts are fully projected and the MS® deadlock is in the extended and locked position. More than an easily defeated door position switch, the MK-2180 Monitoring Kit uses a form "C" switch to provide a tamper-proof indication of the door position and locked condition.
• Turn Lever | Indicator:
• MS2180 has an hourglass-shaped turn fora firm finger grip. Red lettered indicator shows "LOCKED" when secure.
• MS2181 has a teardrop-shaped turn with red letters on clear decal indicating unlock direction only.
• MS2182 is a limited-access flush turn to comply with IBC requirements for "no door knob" actuation. MS2182 is supplied with an activation tool. Red lettered indicator shows "LOCKED" when secure.
• Turn Height: Matches cylinder height of MS® deadlock in active door, adjustable from 34" [863.6 mm] to 48" [1,219.2 mm].
• Standard Package: Individually boxed with bolt guides and screws. Weight: 2 lbs [.91 kg].
• Options: For wood header or threshold, 4005 Strike available separately

Function:

• Used instead of flip-lever flushbolts in the inactive leaf of paired doors. One turn pins the inactive leaf in position. The pivoting MS® deadlock in the active leaf secures the entire opening. The action of securing the MS® deadlock trips an internal mechanism in the MS2180 so that when the MS® deadlock is retracted, the entire opening releases with only one operation. This auto-release two-point flushbolt must be installed with a pivoted bolt MS® deadlock. Not to be used as a standalone locking mechanism.

Operation:

• Turn knob or lever 120° counterclockwise to throw stainless steel bolts into header and threshold and clear strike opening so pivoted MS® bolt can enter from active door. Clockwise turn retracts vertical bolts and blocks entry of pivoted bolt. Operates in conjunction with any MS® pivoting deadlock.

Finishes:

• 119 Black Anodized
• 121 Dark Bronze Anodized
• 130 Clear Anodized
