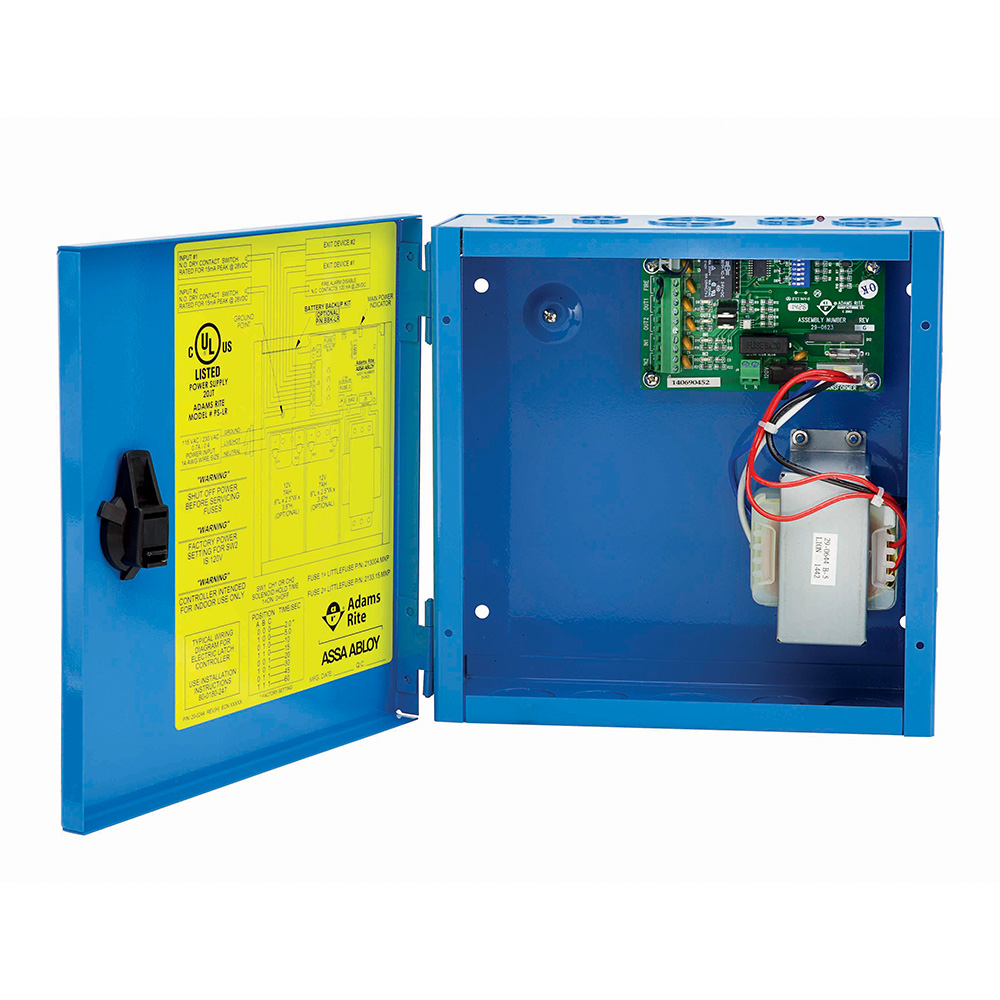

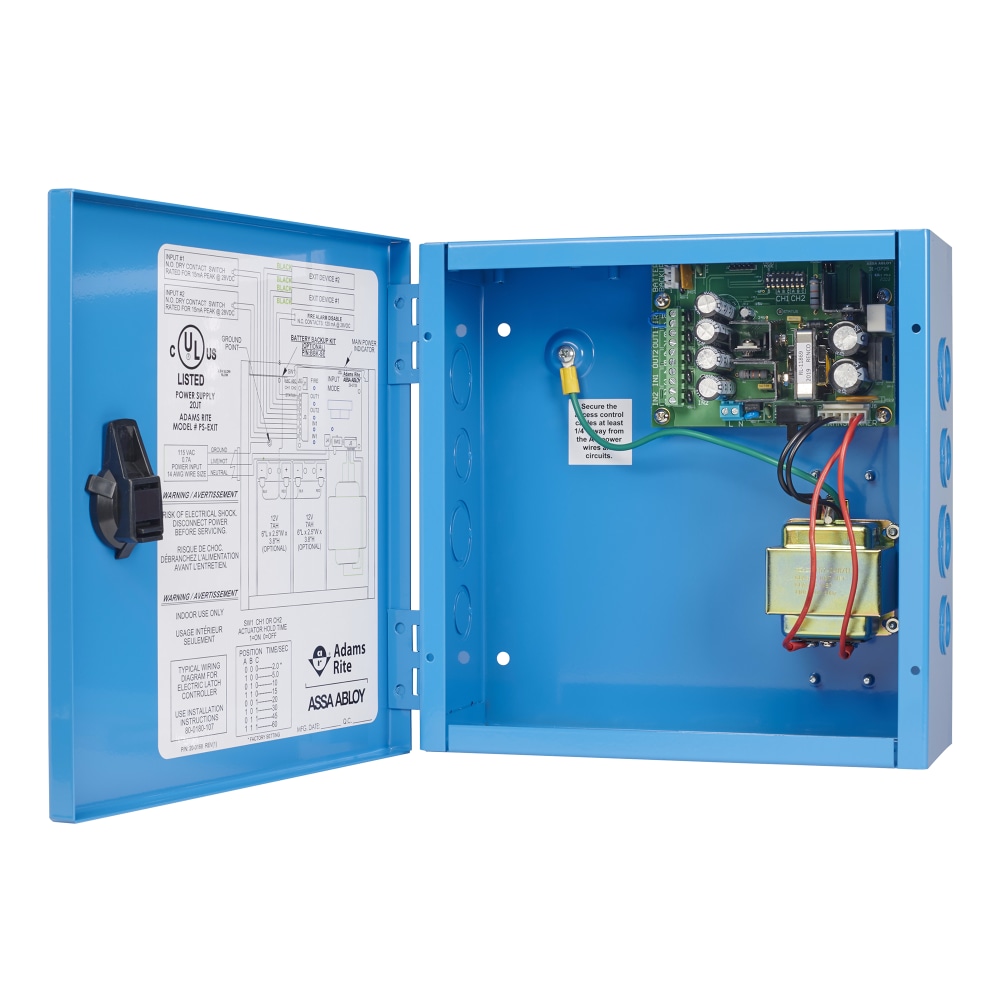

Adams Rite PS-EXIT Power Supply for Exit Devices with Motorized and Electric Latch Retraction

Adams Rite PSEXIT Power Supply for Exit Devices with Motorized Latch Retraction and Electric Latch Retraction Options is a robust solution designed to enhance security and control in commercial environments. This power supply effectively manages up to two MLR or LR exit devices, providing flexibility and efficiency for various applications. The PSEXIT features a user-configurable timer that can hold the exit devices in an unlatched position for a customizable duration of 2 to 60 seconds, ensuring smooth egress while maintaining security. If the controlling switch remains engaged beyond the selected time, the exit devices will stay unlatched until the switch is released, allowing for adaptable operation based on situational needs. Constructed from durable steel, this power supply measures 10" x 10-3/8" x 4-1/8", making it a compact addition to any installation. With a power output of 7 amps and a voltage range of 24 to 26 volts DC, the PSEXIT is reliable and efficient. Additionally, it comes with a limited 5-year warranty, underscoring Adams Rite’s commitment to quality and longevity in their products. Ideal for commercial electronic components, the PSEXIT ensures safety and compliance without compromising the sleek design of modern door hardware.

Power Supply for Exit Devices with Motorized Latch Retraction and Electric Latch Retraction Options

For over 100 years, Adams Rite has been the Aluminum Hardware Authority, known for their innovative designs and high quality products. When the Maximum Security (MS) Lock? launched in 1955, it quickly became the industry standard and even now remains the dominant locking solution for narrow stile aluminum openings. Today Adams Rite designs, manufactures and markets door and door hardware products to the commercial, industrial and institutional building construction industry and is recognized as one of the leading suppliers in its area of specialization. Our product lines include electromechanical deadlocks and deadlatches, electric strikes and exit devices for exterior and interior doors as well as integrated door assemblies. Our products are designed to complement the clean lines of modern doors, while at the same time meeting safety and access codes.

• An optional mode is available that allows both retraction timers to activate in response to a closure of either switch.
• Exit devices under access system control remain latched during a complete power failure but always allow free mechanical egress
• At the end of the selected time, the exit device(s) will re-latch
• This power supply is designed to provide power and control for up to two MLR or LR exit devices
• The timer is user-configured and holds the exit device(s) in the unlatched position for 2 – 60 seconds
• If the switch controlling the exit device is closed longer than the selected time, the exit device remains unlatched until the controlling switch is released
• Each exit device is controlled by a timer that is initiated by a switch closure
