Aiphone AX-DM Surface Mount Mullion Audio Door Hardware

Aiphone AX-DM Surface Mount Mullion Audio Door Station offers a robust and reliable communication solution for commercial environments. This weather-resistant unit integrates seamlessly with the AX Series, supporting up to 8 interior master stations and a remarkable 120 door or interior stations, all connected via CAT-5e/6 cabling. Designed for ease of use, the AX-DM features a tremolo call tone that can be programmed for durations ranging from 10 to 600 seconds or set to infinite, ensuring that users are alerted effectively. The 3.5" direct view TFT color LCD monitor provides clear visual interaction, while the hands-free or push-to-talk communication allows for flexible engagement with visitors. Powering the system requires a 24V DC connection, and the door release function is programmable for either normally open or normally closed options. With a maximum distance of 980 feet from the door station to the Central Equipment Unit (CEU), the AX-DM is suitable for larger properties or installations. Housed in a sleek black finish, this surface-mounted intercom system combines functionality and durability, making it an excellent choice for enhancing security and communication in commercial settings. The unit comes with a 1-year limited warranty, ensuring peace of mind with your investment.

Surface Mount Mullion Audio Do

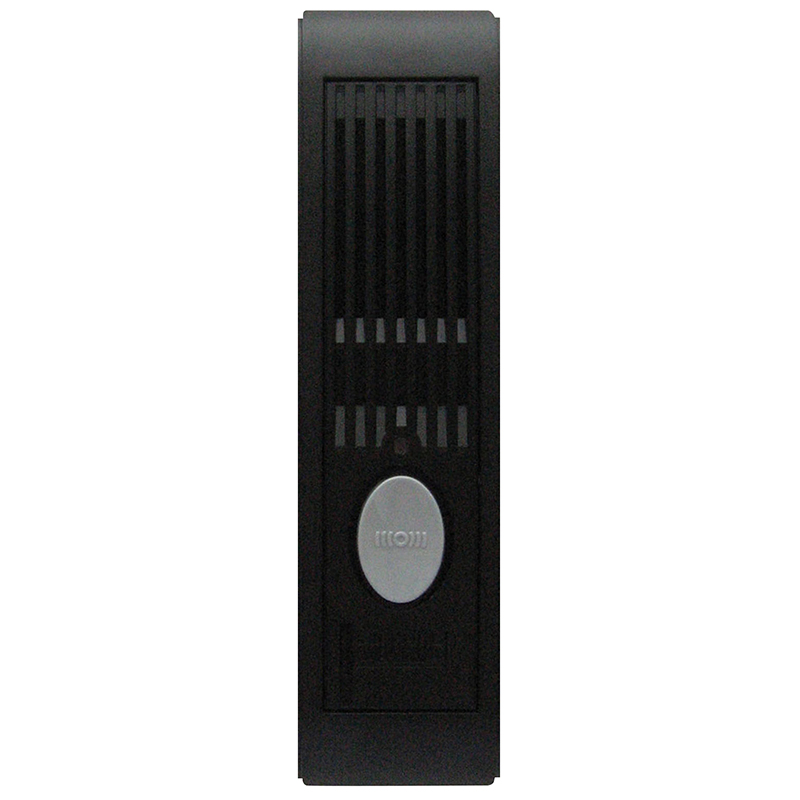

Surface Mount Mullion Audio Door Station, Weather Resistant

The AX Series supports up to 8 interior master stations and 120 door or interior stations. All components are wired using CAT-5e/6 cable. A wide variety of system components are available to meet almost any specification.

Supports up to 8 interior master stations and 120 door or interior stations.

All components use CAT-5e wiring homerun from each station and has two talk channels.

• Power Source ; 24V DC - Use two PS-2420UL (110V AC) per system
• Door Station Calling: Tremolo call tone programmable from 10-600 seconds, or infinite. LCD monitor remains on for duration of call tone up to 10 minutes max.
• Master Station Calling: Select station to call, pretone sounds, then speak hands-free or push-to-talk
• Video Monitor: 3.5” direct view TFT color LCD
• Door Release: N/O or N/C, programmable per station 24V AC/DC (500mA max.)
• Wiring: CAT-5e UTP-4 homerun from each station to CEU
• Distance: Door station to CEU: 980’ Master station to CEU: 980’
• CO Tel Adaptor: Viking Model K-1900-5 Programmable Dialer
