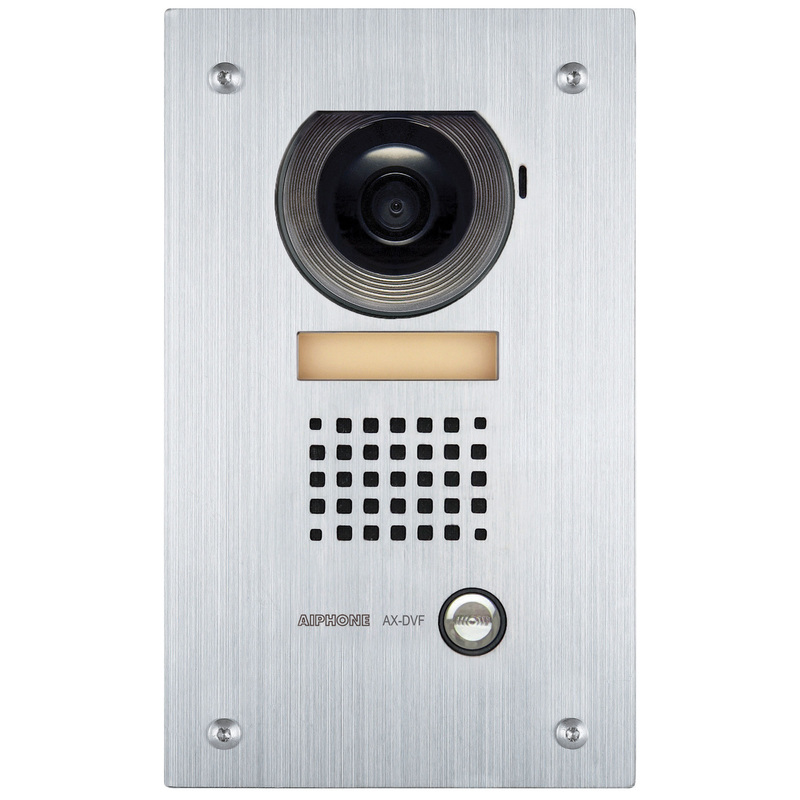

Aiphone AX-DVF Door Station

Aiphone AX-DVF Door Station delivers a robust and reliable solution for your security and communication needs. This flush mount video door station features a stainless steel faceplate that is both vandal and weather-resistant, making it ideal for outdoor installation in various environments. Supporting up to 8 interior master stations and 120 door or interior stations, the AX Series is designed for scalability and flexibility, ensuring it meets diverse specifications. All components utilize CAT-5e/6 wiring, allowing for straightforward installation with a homerun from each station to the central equipment unit (CEU). The door station is equipped with a 3.5" direct view TFT color LCD for clear video monitoring. It features a programmable tremolo call tone, adjustable between 10 and 600 seconds, with the option for an infinite duration. Users can easily select a station to call, with the ability to communicate hands-free or via push-to-talk functionality. Additionally, the door station supports door release functions (N/O or N/C) and operates on a 24V DC power source. With a maximum distance of 980 feet from the door station to the CEU, it ensures comprehensive coverage. Backed by a 1-year limited warranty, the Aiphone AX-DVF is a reliable choice for both commercial and residential applications.

Door Station

Flush Mount Video Door Station, Vandal and Weather Resistant, Stainless Steel Faceplate

The AX Series supports up to 8 interior master stations and 120 door or interior stations. All components are wired using CAT-5e/6 cable. A wide variety of system components are available to meet almost any specification.

Supports up to 8 interior master stations and 120 door or interior stations.

All components use CAT-5e wiring homerun from each station and has two talk channels.

• Power Source ; 24V DC - Use two PS-2420UL (110V AC) per system
• Door Station Calling: Tremolo call tone programmable from 10-600 seconds, or infinite. LCD monitor remains on for duration of call tone up to 10 minutes max.
• Master Station Calling: Select station to call, pretone sounds, then speak hands-free or push-to-talk
• Video Monitor: 3.5” direct view TFT color LCD
• Door Release: N/O or N/C, programmable per station 24V AC/DC (500mA max.)
• Wiring: CAT-5e UTP-4 homerun from each station to CEU
• Distance: Door station to CEU: 980’ Master station to CEU: 980’
• CO Tel Adaptor: Viking Model K-1900-5 Programmable Dialer
