Aiphone AXW-AVT AV Transmitter

Aiphone AXW-AVT Audio/Video Transmitter offers a robust solution for comprehensive communication in commercial settings. This alternative connection adaptor is designed to support up to 8 interior master stations and an impressive 120 door or interior stations, all connected via CAT-5e/6 cable for reliable performance. The AX Series features two talk channels, ensuring seamless communication across your system. It operates on a power source of 24V DC, requiring two PS-2420UL (110V AC) units per installation. The door station boasts a programmable tremolo call tone that can be set from 10 to 600 seconds or even infinite, with an LCD monitor that remains active for up to 10 minutes during a call. The user-friendly master station allows you to select a station to call, with a pretone notification before engaging in hands-free or push-to-talk conversation. The 3.5" direct view TFT color LCD enhances visibility, while the door release function can be programmed for N/O or N/C settings. With a wiring distance capability of 980 feet from both door and master stations to the Central Equipment Unit (CEU), the AXW-AVT is ideal for expansive setups. Backed by a 1-year limited warranty, this transmitter is a reliable choice for your audio/video security needs.

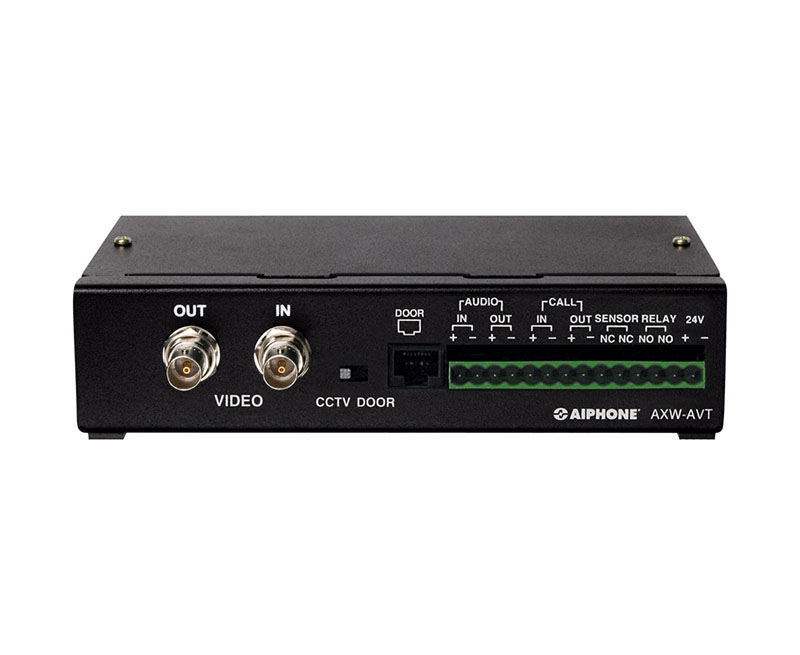

Audio/Video Transmitter

Alternative Connection Adaptor - Transmitter

The AX Series supports up to 8 interior master stations and 120 door or interior stations. All components are wired using CAT-5e/6 cable. A wide variety of system components are available to meet almost any specification.

Supports up to 8 interior master stations and 120 door or interior stations.

All components use CAT-5e wiring homerun from each station and has two talk channels.

• Power Source ; 24V DC - Use two PS-2420UL (110V AC) per system
• Door Station Calling: Tremolo call tone programmable from 10-600 seconds, or infinite. LCD monitor remains on for duration of call tone up to 10 minutes max.
• Master Station Calling: Select station to call, pretone sounds, then speak hands-free or push-to-talk
• Video Monitor: 3.5” direct view TFT color LCD
• Door Release: N/O or N/C, programmable per station 24V AC/DC (500mA max.)
• Wiring: CAT-5e UTP-4 homerun from each station to CEU
• Distance: Door station to CEU: 980’ Master station to CEU: 980’
• CO Tel Adaptor: Viking Model K-1900-5 Programmable Dialer
