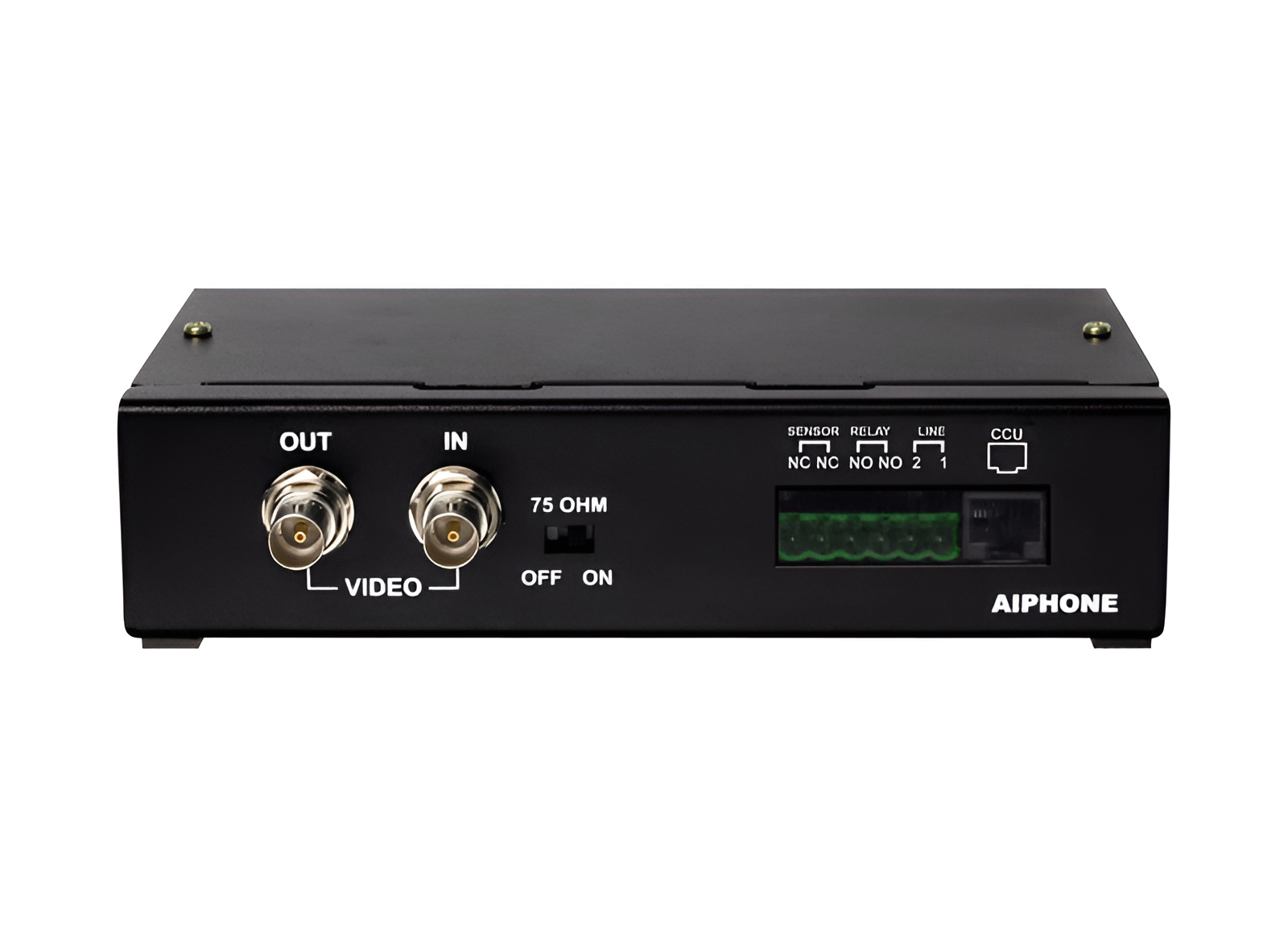

Aiphone AXW-AZ CCTV Input Module

Aiphone AXW-AZ CCTV Input Module seamlessly integrates CCTV camera functionality with audio door station capabilities, making it an essential addition to any security system. This module supports up to 120 door or interior stations and accommodates up to 8 interior master stations, ensuring extensive coverage for commercial applications. All components connect using CAT-5e/6 cable, which simplifies installation while providing reliable performance. The AXW-AZ features a programmable tremolo call tone that can be customized from 10 to 600 seconds, with an option for an infinite duration. The LCD monitor remains active during the call, providing visual feedback for up to 10 minutes. Users can select specific stations to call, utilizing hands-free or push-to-talk communication options for enhanced convenience. Powered by a 24V DC source, the module requires two PS-2420UL power supplies and supports door release functionality, programmable per station. With a compact design measuring 1.63" in height, 4" in length, and 7" in width, the unit is perfect for surface desk installation in commercial settings. Enjoy peace of mind with a 1-year limited warranty and effective distance coverage of up to 980 feet from the door station to the Control Equipment Unit (CEU). Elevate your security system with the Aiphone AXW-AZ CCTV Input Module.

CCTV Input Module

Adaptor For CCTV Camera And Audio Door Station

The AX Series supports up to 8 interior master stations and 120 door or interior stations. All components are wired using CAT-5e/6 cable. A wide variety of system components are available to meet almost any specification.

Supports up to 8 interior master stations and 120 door or interior stations.

All components use CAT-5e wiring homerun from each station and has two talk channels.

• Power Source ; 24V DC - Use two PS-2420UL (110V AC) per system
• Door Station Calling: Tremolo call tone programmable from 10-600 seconds, or infinite. LCD monitor remains on for duration of call tone up to 10 minutes max.
• Master Station Calling: Select station to call, pretone sounds, then speak hands-free or push-to-talk
• Video Monitor: 3.5” direct view TFT color LCD
• Door Release: N/O or N/C, programmable per station 24V AC/DC (500mA max.)
• Wiring: CAT-5e UTP-4 homerun from each station to CEU
• Distance: Door station to CEU: 980’ Master station to CEU: 980’
• CO Tel Adaptor: Viking Model K-1900-5 Programmable Dialer
