Aiphone C-123LW Dual Master Chime Communication Set

Aiphone C-123LW Dual Master Chime Com Set offers a seamless door communication solution tailored for both commercial and residential applications. This reliable system features one door station and two master units, ensuring that you can easily communicate with visitors and manage door release activation from multiple locations. The C-123L allows for open voice door answering, with an adjustable communication volume that enhances user experience. Additionally, it includes a 20-second automatic turn-off feature to conserve power. The door call is indicated by a distinct two-tone chime, and communication is straightforward: simply press the TALK button to respond, and release it to listen. This intercom system operates on a 6V DC power source, which can be powered using either the SKK-620 adapter or four "C" batteries. The wiring requirements include Aiphone #822202 or #821802, with a maximum distance of 245 feet for 22 AWG and 490 feet for 18 AWG wiring. The contact rating for door release is 50V AC at 1A, providing robust functionality. Designed for surface wall mounting, the C-123LW is an excellent choice for enhancing security and communication at your entry points. Experience the convenience and efficiency of Aiphone’s advanced intercom technology.

DUAL MASTER CHIME COM SET

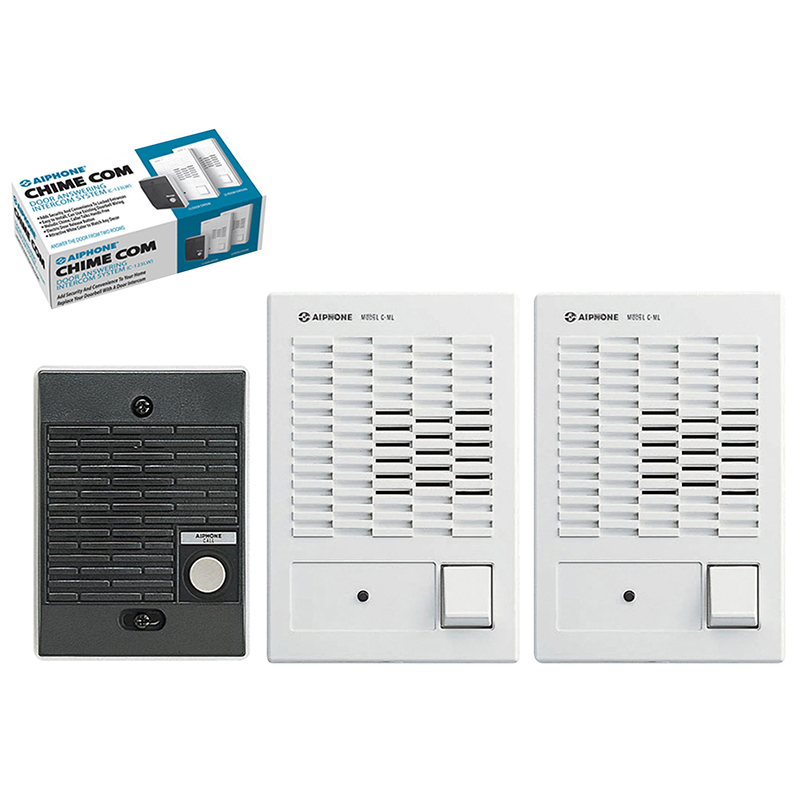

Dual Master Chime Com Set, 1 Door, 2 Masters, DAK-2S

The C-123L are door answering systems providing audio communication with the door station, as well as door release activation

Provides audio communication with door station and door release activation.

The C-123L has open voice door asnwering and adjustable communication volume as well as a 20 second automatic turn off.

• Power Source: 6V DC - Use SKK-620 or 4 "C" Batteries
• Communication: Door calls in with 2-tone chime, not adjustable, press TALK button to reply, release to listen, power automatically shuts off circuit
• Door Release: Contact rating: 50V AC @ 1A
• Wiring: Door to master: 2-cond., overall shield Between masters: 2-cond., overall shield
• Distance: Door to farthest master: 245’(22AWG) 490’(18AWG)
• Wire Type: Aiphone #822202  or Aiphone #821802
