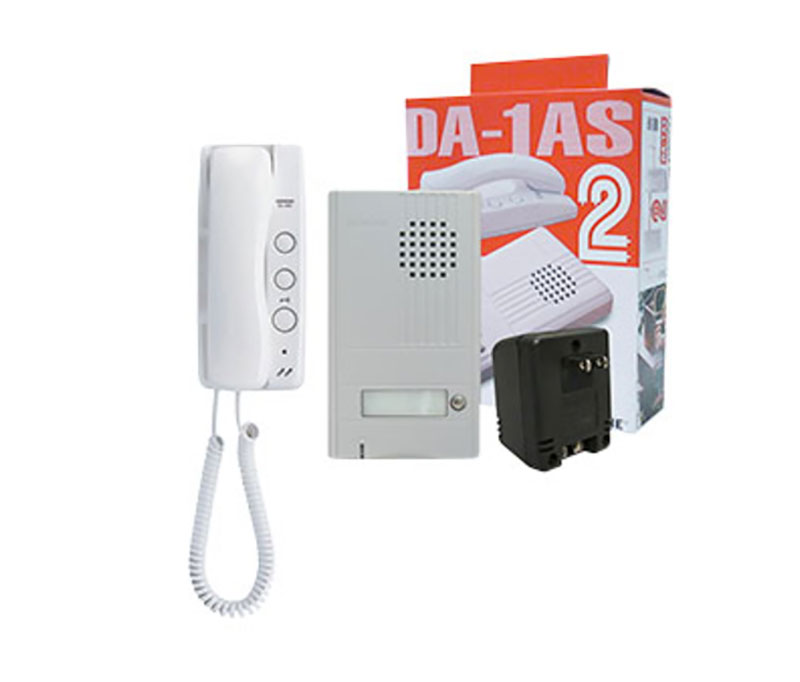

Aiphone DA-1AS Door Phone Set with Power Cord

Aiphone DA-1AS Door Phone Set with Power Cord offers a reliable and efficient communication solution for commercial settings. This silver door phone set is designed for surface wall mounting and features built-in release contacts, ensuring seamless access control directly from the handset. The system operates on a 15V AC power source, using the compatible PT-1211C transformer for optimal performance. User-friendly operation is a hallmark of the DA Series, allowing users to press and hold a button to initiate communication. The door release function is powered directly by the door station, eliminating the need for an additional transformer. Additionally, the service button can control external devices, while the call tone volume control includes a mute indicator for added convenience. The wiring requirements are straightforward, utilizing a 2-cond overall shield from the door to the master unit, with a maximum distance of 180 feet (22AWG) or 500 feet (18AWG). Suitable for both commercial environments and residential applications, the Aiphone DA-1AS ensures clear voice communication and enhanced security. With a robust design and practical features, it is an excellent choice for any building professional or knowledgeable homeowner seeking an effective door entry system.

DOOR PHONE SET W/POWER CORD

Silver Door Phone Set W/Power Supply

The DA Series a door entry system with handset communication has built-in release contacts at the door.

Handset Communication that has built-in release.

The door release is powered by door station without the need of an additonal transformer. The service button is for controlling an external device and the call tone volume control has a mute indcator.

• Power Source:15V AC - Use AC transformer PT-1211C, 120V
• Communication: Press and hold down button to call
• Door Release: Contact rating: 16V AC, 20Ω min. resistance, or use EL-12S only
• Wiring: Door to master: 2-cond., overall shield
• Distance: Door to master: 180’(22AWG) 500’(18AWG)
• Wire Type: Aiphone #822202
