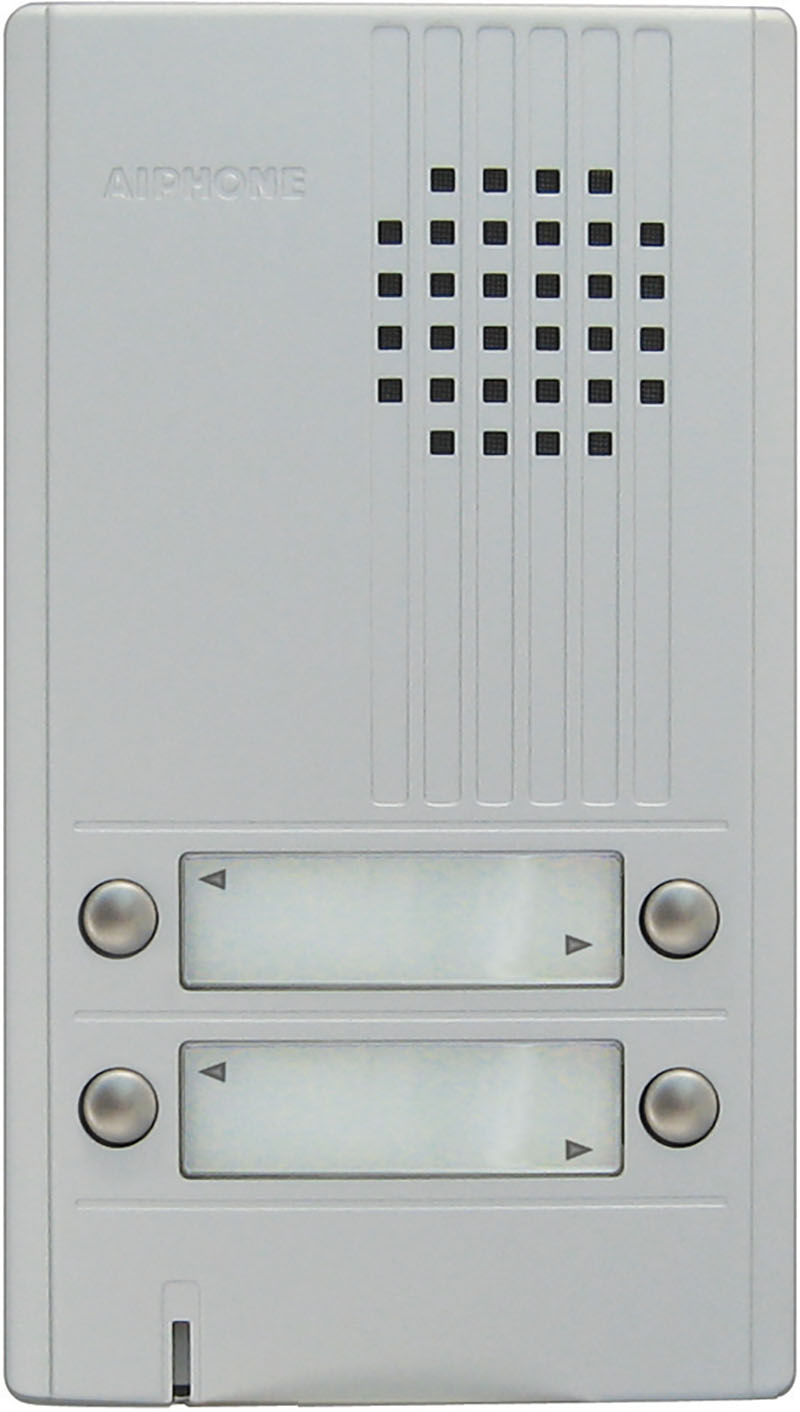

Aiphone DA-4DS DA Series 4-Call Door Station

Aiphone DA-4DS 4-Call DA Series Door Station offers a reliable and efficient door entry communication solution tailored for commercial environments. This sleek silver door station features a handset communication system, allowing users to communicate clearly with visitors while providing built-in release contacts at the door, eliminating the need for additional transformers. Designed for ease of use, the DA-4DS allows users to simply press and hold the button to initiate a call. The door release is powered directly by the door station, ensuring convenience and efficiency. Additionally, the service button is available to control an external device, enhancing functionality. The unit includes a call tone volume control with a mute indicator, allowing for customizable sound levels. This door station operates on a power source of 15V AC, utilizing the recommended PT-1211C transformer. It supports a communication distance of up to 180 feet with 22AWG wiring and up to 500 feet with 18AWG. The surface-mounted design makes installation straightforward, with dimensions of 6-7/8" x 3-15/16" x 7/8". Ideal for lobby settings, the Aiphone DA-4DS ensures secure and efficient access control, making it a valuable addition to any commercial property.

4-CALL DA SERIES DOOR STATION

4-Call DA Series Door Station, Silver

The DA Series a door entry system with handset communication has built-in release contacts at the door.

Handset Communication that has built-in release.

The door release is powered by door station without the need of an additonal transformer. The service button is for controlling an external device and the call tone volume control has a mute indcator.

• Power Source:15V AC - Use AC transformer PT-1211C, 120V
• Communication: Press and hold down button to call
• Door Release: Contact rating: 16V AC, 20Ω min. resistance, or use EL-12S only
• Wiring: Door to master: 2-cond., overall shield
• Distance: Door to master: 180’(22AWG) 500’(18AWG)
• Wire Type: Aiphone #822202
