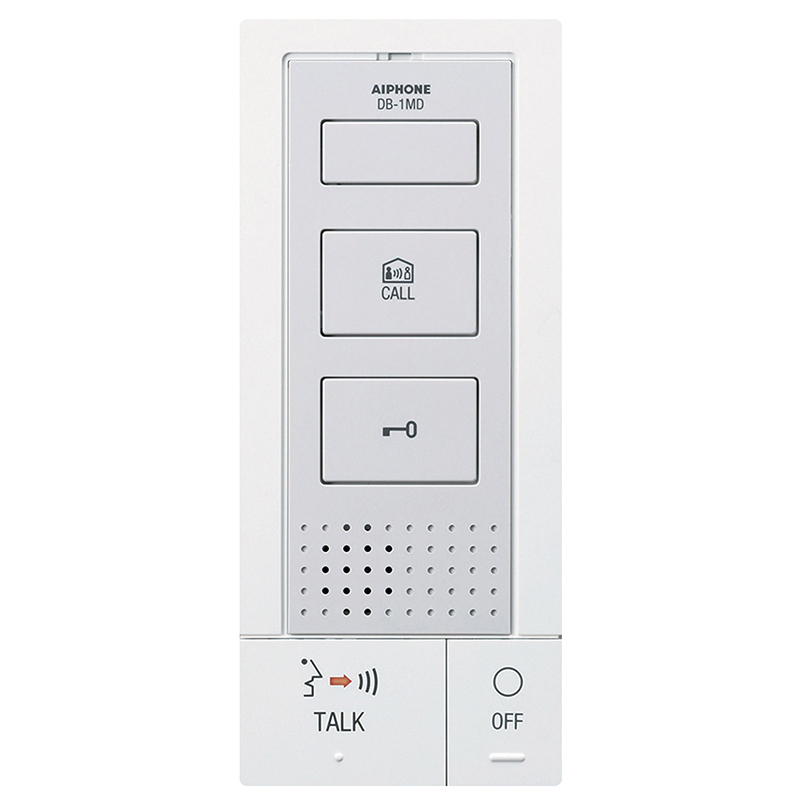

Aiphone DB-1MD Master Station for DB Series provides a reliable hands-free communication solution for entry security in both single and multi-tenant buildings. This versatile intercom system features a built-in door release, allowing seamless access control at your fingertips. Designed for commercial applications, it supports up to five stations per door call button, with the option for hands-free (VOX) or push-to-talk (PTT) communication, ensuring easy and effective interaction. The DB-1MD operates on a 15V AC power source and requires an AC transformer PT-1211C. Its wiring configuration includes a 2-cond wire from the door to the master and a 4-cond wire for communication between the master and sub-masters, covering distances up to 1,020 feet depending on the wire gauge. This unit is surface-mounted, with compact dimensions of 7-5/16" x 3-1/8" x 1-1/16", making it suitable for various settings without compromising space. The door release feature supports a contact rating of 9.5 to 20V AC, ensuring compatibility with various door systems. With its robust design and reliable performance, the Aiphone DB-1MD Master Station is an indispensable addition to any entry security setup.
MASTER STATION FOR DB SERIES
Hands-Free Master Station
The DB series single and multi-tenant hands-free entry security intercom with door release built into the door station.
Both single and multi-tenant entry security intercom.
DB system can have up to 5 stations per door call button and internal communication can be hands free or push-to-talk.
Application: Hands-Free
Commercial Residential: Commercial
Communication: Telephone Entry
Door Panel Mount: Surface
Door Release: Yes
Installation: Commercial
Internal Communication: Yes
Operating Voltage: 12 VAC
Pack Qty: 1
Series: DB Hands-Free Two Wire Door System
Station Mount: Surface Wall
Station Size: 7-5/16"x3-1/8"x1-1/16"
Station Type: Handset
Subtype: Intercoms
Type: Intercoms
Unit of Measure: Each
Upc: 7.90143E+11
Wire Required: 871804
