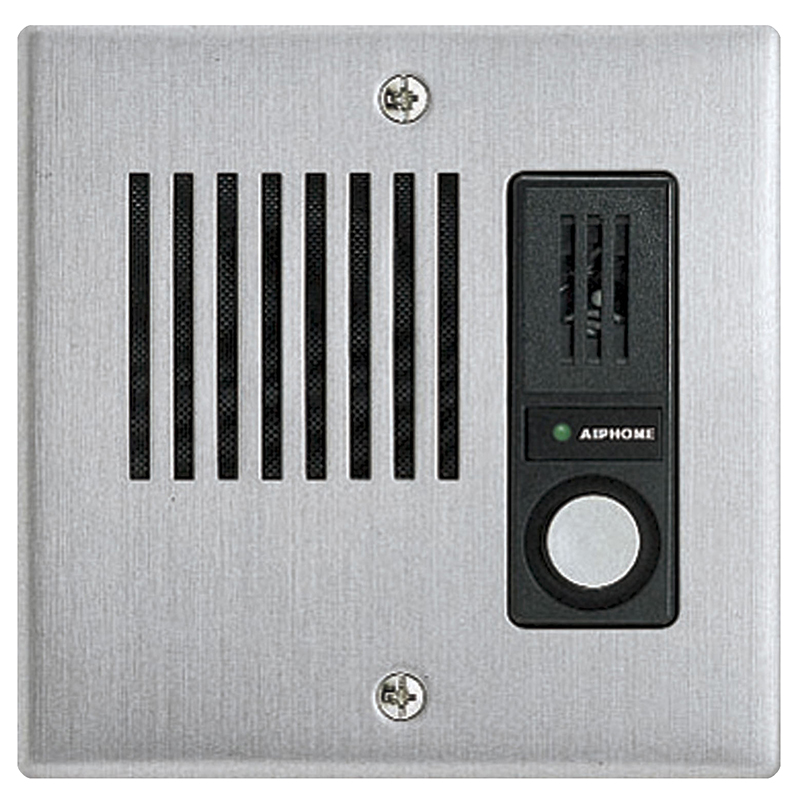

Aiphone IE-JA Door Station

Aiphone IE-JA Door Station offers a reliable and efficient solution for your communication needs. This flush mount audio door station is designed with a weather-resistant stainless steel cover, ensuring durability and elegance for any commercial environment. The IE Series features a chime tone intercom system that allows for seamless communication between one door station and three inside stations, enhancing your security setup. Equipped with a 4-tone chime that is volume adjustable, the IE-JA alerts you to visitors effectively. Once the doorbell rings, simply pick up the handset to engage in conversation, or press the CALL button to reach other inside stations, complete with a pre-tone and voice functionality. For added convenience, this unit includes a door release feature with a contact rating of 24V AC/DC at 500mA. The Aiphone IE-JA operates on a power source of 12-16V AC or 12-24V DC, making it versatile for various installations. This intercom system is not only weatherproof but also designed for flush mounting, providing a sleek appearance. With a one-year limited warranty, you can trust the quality and reliability of this essential security accessory. Its dimensions are 4.5" in height, 4.5" in length, and 4.56" in width, making it compact yet functional for any entryway.

Door Station

Flush Mount Audio Door Station, Weather Resistant, Stainless Steel Cover

Chime tone intercom system with door release.

The IE Series has a chime tone cutout at substation and has 1 door station and 3 inside stations.

• Power Source: 12-16V AC - Use AC transformer PT-1210N 12~24V DC, 160mA
• Communication: Door calls in with 4-tone chime (vol. adjustable), pick up handset to reply, press CALL to call other inside stations with pre-tone and voice
• Door Release:Contact rating: 24V AC/DC, 500mA

Resources

• Chime Tone Intercom, IE-1AD(U) Instructions
• IE-8MD 6-Call Chime Tone Intercom Instructions
• IE-SSA, IE-SSR Instructions
• IE/IF Series Door Station, Audio Only, Instructions
• IER-2 Installation and Operation Manual
