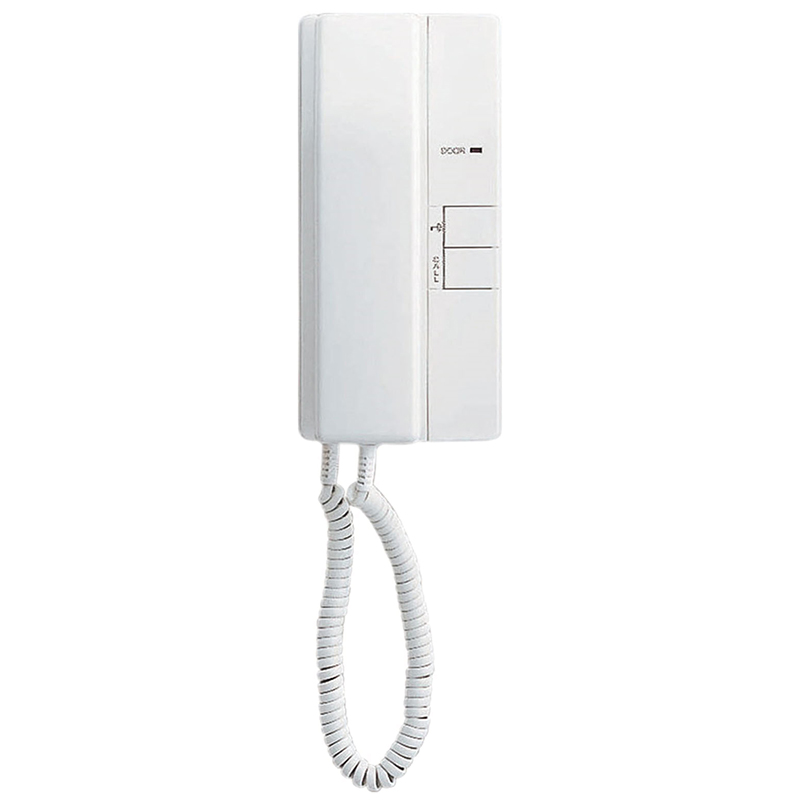

Aiphone IEH-1CD Additional Handset for IE-1GD/2AD

Aiphone IEH-1CD ADD'L HANDSET FOR IE-1GD/2AD offers a reliable solution for enhancing your intercom system with added convenience and functionality. This handset serves as a sub master for the IE-1GD/2AD models, allowing the connection of up to four sub handsets to a single master unit. Equipped with a private communication feature, the handset includes a call indicator LED and a door release button, streamlining communication and access control. The IEH-1CD is part of the IE Series, which features a chime tone intercom system with a door release option. When a visitor presses the door station, a four-tone chime alerts you, with adjustable volume to suit your preference. You can easily respond by picking up the handset or press the CALL button to reach other inside stations, ensuring seamless communication throughout your space. Designed for surface wall mounting, this unit operates on a power source of 12-16V AC or 12-24V DC, requiring 160mA. The contact rating for the door release is 24V AC/DC at 500mA, making it suitable for both commercial and residential applications. The compact size of 8-1/4"x3-13/16"x2-11/16" allows for easy installation in various settings, while the required wiring includes 822202 or 821802. Enhance your intercom experience with the Aiphone IEH-1CD.

ADD'L HANDSET FOR IE-1GD/2AD

Handset Sub Master For IE-1GD/2AD

Up to four sub handsets can be connected to a master. The IEH-1CD features a handset for private communication, call indicator LED and a door release button.

Chime tone intercom system with door release.

The IE Series has a chime tone cutout at substation and has 1 door station and 3 inside stations.

• Power Source: 12-16V AC - Use AC transformer PT-1210N 12~24V DC, 160mA
• Communication: Door calls in with 4-tone chime (vol. adjustable), pick up handset to reply, press CALL to call other inside stations with pre-tone and voice
• Door Release:Contact rating: 24V AC/DC, 500mA
