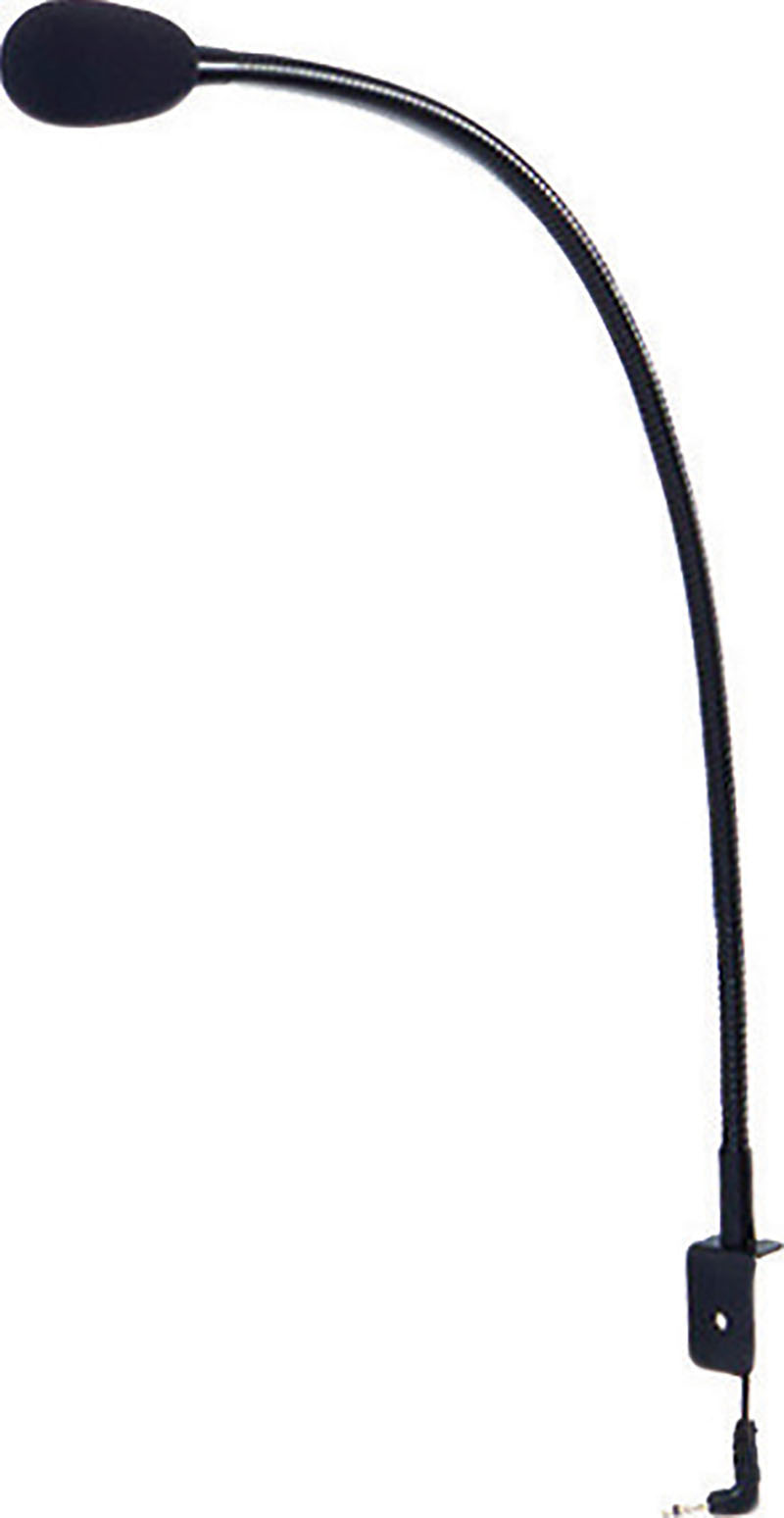

Aiphone IME-100 IM Gooseneck Microphone

Aiphone IME-100 IM Gooseneck Microphone offers an effective solution for hands-free communication at cashier windows, functioning seamlessly within the IM Security Window System. Designed for use in commercial settings, this microphone enables VOX-operated communication between customers and employees across bulletproof glass, ensuring safety without sacrificing clarity. The IME-100 features an adjustable, flexible gooseneck design that allows for optimal positioning, enhancing user experience. Additionally, it supports headset usage, providing versatility in communication methods. With a power source of 24V DC, it operates efficiently with a standby current of 120mA and a maximum of 780mA. Communication quality is paramount, as the microphone boasts voice-actuated (VOX) capabilities, delivering a transmit output of 3W at 4 ohms and a receive output of 1.5W at 16 ohms, ensuring clear audio transmission. The headset compatibility, with a 3.5mm plug, accommodates impedances of 32 ohms, making it suitable for various user needs. Installation is straightforward with required wiring using Aiphone #822202 or #821802, connecting seamlessly from DR-100 to MU-100. Elevate your security communication system with the Aiphone IME-100, a reliable choice for enhancing customer service in any commercial environment.

IM GOOSENECK MICROPHONE

Cashier Window Gooseneck Microphone For IM System

The IM Series is a security window system that provides VOX operated hands-free communication between a customer and an employee on opposite sides of bullet proof glass. The system uses a speaker driver and acoustic tubing to provide communication without compromising the integrity of the glass.

Provides VOX operated hands-free communication.

Has an adjustable, flexible gooseneck microphone and also a headset can be used. The IM System is used between a customer and employee on opposite sides of bullet proof glass.

• Power Source: 24V DC, 120mA standby, 780mA max. Use PS-2420UL
• Communication: Voice-actuated communication (VOX) or simplex Transmit output: 3W 4Ω Receive output: 1.5W 16Ω Impedance: 32Ω
• Headset: Φ3.5mm plug - Impedance: 32Ω Rated input: 40mW or more - Max. input: 100mW or more
• External & Paging Speaker: Impedance: 4 to 8Ω Rated input: 3W or more - Max. input: 6W or more
• Wiring: DR-100 to MU-100: 2 x 2-cond., overall shield
• Wire Type: Aiphone #822202 or Aiphone #821802
