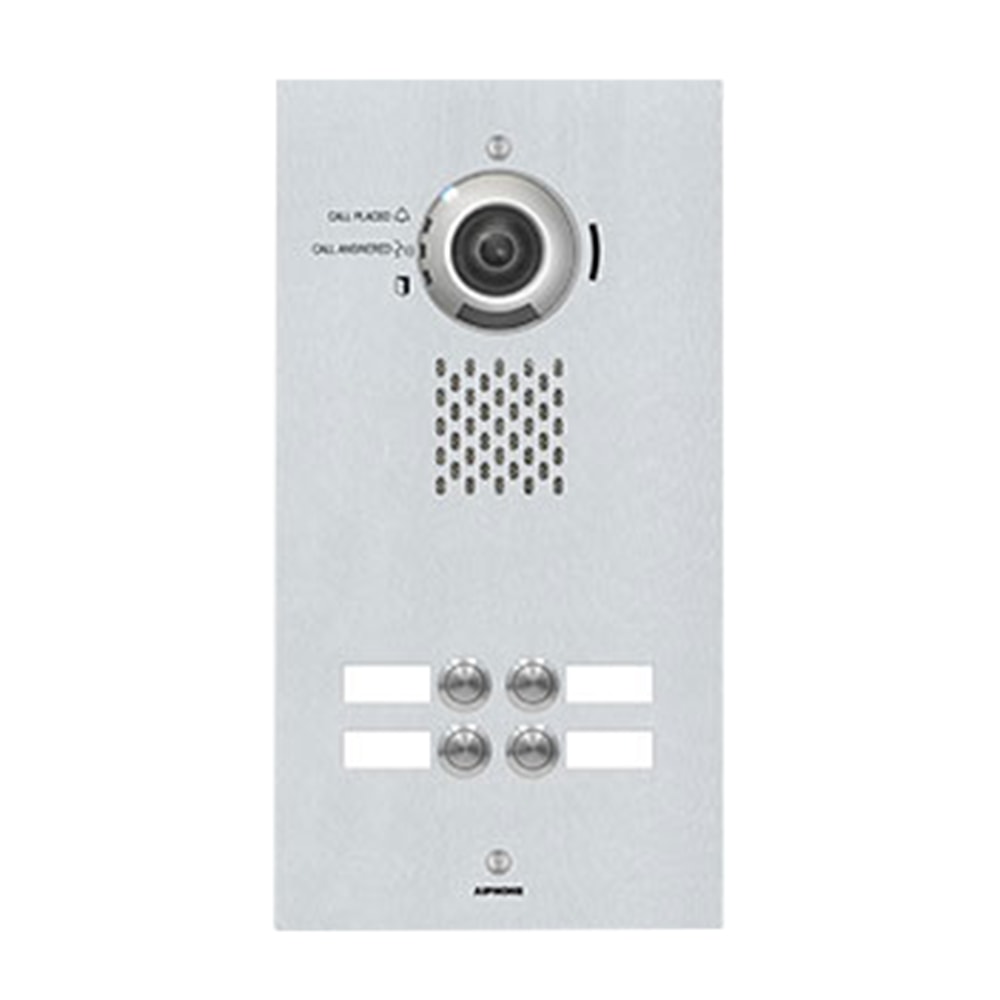

Aiphone IX-DVF-4A 4-Button Video Door Station

Aiphone IX-DVF-4A 4-BTN VIDEO DR ST is a sophisticated IP Video Door Station designed to enhance security and communication for commercial environments. Featuring a sleek satin stainless steel finish, this unit integrates seamlessly into modern architectural designs while providing robust functionality. This advanced video entry system includes four call buttons, allowing for efficient visitor management. With the capability for hands-free communication (VOX), push-to-talk simplex options, or full-duplex handset use, users can easily engage with visitors. The 3.5-inch color LCD display delivers clear video feed, supported by a high-quality 1/4" color CMOS camera that captures a wide view area. The IX-DVF-4A operates on Power Over Ethernet (PoE), ensuring easy installation without the need for additional power sources. Its versatile network interface supports a variety of protocols, providing reliable connectivity. The door release function is programmable and features a dry contact option, enhancing security flexibility. Designed for durability, this door station is vandal resistant and suitable for flush mounting. The Aiphone IX-DVF-4A is the perfect addition to any security-conscious facility, providing essential features for internal communication, emergency announcements, and remote door unlocking capabilities.

4-BTN VIDEO DR ST

IP Video Door Station with 4 Call Buttons, Satin Stainless Steel Finish

The IX Series is a network-based communication and security system featuring video entry security, internal communication, emergency stations, and paging.

Features video entry security, internal communication, and emergency stations.

All units and apps in the systems can unlock doors remotely on a network, assist onsite visitors from an offsite location, broadcast emergency announcements, and communicate using a PoE network.

• Power Source: Power Over Ethernet (802.3af)
• Network Interface: 10 BASE‑T / 100 BASE‑TX Ethernet (RJ-45)
• Network Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP,
• RTP, RTCP, IGMP, MLD, SMTP, DHCP, NTP, DNS
• Bandwidth Usage: G.711: 64Kbps x 2 per call,; 64Kbps per station in paging group; H.264: 24Kbps ~ 2,048Kbps
• Communication: Hands‑free (VOX), push‑to‑talk (simplex), or handset (full-duplex)
• Video Display: 3‑1/2" color LCD
• Camera: Type: 1/4" color CMOS; View Area: 2'2" vert. x 3'1" horiz. at 20"
• Video Stream: ONVIF Profile S
• Door Release: Programmable Form C dry contact, 24V AC/ DC,; 500mA – use EL‑12S (use RY‑24L for larger contact rating, which requires 24V DC power supply) or use RY-IP44 with 4 multipurpose relays
• Wire Type: CAT‑5e or CAT‑6
• Distance: Door Station or RA Station to Network Node: 330', Master Station to Network Node: 330'
