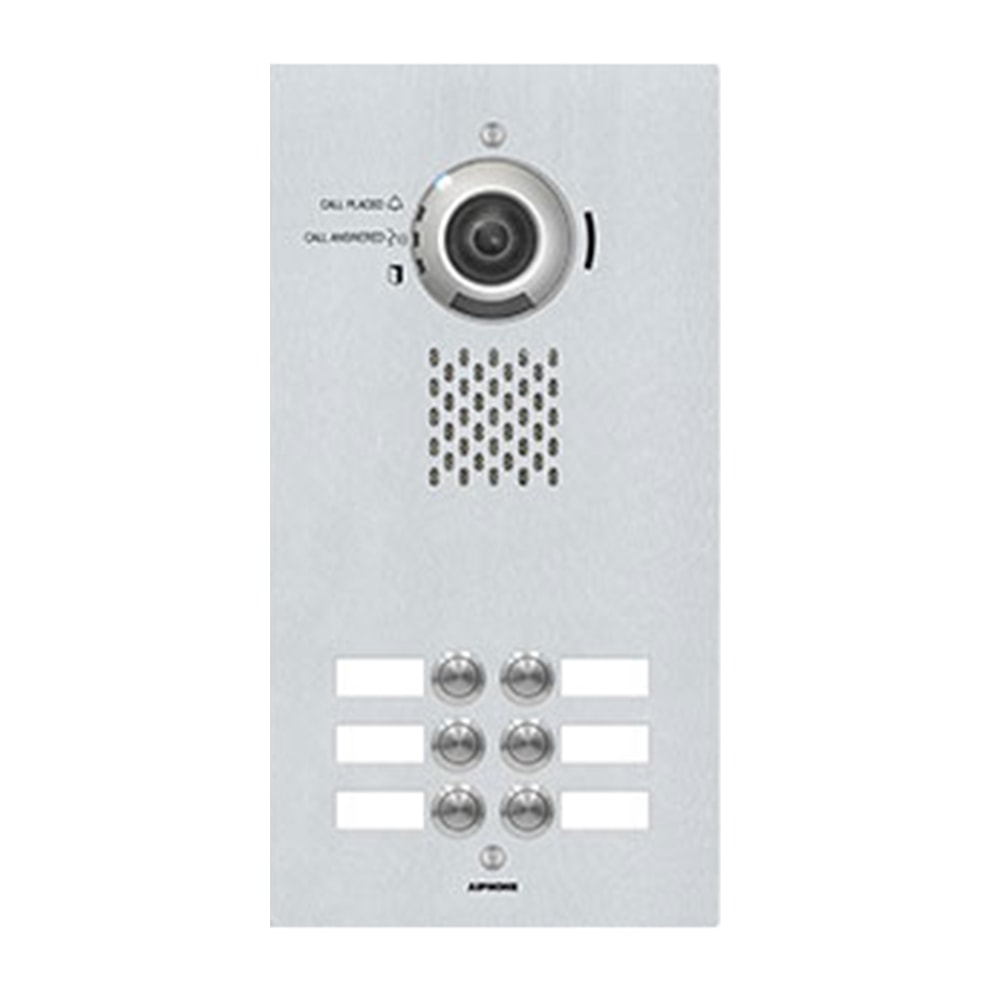

Aiphone IX-DVF-6 6-Button Video Door Station

Aiphone IX-DVF-6 6-BTN VIDEO DR ST is an advanced IP video door station designed to enhance security and communication for both commercial and residential applications. Featuring a sleek satin stainless steel finish, this unit is not only aesthetically pleasing but also vandal-resistant, ensuring durability in high-traffic areas. Equipped with six call buttons, the IX-DVF-6 allows for effortless visitor access management. It integrates seamlessly into a network-based communication system, providing video entry security, internal communication, and emergency station functionality. Users can unlock doors remotely, assist visitors offsite, and broadcast emergency announcements-all through a Power over Ethernet (PoE) connection. The station boasts a 3½" color LCD display and a 1/4" color CMOS camera, offering a clear view with a horizontal field of vision of 3'1" at a distance of 20". Communication options include hands-free, push-to-talk, or handset modes, catering to various user preferences. With a bandwidth capacity accommodating different call types, the IX-DVF-6 ensures smooth and reliable operation. Installation is straightforward, requiring CAT-5e or CAT-6 wiring, and supports distances up to 330 feet for both door and master stations. Elevate your security infrastructure with the Aiphone IX-DVF-6, where technology meets convenience.

6-BTN VIDEO DR ST

IP Video Door Station with 6 Call Buttons, Satin Stainless Steel Finish

The IX Series is a network-based communication and security system featuring video entry security, internal communication, emergency stations, and paging.

Features video entry security, internal communication, and emergency stations.

All units and apps in the systems can unlock doors remotely on a network, assist onsite visitors from an offsite location, broadcast emergency announcements, and communicate using a PoE network.

• Power Source: Power Over Ethernet (802.3af)
• Network Interface: 10 BASE‑T / 100 BASE‑TX Ethernet (RJ-45)
• Network Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP,
• RTP, RTCP, IGMP, MLD, SMTP, DHCP, NTP, DNS
• Bandwidth Usage: G.711: 64Kbps x 2 per call,; 64Kbps per station in paging group; H.264: 24Kbps ~ 2,048Kbps
• Communication: Hands‑free (VOX), push‑to‑talk (simplex), or handset (full-duplex)
• Video Display: 3‑1/2" color LCD
• Camera: Type: 1/4" color CMOS; View Area: 2'2" vert. x 3'1" horiz. at 20"
• Video Stream: ONVIF Profile S
• Door Release: Programmable Form C dry contact, 24V AC/ DC,; 500mA – use EL‑12S (use RY‑24L for larger contact rating, which requires 24V DC power supply) or use RY-IP44 with 4 multipurpose relays
• Wire Type: CAT‑5e or CAT‑6
• Distance: Door Station or RA Station to Network Node: 330', Master Station to Network Node: 330'
