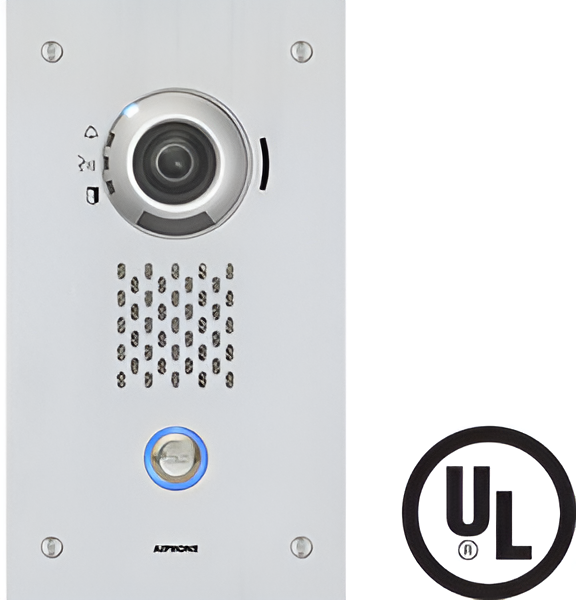

Aiphone IX-DVF Aiphone Corporation

The IX-DV (surface mount) and IX-DVF (flush mount) are weather resistant, IP video door stations. They connect to a network using Cat-5e/6 cable and are both SIP compliant. Each station is equipped with a 1.23 megapixel fixed color camera. The camera angle can be vertically adjusted using a lever on the back of the station. The video can be streamed to 3rd party devices using ONVIF Profile S or RTSP. Audio and video can be captured on a microSD™ card. The IX-DV and IX-DVF can be programmed to call up to 20 different stations. There are three different call level selections. The stations have a 600 Ω output that can be used for paging or communication.

Features:

• SIP 2.0 compliant.
• 1.23 megapixel fixed color video camera.
• White LED for low light illumination.
• ONVIF Profile S compliant.
• Camera vertical adjustment + 15°, 0°, or - 8° (manual).
• Slot for microSD™ card (not provided by Aiphone).
• Weather and vandal resistant.
• 2 contact outputs.
• 6 trigger inputs.
• Anodized aluminum (IX-DV), stainless steel (IX-DVF).
• 802.3af PoE compliant.
• RJ45 in/out with PoE pass through (802.3at Type 2 PoE+).

Specifications:

• Power Source: PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL).
• Power Draw: 5.28W.
• Camera: 1/3" CMOS 1.23 megapixel.
• Min. illumination: 5 lux.
• Audio Codec: G.711 (μ-law, A law), G.722.
• Video Codec: H.264/AVC, motion JPEG.
• Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS.
• Port Security: IEEE 802.1X.
• UL Listed: UL 62368-1, cUL 62368-1.
• Operating Temp: - 40° ~ 140°F (- 40° ~ 60°C).
• Protection: IX-DV: IP54, IK08; IX-DVF: IP65, IK08.
• IX-DV Dimensions (HxWxD): 8-1/16" x 4-1/2" x 2-1/16"
• IX-DVF Dimensions (HxWxD): 10-7/16" x 5-7/8" x 2-1/16"

Finishes:

• IX-DV - Anodized Aluminum
• IX-DVF - Stainless Steel

Features

• SIP 2.0 compliant.
• 1.23 megapixel fixed color video camera.
• White LED for low light illumination.
• ONVIF Profile S compliant.
• Camera vertical adjustment + 15°, 0°, or - 8° (manual).
• Slot for microSD™ card (not provided by Aiphone).
• Weather and vandal resistant.
• 2 contact outputs.
• 6 trigger inputs.
• Anodized aluminum (IX-DV), stainless steel (IX-DVF).
• 802.3af PoE compliant.
• RJ45 in/out with PoE pass through (802.3at Type 2 PoE+).
