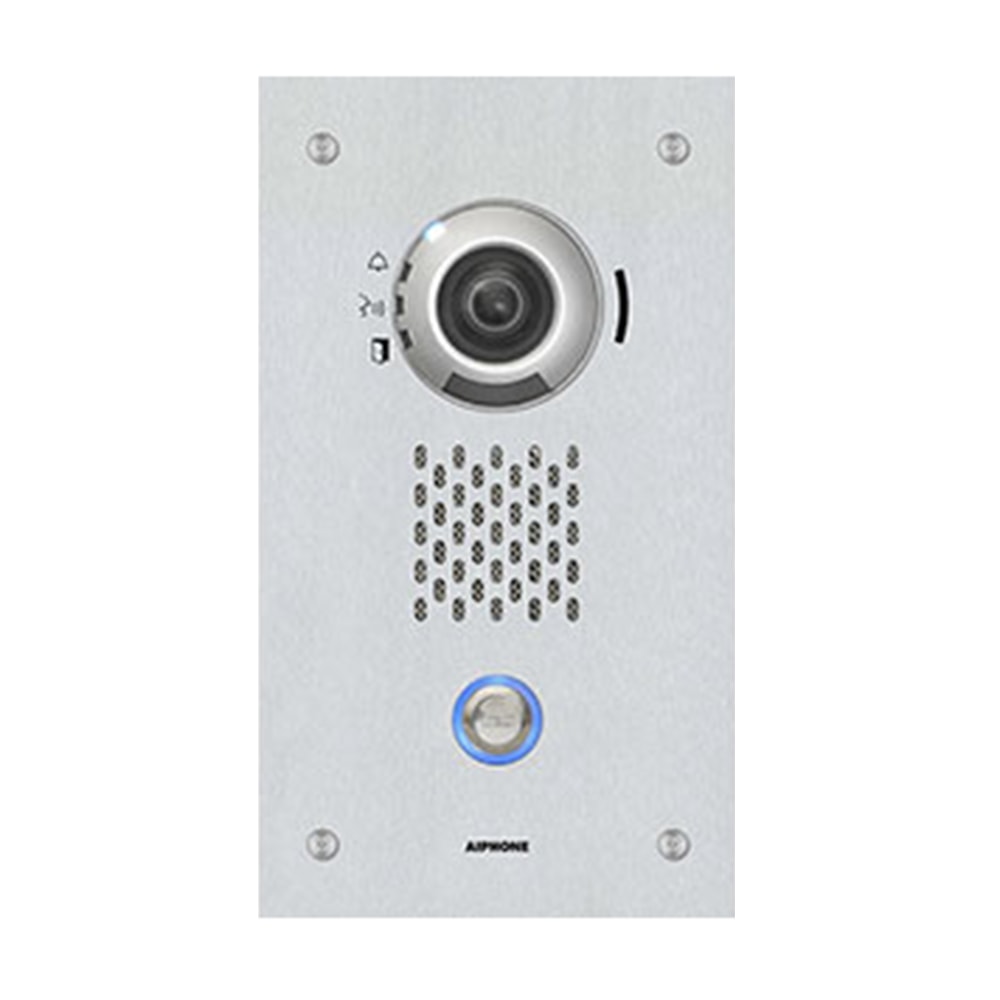

Aiphone IX-DVF-PR IP Video Door Station

Aiphone IX-DVF-PR IP Video Door Station offers a robust solution for modern security and communication needs. This SIP-compatible, flush-mounted unit is crafted from vandal-resistant satin stainless steel, ensuring durability and style. Designed for versatility, the IX Series integrates video entry security, internal communication, and emergency stations into one comprehensive system. Equipped with a 3-1/2" color LCD display and a 1/4" color CMOS camera, the IX-DVF-PR provides clear video streaming with an ONVIF Profile S compatibility. It supports hands-free communication and push-to-talk options, making it user-friendly for all scenarios. With remote door unlocking capabilities, users can assist onsite visitors from afar, enhancing security without compromising convenience. Power over Ethernet (PoE) simplifies installation, requiring only CAT-5e or CAT-6 wiring. The unit supports various network protocols, including IPv4, IPv6, and SIP, ensuring seamless integration into existing networks. With a communication range of up to 330 feet to the network node, it’s ideal for commercial applications. The Aiphone IX-DVF-PR not only enhances security but also provides peace of mind, making it a critical addition to any professional or residential setting.

IP VIDEO DOOR STATION

SIP Compatible Flush Mounted IP Video Door Station Vandal Resistant with Proximity Reader, Satin Stainless Steel Finish

The IX Series is a network-based communication and security system featuring video entry security, internal communication, emergency stations, and paging.

Features video entry security, internal communication, and emergency stations.

All units and apps in the systems can unlock doors remotely on a network, assist onsite visitors from an offsite location, broadcast emergency announcements, and communicate using a PoE network.

• Power Source: Power Over Ethernet (802.3af)
• Network Interface: 10 BASE‑T / 100 BASE‑TX Ethernet (RJ-45)
• Network Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP,
• RTP, RTCP, IGMP, MLD, SMTP, DHCP, NTP, DNS
• Bandwidth Usage: G.711: 64Kbps x 2 per call,; 64Kbps per station in paging group; H.264: 24Kbps ~ 2,048Kbps
• Communication: Hands‑free (VOX), push‑to‑talk (simplex), or handset (full-duplex)
• Video Display: 3‑1/2" color LCD
• Camera: Type: 1/4" color CMOS; View Area: 2'2" vert. x 3'1" horiz. at 20"
• Video Stream: ONVIF Profile S
• Door Release: Programmable Form C dry contact, 24V AC/ DC,; 500mA – use EL‑12S (use RY‑24L for larger contact rating, which requires 24V DC power supply) or use RY-IP44 with 4 multipurpose relays
• Wire Type: CAT‑5e or CAT‑6
• Distance: Door Station or RA Station to Network Node: 330', Master Station to Network Node: 330'
