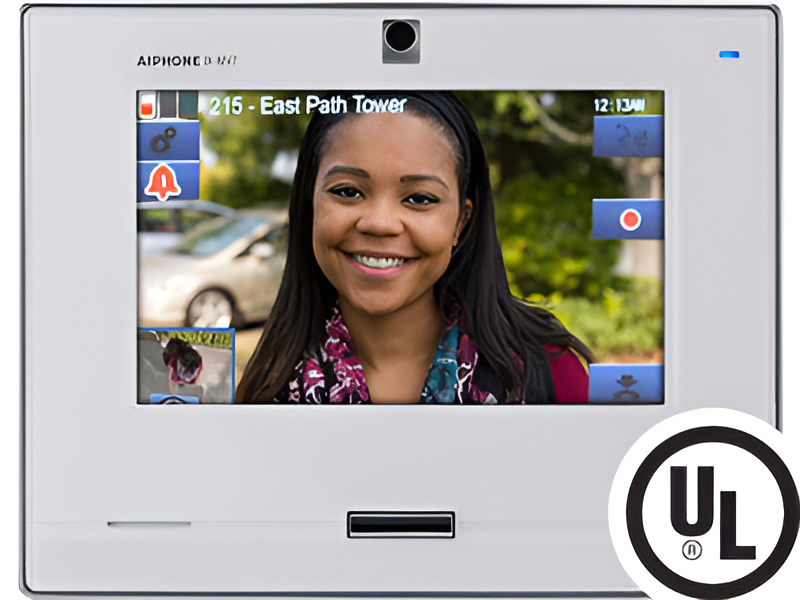

Aiphone IX-MV7-W Aiphone Corporation

IX-MV7 is an IP hands-free master station with a 7" color touchscreen. It can be wall or desk mounted (desk stand included). It connects to a network using Cat-5e/6 cable and is SIP compliant. Audio and video of active conversations can be captured and stored on a microSD™ card. Each master station has an address book of 500 stations and can monitor a single station or scan monitor several stations with-in the address book.

Features:

• 7" TFT color LCD touchscreen.
• Fixed color video camera with privacy shutter.
• SIP 2.0 compliant.
• 500 station address book.
• ONVIF Profile S compliant.
• Multi-angled desk stand (30°, 45°, 60°).
• Slot for microSD™ card (not provided by Aiphone).
• 802.3af PoE compliant.
• 2 contact outputs, 4 trigger inputs.
• 8 Ω .05W speaker output.
• 600 Ω audio input.

Specifications:

• Power Source: PoE (IEEE 802.3af class 0).
• Power Draw: 4.32W.
• Camera: 1/3" CMOS 720p.
• Min. illumination: 5 lux.
• Audio Codec: G.711 (μ-law, A-law), G.722.
• Video Codec: H.264/AVC, Motion JPEG.
• Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS.
• Port Security: IEEE 802.1X.
• UL Listed: UL 62368-1; cUL 62368-1.
• Operating Temp: 32° ~ 104°F (0° ~ 40°C).
• Dimensions (HxWxD): 6-3/4" x 8-11/16" x 1-1/4"

Finishes:

• IX-MV7-B - Black
• IX-MV7-W - White

Features

• 7" TFT color LCD touchscreen.
• Fixed color video camera with privacy shutter.
• SIP 2.0 compliant.
• 500 station address book.
• ONVIF Profile S compliant.
• Multi-angled desk stand (30°, 45°, 60°).
• Slot for microSD™ card (not provided by Aiphone).
• 802.3af PoE compliant.
• 2 contact outputs, 4 trigger inputs.
• 8 Ω .05W speaker output.
• 600 Ω audio input.
