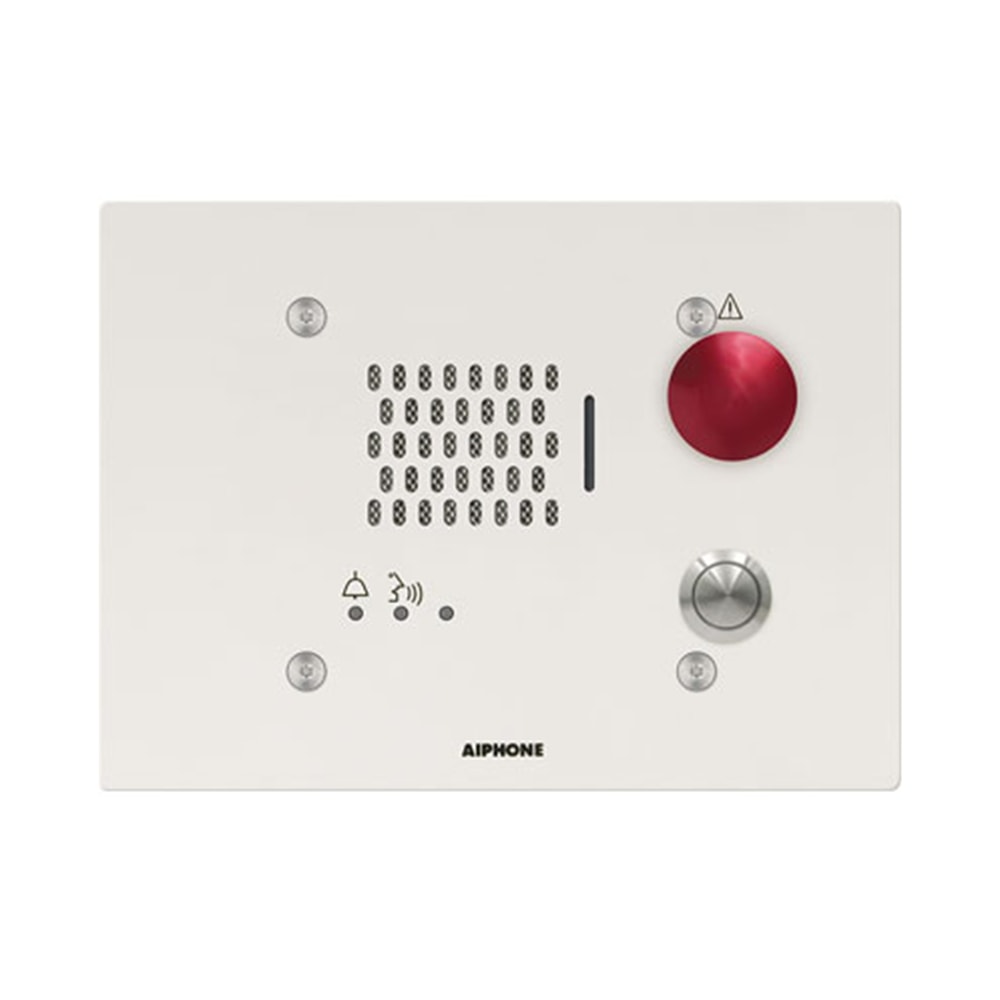

Aiphone IX-NVP2 IP Audio 3-Gang Door Station

Aiphone IX-NVP2 IP Audio 3-Gang Door Station offers a robust solution for modern communication and security needs. Designed with durability in mind, this door station is both weather and vandal resistant, making it an ideal choice for commercial installations. The sleek white power-coated finish enhances its aesthetic appeal while providing two convenient call buttons for easy visitor interaction. Part of the advanced IX Series, this system supports network-based video entry security, internal communication, and emergency stations. With Power Over Ethernet (PoE) functionality, the IX-NVP2 integrates seamlessly into your existing network infrastructure. Communication options are versatile, including hands-free (VOX), push-to-talk (simplex), or full-duplex via handset. The 3-1/2" color LCD display provides clear video images, powered by a 1/4" color CMOS camera with a broad viewing area. The device supports a wide range of network protocols, ensuring compatibility with various systems. Door release capabilities are programmable, allowing customization for different applications. With a reach of up to 330 feet from the network node, the IX-NVP2 is perfect for larger properties. This intercom system not only enhances security but also improves communication efficiency, making it an essential tool for any commercial environment.

IP Audio 3-Gang Door Station

3-Gang Door Station, SIP Compatible, Weather and Vandal Resistant, 2 Call Buttons, White Power-Coared Finish

The IX Series is a network-based communication and security system featuring video entry security, internal communication, emergency stations, and paging.

Features video entry security, internal communication, and emergency stations.

All units and apps in the systems can unlock doors remotely on a network, assist onsite visitors from an offsite location, broadcast emergency announcements, and communicate using a PoE network.

• Power Source: Power Over Ethernet (802.3af)
• Network Interface: 10 BASE‑T / 100 BASE‑TX Ethernet (RJ-45)
• Network Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP,
• RTP, RTCP, IGMP, MLD, SMTP, DHCP, NTP, DNS
• Bandwidth Usage: G.711: 64Kbps x 2 per call,; 64Kbps per station in paging group; H.264: 24Kbps ~ 2,048Kbps
• Communication: Hands‑free (VOX), push‑to‑talk (simplex), or handset (full-duplex)
• Video Display: 3‑1/2" color LCD
• Camera: Type: 1/4" color CMOS; View Area: 2'2" vert. x 3'1" horiz. at 20"
• Video Stream: ONVIF Profile S
• Door Release: Programmable Form C dry contact, 24V AC/ DC,; 500mA – use EL‑12S (use RY‑24L for larger contact rating, which requires 24V DC power supply) or use RY-IP44 with 4 multipurpose relays
• Wire Type: CAT‑5e or CAT‑6
• Distance: Door Station or RA Station to Network Node: 330', Master Station to Network Node: 330'
