Aiphone IX-SOFT PC Master Station for I X Series (Windows)

Aiphone Corporation IX-SOFT PC Master Station for IX Series (Windows) offers a comprehensive software solution for managing communication across the IX Series network. Designed for efficiency, the IX-SOFT allows users to place and receive calls, monitor door stations, and utilize paging features seamlessly from a single PC. The intuitive interface includes an interactive map, enabling quick interaction with door and master stations by selecting them individually or in groups. With 50 programmable speed-dial buttons, call history tracking, and call transfer capabilities, the IX-SOFT ensures streamlined communication for residential and commercial settings. The Line Supervision menu provides real-time monitoring of device functionality and network status, enhancing operational reliability. This software supports a maximum of 499 stations, expandable to 9,998 in larger installations, making it ideal for both small and extensive systems. It features advanced video codecs like H.264/AVC and Motion-JPEG, paired with audio codecs such as G.711 and G.722, ensuring high-quality audio and video streaming. Compatible with various Windows operating systems, including Windows 7 and Windows 10, IX-SOFT requires a single, transferable lifetime license per PC, with optional bundles available. For secure communication, it employs TLS 1.2 encryption, making it a robust choice for modern access control needs.

PC Master Station for I X Series (Windows)

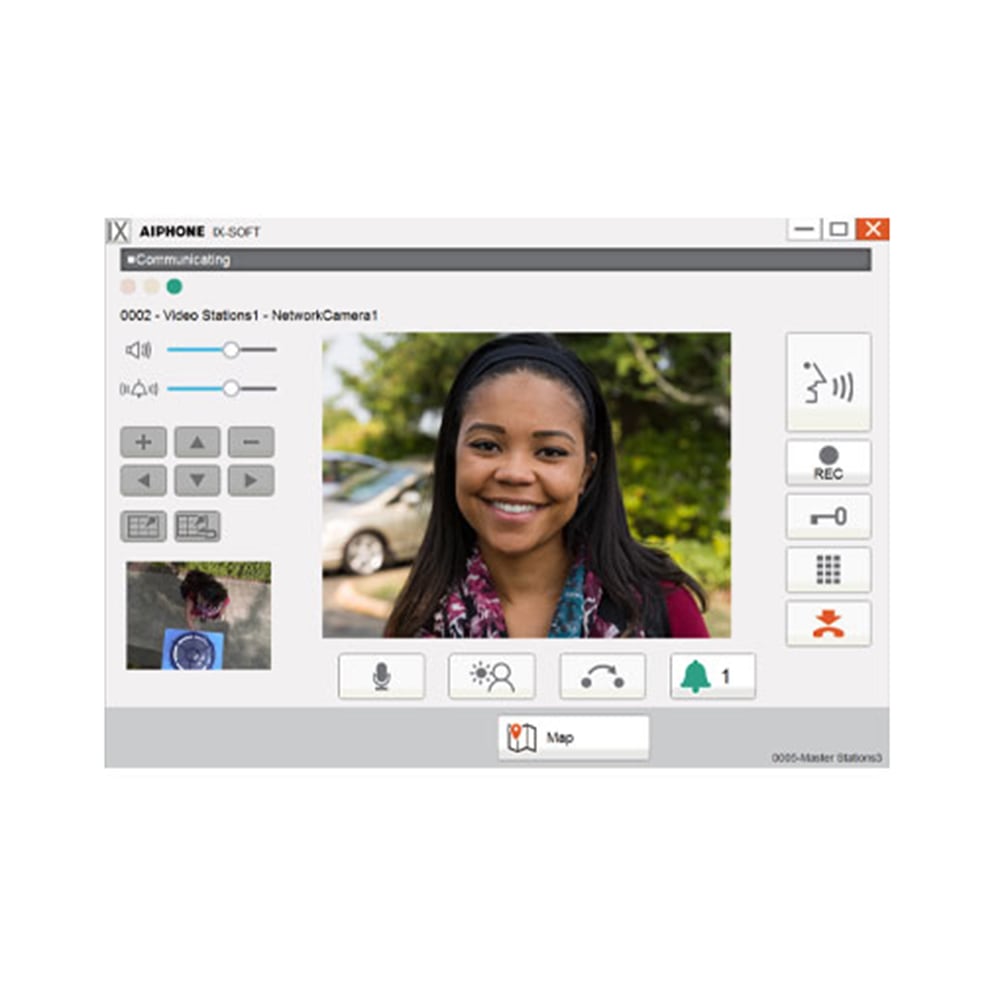

IX-SOFT is a software master station for the IX Series. Use IX-SOFT to call and communicate with IX Series stations across a network. Software master station Features include monitoring, paging, and door release. Check device functionality and network status of each station using the Line Supervision menu. Use the interactive map to quickly interact with door and master stations by selecting them individually or by dragging to select a group. IX-SOFT requires a single, transferable lifetime license per PC, with optional bundles available with 3, 5, or 10 IX-SOFT.

Features:

• Place and receive calls and pages.
• Monitor door stations.
• 50 programmable speed-dial buttons.
• Call history.
• Call transfer.
• Interactive map.
• Line Supervision.

Specifications:

• Video Codec: H.264/AVC, Motion-JPEG.
• Audio Codec: G.711 (μ-law, A-law), G.722.
• Protocol: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS.
• Encryption: TLS 1.2 (CRAM-MD5 for email).
• Packet Delivery: Unicast or Multicast.
• Station Capacity: 499 stations max. (9,998 max. in expanded mode).
• Video Streaming: ONVIF® Profile S.

System Requirements:

• Operating System: Windows® 7 Professional, Windows® 7 Enterprise, Windows® 7 Ultimate Windows® 8.1, Windows® 8.1 Pro, Windows® 8.1 Enterprise Windows® 10 Home, Windows® 10 Pro, Windows® 10 Enterprise, Windows® 10 Education.
• CPU: 32 bit (x86) processor or 64 bit (x64) processor, 2 GHz or higher (Windows® 7 is 64 bit only).
• Memory: 1GB or higher.
• Screen Resolution: 1024 x 768 or greater.
• Runtime: .NET Framework 4.6.2 or later (Windows® 7 requires SP1); Microsoft Visual C + + Redistributable Package for Visual Studio 2017 or later.
