Aiphone IX-SSA Aiphone Corporation

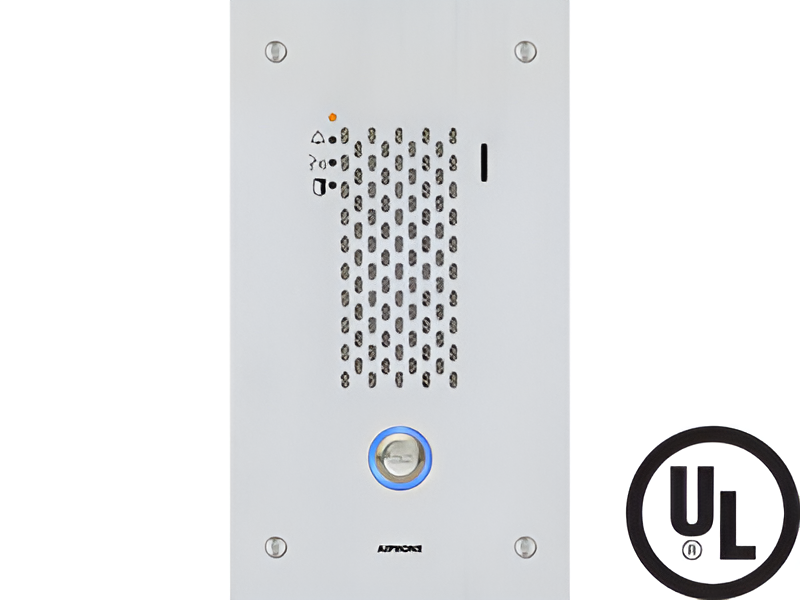

The IX-SSA is a flush mount IP audio door station. It is weather resistant (IP65) and connects to the network using Cat-5e/6 cable. It is SIP compliant and can be used with or without other IX Series stations. Audio can be captured on a microSD™ card. The station can be programmed to call up to 20 different stations with three different call levels to choose from.

Features:

• SIP 2.0 compliant.
• Illuminated call button indicator.
• Slot for microSD™ card (not provided by Aiphone).
• Weather and vandal resistant (IP65).
• 2 contact outputs.
• 6 trigger inputs.
• Stainless steel.
• 802.3af PoE compliant.
• RJ45 in/out with PoE pass through (802.3at Type 2 PoE+).

Specifications:

• Power Source: PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL).
• Power Draw: 3.36W
• Audio Codec: G.711 (μ-law, A law), G.722
• Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS.
• Port Security: IEEE 802.1X
• UL Listed: UL 62368-1; cUL 62368-1
• Operating Temp: - 40° ~ 140°F (- 40° ~ 60°C)
• Ingress Protection: IP65
• Impact Protection: IK08
• Dimensions (HxW): 10-7/16" x 5-7/8"

Features

• SIP 2.0 compliant.
• Illuminated call button indicator.
• Slot for microSD™ card (not provided by Aiphone).
• Weather and vandal resistant (IP65).
• 2 contact outputs.
• 6 trigger inputs.
• Stainless steel.
• 802.3af PoE compliant.
• RJ45 in/out with PoE pass through (802.3at Type 2 PoE+).
