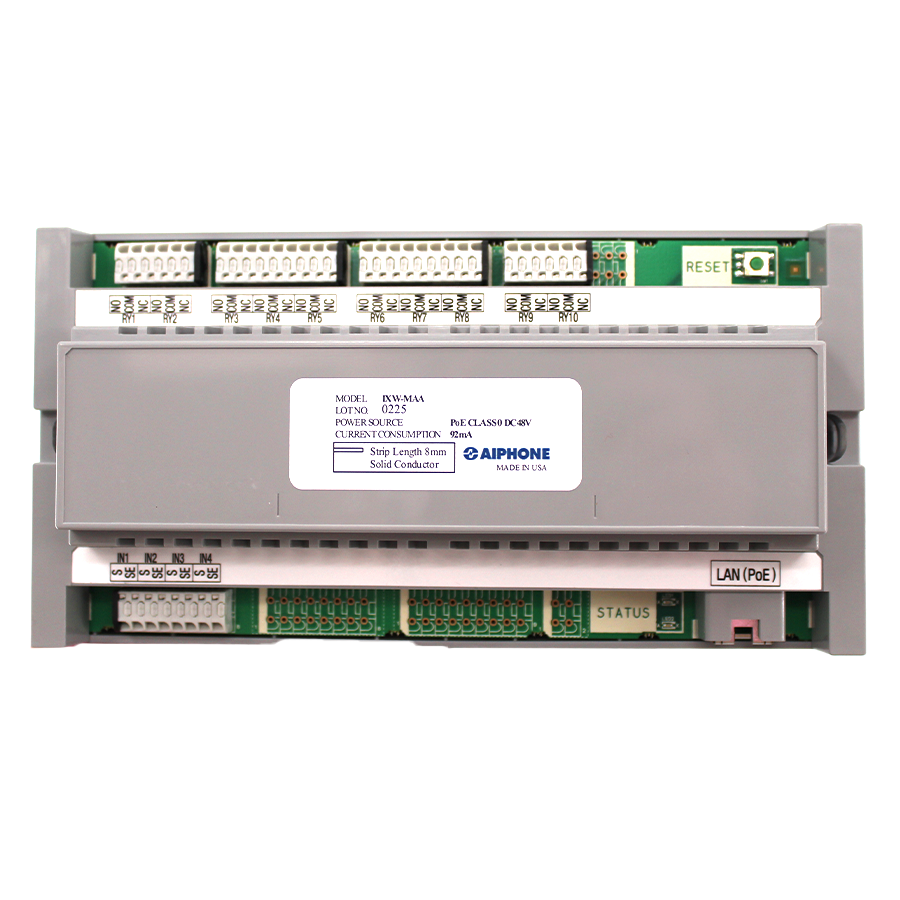

Aiphone IXW-MAA IP Relay Adaptor for IX Series (4 Inputs, 10 Outputs, PoE) with Mobile App

Aiphone Corporation IXW-MAA IP Relay Adaptor With Mobile App Server for IX Series offers advanced relay control for your security and intercom systems. This versatile adaptor features ten form C relay outputs, allowing you to manage and respond to changes at specific stations seamlessly. It is designed for easy installation, mountable on a 170mm DIN rail or directly to a wall, enhancing flexibility in various environments. Powered via Power Over Ethernet (PoE), the IXW-MAA draws a maximum of 4.48 Watts, ensuring efficient energy use while delivering reliable performance. Each relay output supports a 24V AC/DC 500mA rating, making it suitable for a range of applications. The device also includes Ethernet connectivity (10BASE-T, 100BASE-TX) and adheres to IEEE 802.1X port security standards, ensuring a secure network connection. With an operating temperature range of 14° to 122°F (-10° to 50°C), the IXW-MAA is built to withstand various conditions, making it an excellent choice for both commercial and residential settings. Its compact dimensions of 4-1/4" H x 8-1/4" W x 2-3/8" D allow for easy integration into existing systems. Upgrade your access control setup with the reliability and functionality of the Aiphone IXW-MAA.

IP Relay Adaptor With Mobile App Server for IX Series (4 Inputs, 10 Outputs, Power Over Ethernet)

The IXW-MAA is a multi-purpose adaptor with ten form C relay outputs. The relay outputs are assigned to a specific station and programmed to change state when relay output 1 or 2 on the associated station changes state.

Features:

• POE
• Ten Form C relay outputs
• 24V AC/DC 500mA relay contact rating
• Mountable to a 170mm DIN rail or directly to a wall

Specifications:

• Power Source: PoE (IEEE 802.3af class 0)
• Power Draw: 4.48 Watts (Max)
• Relay Output Method: 10 Form C Dry Relays
• Relay Output Rating: 24V AC/DC 500mA
• LAN: Ethernet (10BASE-T, 100BASE-TX)
• Port Security: IEEE 802.1X
• Operating Temp: 14° ~ 122°F (-10° ~ 50°C)
• Dimensions: 4-1/4" H x 8-1/4" W x 2-3/8" D
