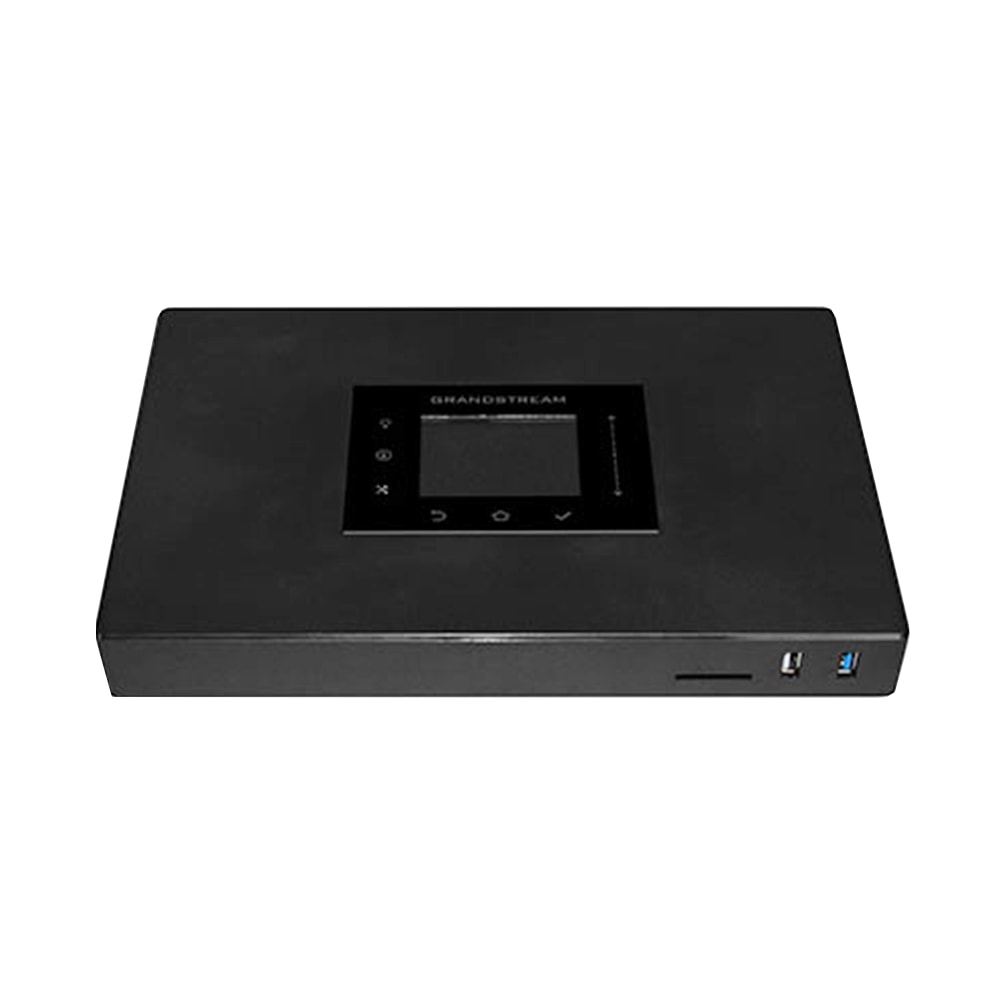

Aiphone IXW-PBXA IX Series IP PBX for 500 Users

Aiphone IXW-PBXA IP PBX for IX Series 500 Users offers a sophisticated communication solution tailored for mixed-use buildings and multi-tenant security applications. This network-based system enables seamless interaction among up to 500 users, making it ideal for both commercial and residential installations. Equipped with a variety of features, this system enhances security with video entry, internal communication, and emergency stations. Users can unlock doors remotely, assist visitors from offsite locations, and broadcast emergency announcements effortlessly via a Power over Ethernet (PoE) network. The 3.5" color LCD video display, combined with a 1/4" color CMOS camera, ensures clear visuals, while the ONVIF Profile S video streaming adds versatility. Communication options include hands-free (VOX), push-to-talk (simplex), or handset (full-duplex) modes. With a robust network protocol support including IPv4, IPv6, and SIP, the IXW-PBXA guarantees reliable connectivity. It also accommodates a range of bandwidth usages, ensuring efficient operation even during peak times. Installation is straightforward with CAT-5e or CAT-6 wiring, covering distances of up to 330 feet from the door station to the network node. The Aiphone IXW-PBXA is not just an intercom; it’s a comprehensive security solution that adapts to your needs.

IP PBX FOR IX SERIES 500 USERS

IP-PBX for IX Series, 500 Users

A sophisticated, yet simple way to connect a variety of mixed-use building, the IXG Series is a complete network-based communication solution with unlimited possibilities for any multi-tenant security application.

Features video entry security, internal communication, and emergency stations.

All units and apps in the systems can unlock doors remotely on a network, assist onsite visitors from an offsite location, broadcast emergency announcements, and communicate using a PoE network.

• Power Source: Power Over Ethernet (802.3af)
• Network Interface: 10 BASE‑T / 100 BASE‑TX Ethernet (RJ-45)
• Network Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP,
• RTP, RTCP, IGMP, MLD, SMTP, DHCP, NTP, DNS
• Bandwidth Usage: G.711: 64Kbps x 2 per call,; 64Kbps per station in paging group; H.264: 24Kbps ~ 2,048Kbps
• Communication: Hands‑free (VOX), push‑to‑talk (simplex), or handset (full-duplex)
• Video Display: 3‑1/2" color LCD
• Camera: Type: 1/4" color CMOS; View Area: 2'2" vert. x 3'1" horiz. at 20"
• Video Stream: ONVIF Profile S
• Door Release: Programmable Form C dry contact, 24V AC/ DC,; 500mA – use EL‑12S (use RY‑24L for larger contact rating, which requires 24V DC power supply) or use RY-IP44 with 4 multipurpose relays
• Wire Type: CAT‑5e or CAT‑6
• Distance: Door Station or RA Station to Network Node: 330', Master Station to Network Node: 330'
